Description

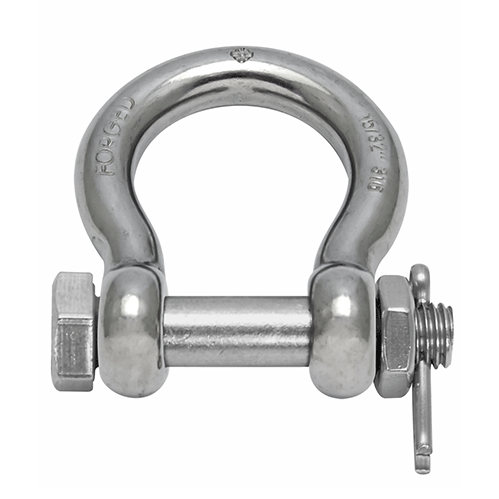

Bow Shackle with Bolt – Forged 316 Stainless Steel
This Forged Bow Shackle with bolt is offered in sizes ranging from 1/4″ to 3/4″. This bow shackle is made from grade 316 stainless steel for maximum corrosion resistance, which is ideal for marine and industrial application.

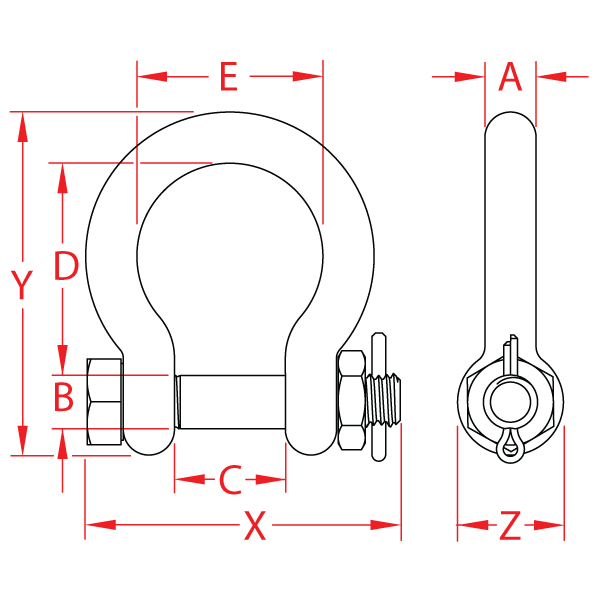

| ITEM | A (size) |
B | C | D | E | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| S0119-SA06 | 1/4″ | 0.23″ | 0.52″ | 0.93″ | 0.83″ | 1.37″ | 1.50″ | 0.47″ | 750 | 0.06 |
| S0119-SA08 | 5/16″ | 0.31″ | 0.66″ | 1.25″ | 1.11″ | 1.77″ | 2.05″ | 0.62″ | 1,200 | 0.14 |
| S0119-SA10 | 3/8″ | 0.39″ | 0.83″ | 1.57″ | 1.28″ | 2.20″ | 2.52″ | 0.78″ | 2,000 | 0.26 |
| S0119-SA12 | 15/32″ | 0.47″ | 0.98″ | 1.94″ | 1.50″ | 2.63″ | 3.07″ | 0.94″ | 3,000 | 0.46 |
| S0119-SA16 | 5/8″ | 0.62″ | 1.31″ | 2.49″ | 2.20″ | 3.40″ | 3.93″ | 1.20″ | 4,000 | 1.09 |
| S0119-SA20 | 3/4″ | 0.77″ | 1.62″ | 3.10″ | 2.55″ | 4.30″ | 5.13″ | 1.57″ | 5,500 | 2.31 |
