Description

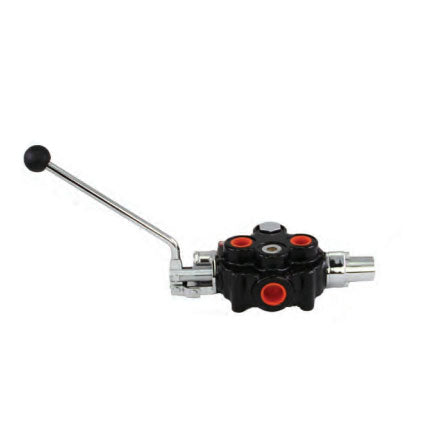

One spool, Tandem center 4-way Rotary Friction detent, Rotary Handle, Area differential relief cartridge.
18 gpm (68.0 lpm) Nominal
Capacity.
• Rated up to 3000 psi (207 bar).
• Port Sizes:
-Inlet/Outlet #12 SAE.
-Work Ports #10 SAE.
• 10 Micron Filtration
Recommended.
• Weight:
-TS1 = 9 lbs. (4.1 kg).
-TS2 = 14 lbs. (6.4 kg).
-TS3 = 20 lbs. (9.1 kg).
See Catalog
See Catalog
