Description

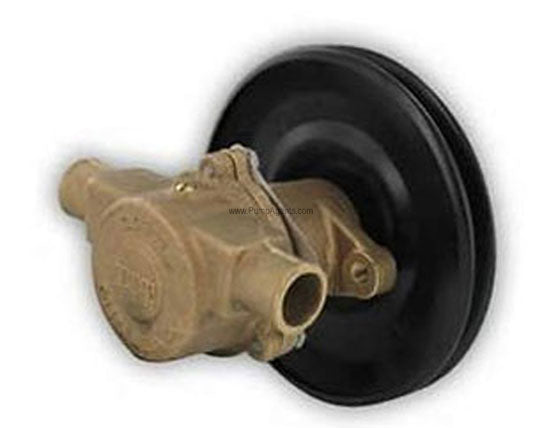

Pump has a nominal flow rate of 8.9 gallons/min (40 Litres/min) at 1500rpm and is self-priming from dry up to 2.4m (7.8ft). Pump will produce suction lift of up to 22 feet (6.7m) when wet. Be sure suction lines are airtight or pump will not self-prime. This pump is designed for liquids between 45 degrees and 180 degrees F. Pumping colder water will shorten impeller life. The pump may be mounted in any position. The direction of rotation of the pump determines the location of the intake and discharge ports. Before installing, rotate the pump shaft in the direction of normal operating rotation. The mounting bracket used to support the pump must be designed to enable adjustment of the pump position for proper drive belt tension. 6-1/2 Inch A belt pulley.
Features :
Pump Body: Bronze
Impeller: Neoprene
Shaft Seal: Carbon/Ceramic Mechanical Seal
Port Size: Ports are 1 Inch ID Hose
Specs :
8.9 GPM .
Self-priming from dry up to 2.4m.
Mechanical seal.
Marine quality bronze and stainless steel.
Easy to service and maintain.
Will tolerate abrasive wear.
Handles hard and soft solids without clogging.
Can pump in either direction.
Will not airlock.
