Description

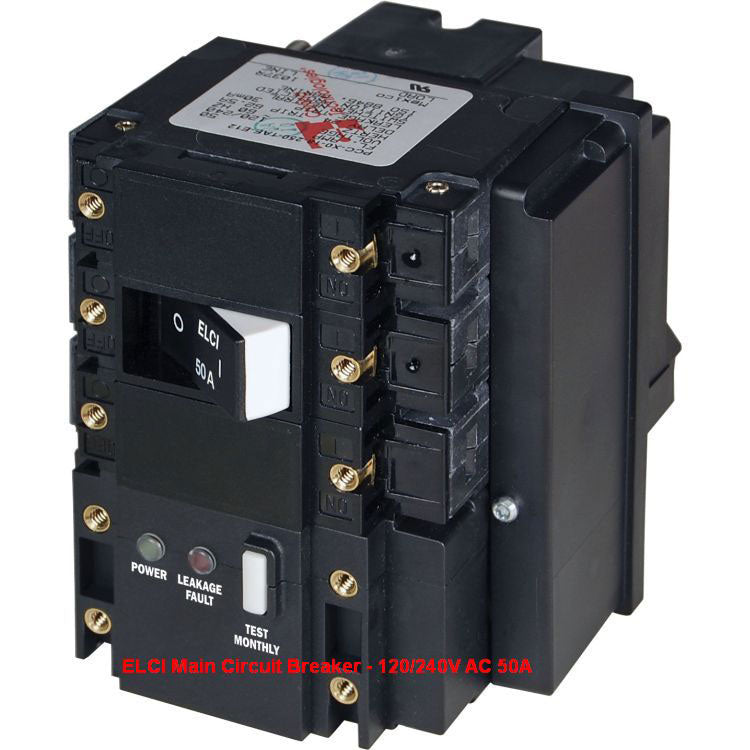

Blue Sea Systems A- & C-Series Single & Multi-Pole 240 Volt AC ELCI Main and GFCI Branch Circuit Breakers, Flat Rocker.
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount„installed in a power distribution panel
- Nominal Voltage: 240 Volt AC per pole
- Interrupt Rating: 5,000A AC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Operating Temperature Range: -35 Deg. C to +66 Deg. C
- Rated Switch Cycles: 10,000@rated amperage and voltage
- Mounting Screw: #6-32 - Recommended torque 6_8 in-lb
- Hardware: #10-32 x 1/4" SS SEM external tooth lock washer - Recommended torque 14_15 in-lb
Residual Current Devices (RCDs) respond to leakage of electrical current outside of theintended circuit path. When the RCD function is combined with a circuit breaker for over currentprotection, the device is often referred to as an RCBO. In the USA, a device that trips on leakagesof nominally 5mA and meets certain standards is called a Ground Fault Circuit Interrupter(GFCI). A device meeting the same standards but with a trip level of 30mA is called an EquipmentLeakage Circuit Interrupter (ELCI). These devices provide GFCI Branch or ELCI Main functions and circuit protection in panel mounted breakers.
| Specifications | |
|---|---|
| Amperage | 50A |
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 120V AC per pole 240V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35° C |
| Maximum Operating Temperature | 66° C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 1.20lb (0.54 kg) |
