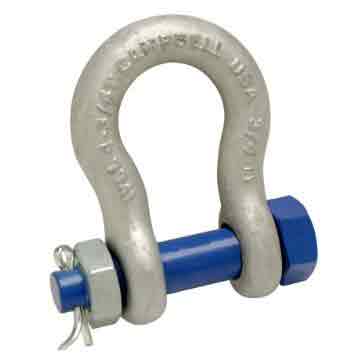

Campbell Bolt Type Anchor Shackle, Forged Carbon Steel - 3/4", 7/8"
Campbell Bolt Type Anchor Shackle, Forged Carbon Steel - 3/4", 7/8"
Roll over image to zoom in Click on image to zoom
Campbell Bolt Type Anchor Shackle, Forged Carbon Steel - 3/4", 7/8"Campbell Bolt Type Anchor Shackle, Forged Carbon Steel - 3/4", 7/8"

Campbell Bolt Type Anchor Shackle, Forged Carbon Steel - 3/4", 7/8"

Campbell Fittings, Inc.SKU: 566318-3/4"
MPN: 5391235 | Catalog No: CPR5391235
In Stock - Ships out in 1 Business Day

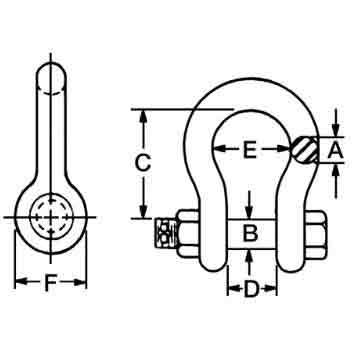

Working Load Limit Short Ton: 4-3/4 T | B Dimension: 7/8 in. | C Dimension: 2-13/16 in. | D Dimension: 1-1/4 in. | E Dimension: 1-13/16 in. | F Dimension: 1-3/4 in.
Size: 3/4"
Price:
$55.50

Description

Features
Anchor Shackle, Bolt Type, Forged Carbon Steel, Galvanized
  • Shackle Bodies Are Drop-Forged Carbon Steel
  • Galvanized to Meet ASTM A-153 Specifications
  • C-999-G Shackles Meet the Design Requirements of Federal Specification RR-C-271, Type IVA, Grade A, Class 3
  • Working Load Limit, Size, Manufacture Name, Date Code and USA Permanently Marked on Each Shackle
  • 999 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 ”Rigging Hardware”. These Include the Material Ductility Requirement (Section 26-1.1.2), the Design Factor Requirement (Section 26.1.2), the Identification Requirement (Section 26-1.5.1), and the Effective Temperature Range (Section 26-1.6.1). the Shackles Can Be Proof Tested in Accordance with Section 26-1.4
  • Certification Available Upon Request
  • 6 to 1 Design Factor on Shackles 1/4" to 2" 5 to 1 Design Factor on 2-1/2"
  • Pins and Bolts Are Heat-Treated and Made of Alloy Steel
  • DO NOT EXCEED THE WORKING LOAD LIMIT
Length Tolerance (+/-) 1/4 in
Width Tolerance (+/-) 1/8 in
