Description

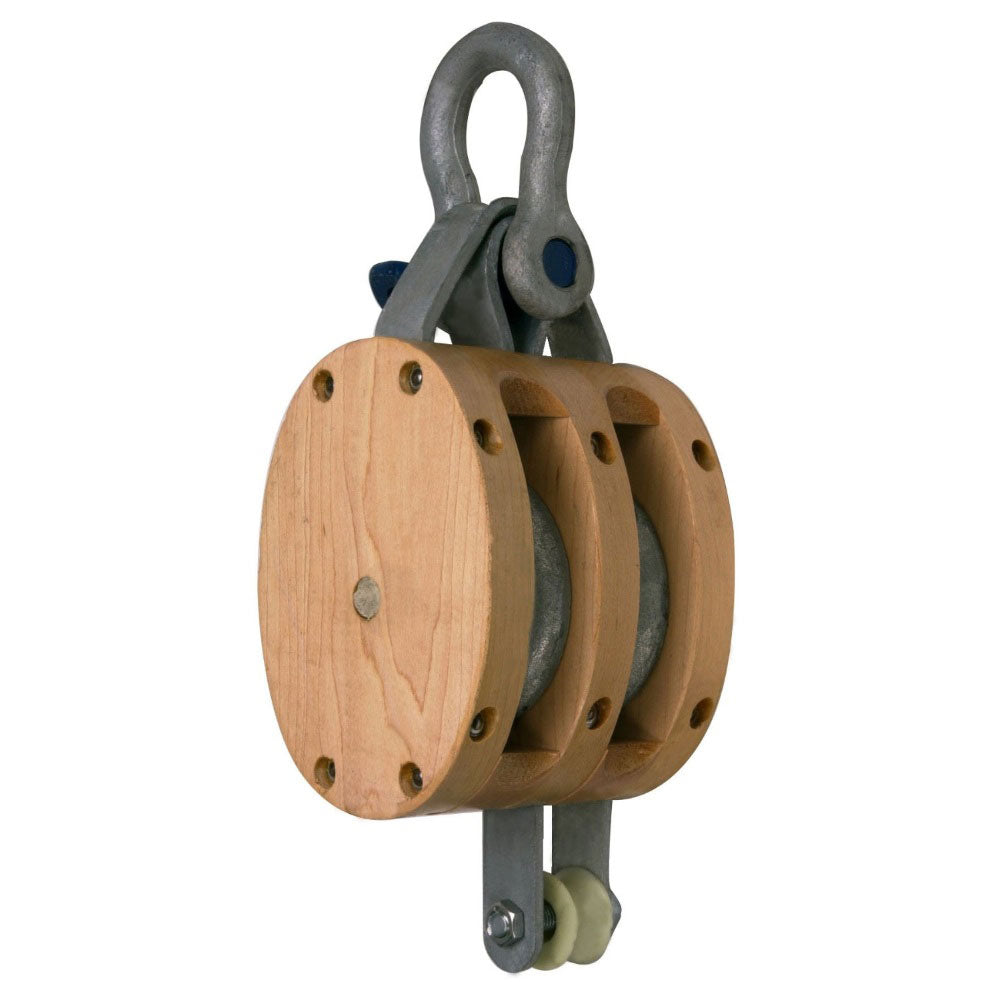

Campbell Double Wood-Shell Block
Features:
Hard Wood Shells
Model 3002 Double Sheave
Drop Forged Fittings
Screw Pin Anchor Shackle "K" Fittings
Bronze Self-Lubricating Bushings
Galvanized Metal Parts
Made in USA
Working Loads are Resultant Working Loads
Specifications:
4" - p/n 7206935
Block Size: 4 inch
Rope Diameter: 1/2 inch
Sheave Size - OD: 2-1/4 in
Sheave Size - Rim Thickness: 5/8 in
Sheave Size - Center Pin Diameter: 3/8 in
Working Load Limit: 1400 lb
Weight Each (lbs.): 3.00 lb
5" - p/n 7207035
Block Size: 5 inch
Rope Diameter: 5/8 inch
Sheave Size - OD: 3 in
Sheave Size - Rim Thickness: 3/4 in
Sheave Size - Center Pin Diameter: 3/8 in
Working Load Limit: 1800 lb
Weight Each (lbs.): 4.0 lb
6" - p/n 7207135
Block Size: 6 in
Rope Diameter: 3/4 in
Sheave Size - OD: 3-1/2 in
Sheave Size - Rim Thickness: 1 in
Sheave Size - Center Pin Diameter: 1/2 in
Working Load Limit: 2500 lb
Weight Each (lbs.): 6.50 lb
Features:
Hard Wood Shells
Model 3002 Double Sheave
Drop Forged Fittings
Screw Pin Anchor Shackle "K" Fittings
Bronze Self-Lubricating Bushings
Galvanized Metal Parts
Made in USA
Working Loads are Resultant Working Loads
