Description
Features

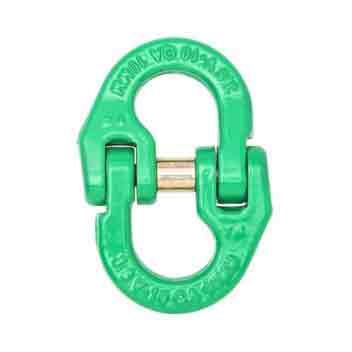

3/8" Quik-Alloy® Coupling Link, Grade 100, Painted Green
- For Connecting Chain to Components in the Fabrication of Chain Slings
- For Use with Grade 80/100 Chain Slings
- 4 to 1 Design Factor
- Meet or Exceed All Requirements of ASME B30.9
- 100% Proof Tested in Accordance with ASTM A952
- 3/4" Through 1-1/4" Coupling Links Utilize A Barrel Style Oversized Retainer
- Made in the USA
- Per ASME B30.9, Section 9.1.3 "Mechanical Coupling Links Shall Not Be Used Within the Body of An Alloy Chain Sling to Connect Two Pieces of Chain"
- DO NOT EXCEED THE WORKING LOAD LIMIT
| Chain Size | 3/8 in |
| Grade | 100 |
| Material Diameter | 15/16 in |
| Working Load Limit | 8800 lb |

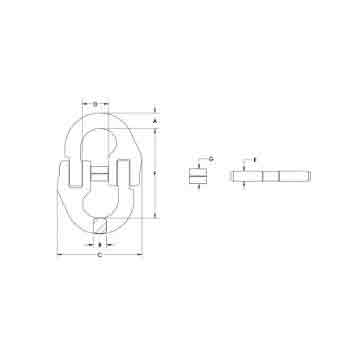

| A Dimension | 1/2 in |
| B Dimension | 7/16 in |
| C Dimension | 2-3/8 in |
| D Dimension | 13/16 in |
| E Dimension | 5/16 in |
| F Dimension | 2-3/4 in |
| G Dimension | 7/16 in |
| Weight Each (lbs.) | 0.69 lb |
| Made in USA | Yes |
