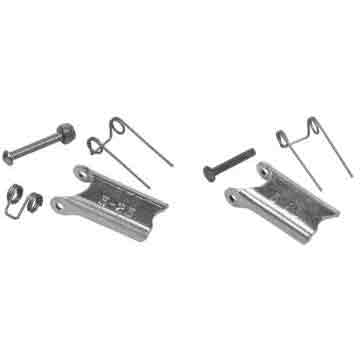

Replacement Latch Kit, For Hook Sizes 2-22 (1/4")
- Always Inspect the Hook and Latch Before Using
- Always Make Sure the Spring Forces the Latch Against the Point of Hook
- Check the Load Before Lifting to Make Sure the Hook (Not the Latch) is Supporting Load
- To Assemble Latch on Hook, Follow Instructions Supplied with Latch Kit
- Clapper Latches Are Zinc Plated
- Spring Spacer Adapts Latch to Hooks with Narrow Cam
- Bolt and Nut Permit Fast, Easy Installation
- Note: Latches Listed on This Page Cannot Be Used on Campbell'S Current Design of Integrated Sling and Hoist Hooks.
- Please Refer to the Appropriate Catalog Pages for These Hooks for Proper Replacement Latch Kits.

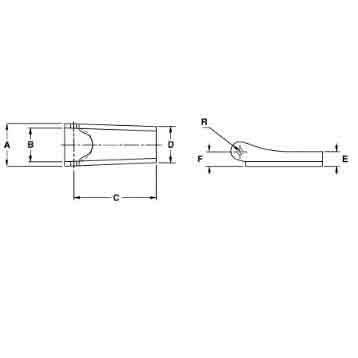

| Hook Size | 1/4 in |
| Size No. | 2-22 |
| A Dimension | 23/32 in |
| B Dimension | 9/16 in |
| C Dimension | 1-1/4 in |
| D Dimension | 5/8 in |
| E Dimension | 1/4 in |
| F Dimension | 1/4 in |
| R Dimension | 5/32 in |
| Weight Each (lbs.) | 0.04 lb |
