Description

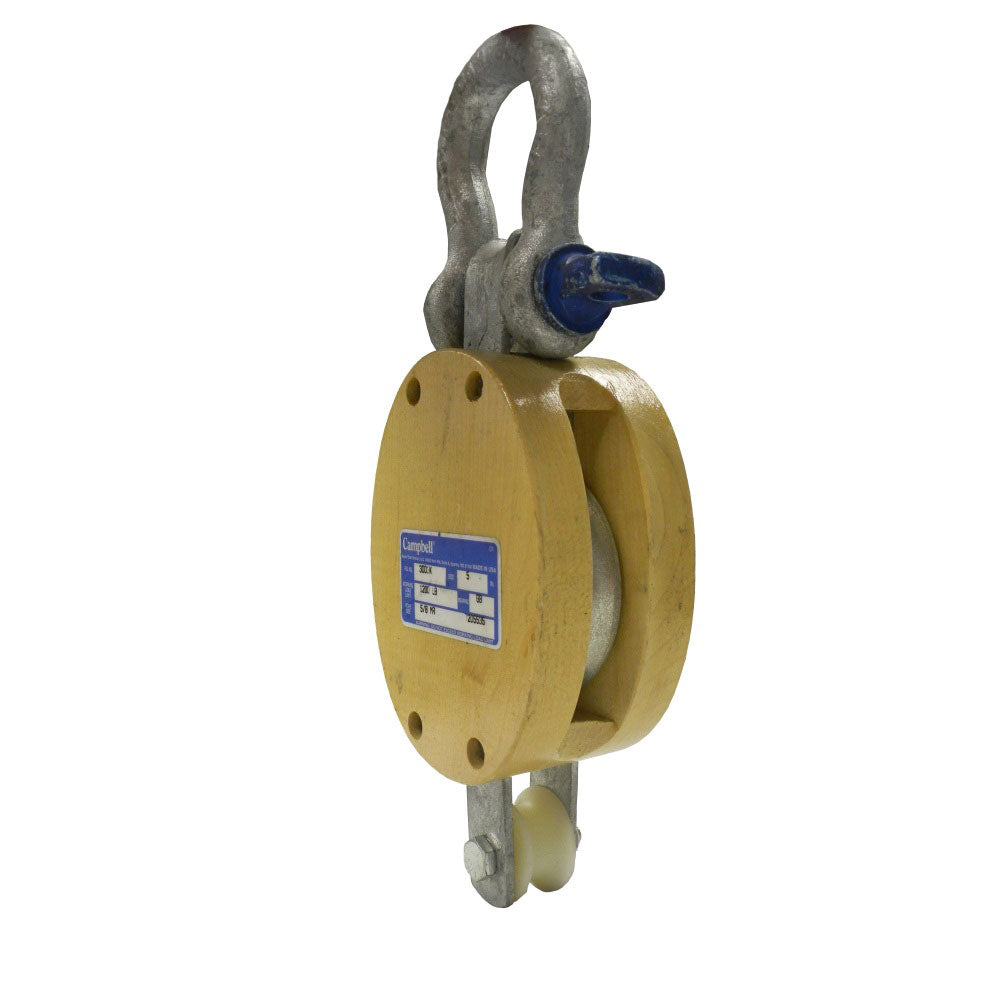

Campbell Single Wood-Shell Block
Features:
Hard Wood Shells
Model 3001 Single Sheave
Drop Forged Fittings
Screw Pin Anchor Shackle "K" Fittings
Bronze Self-Lubricating Bushings
Galvanized Metal Parts
Made in USA
Working Loads are Resultant Working Loads
Specifications:
4" - p/n 7205435
Block Size: 4 inch
Rope Diameter: 1/2 inch
Sheave Size - OD: 2-1/4 in
Sheave Size - Rim Thickness: 5/8 in
Sheave Size - Center Pin Diameter: 3/8 in
Working Load Limit: 1000 lb
Weight Each (lbs.): 2.00 lb
5" - p/n 7205535
Block Size: 5 inch
Rope Diameter: 5/8 inch
Sheave Size - OD: 3 in
Sheave Size - Rim Thickness: 3/4 in
Sheave Size - Center Pin Diameter: 3/8 in
Working Load Limit: 1200 lb
Weight Each (lbs.): 2.50 lb
6" - p/n 7205635
Block Size: 6 in
Rope Diameter: 3/4 in
Sheave Size - OD: 3-1/2 in
Sheave Size - Rim Thickness: 1 in
Sheave Size - Center Pin Diameter: 1/2 in
Working Load Limit: 1800 lb
Weight Each (lbs.): 4.00 lb
8" - p/n 7205835
Block Size: 8 in
Rope Diameter: 1 in
Sheave Size - OD: 4-3/4 in
Sheave Size - Rim Thickness: 1-1/8
Sheave Size - Center Pin Diameter: 5/8 in
Working Load Limit: 2800 lb
Weight Each (lbs.): 9.50 lb
Features:
Hard Wood Shells
Model 3001 Single Sheave
Drop Forged Fittings
Screw Pin Anchor Shackle "K" Fittings
Bronze Self-Lubricating Bushings
Galvanized Metal Parts
Made in USA
Working Loads are Resultant Working Loads
Specifications:
4" - p/n 7205435
Block Size: 4 inch
Rope Diameter: 1/2 inch
Sheave Size - OD: 2-1/4 in
Sheave Size - Rim Thickness: 5/8 in
Sheave Size - Center Pin Diameter: 3/8 in
Working Load Limit: 1000 lb
Weight Each (lbs.): 2.00 lb
5" - p/n 7205535
Block Size: 5 inch
Rope Diameter: 5/8 inch
Sheave Size - OD: 3 in
Sheave Size - Rim Thickness: 3/4 in
Sheave Size - Center Pin Diameter: 3/8 in
Working Load Limit: 1200 lb
Weight Each (lbs.): 2.50 lb
6" - p/n 7205635
Block Size: 6 in
Rope Diameter: 3/4 in
Sheave Size - OD: 3-1/2 in
Sheave Size - Rim Thickness: 1 in
Sheave Size - Center Pin Diameter: 1/2 in
Working Load Limit: 1800 lb
Weight Each (lbs.): 4.00 lb
8" - p/n 7205835
Block Size: 8 in
Rope Diameter: 1 in
Sheave Size - OD: 4-3/4 in
Sheave Size - Rim Thickness: 1-1/8
Sheave Size - Center Pin Diameter: 5/8 in
Working Load Limit: 2800 lb
Weight Each (lbs.): 9.50 lb
