Description

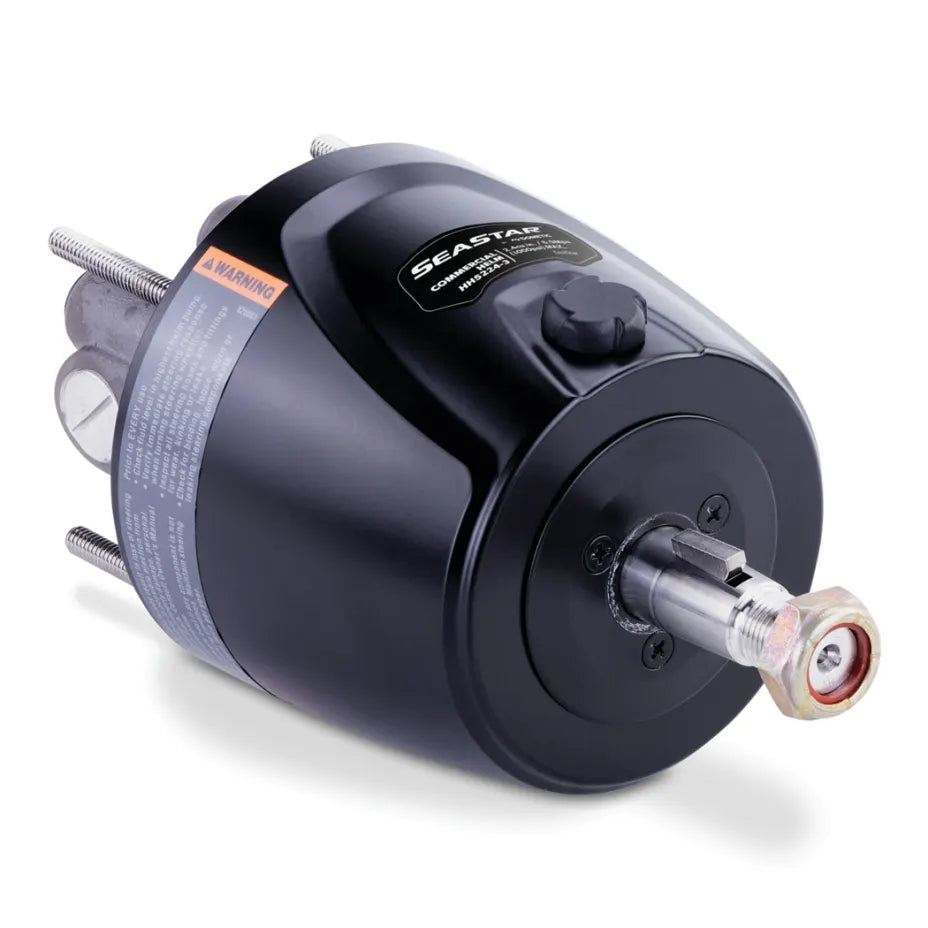

SeaStar Solutions - HH5224-3 Front Mount 2.4 Commercial Hydraulic Boat Steering Helm Pump
(Replaces HH5224 - Updated ORB fittings)
The world's most popular hydraulic boat steering helm (HH52243) offers smooth, efficient no feedback steering for inboard and outboard applications.
Applications:
Most Hydraulic Steering applications for inboard/sterndrive/outboard boats up to 50ft.
Single outboard engine boats that travel up to 55MPH, for boats over 55MPH see SeaStar PRO Steering.
Capable to be used in multiple stations.
Features:
Stainless Steel Shaft
Improved Front shaft dust over
Compact helm
Standard 3/4" tapered steering shaft
Accepts wheels up to 28"
Small 3.0" Hole cutout in dash
Specification:
Front Mount Installation
2.4 cubic inches
1000 PSI Relief Valve Settings
What Comes In The Box:
HH5224-3 Helm Pump
Mounting Hardware
HF6004 Fitting Kit 2x ORB-5 90° Re-Positionable elbow fittings
