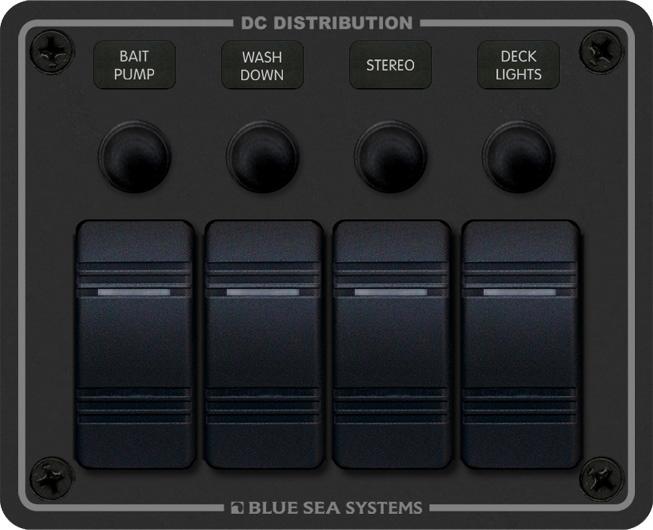

Description
- Designed for flybridge and open cockpit applications
- Panel front is rated IP66-Protected against powerful water jets
- Ignition protected-safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push Button Reset-Only circuit breakers with waterproof boots
- Meets UL 1500 and ISO 8846 ignition protection requirements
- Countersunk mounting holes throughout
- Heavy 1/8" aluminum material, two-part polyurethane white or black finish
- MIL-C-5541C immersion undercoating for lifetime corrosion resistance
- Completely wired and ready to install
- Includes set of 60 common DC labels
- Waterproof panel labels are not backlit
- Dimensions: 5.25" (133.35 mm) W x 4.25" (107.95 mm)H
- Maximum Voltage: 24 Volt DC
- Circuit Breaker Rating: 15 Amp
- Panel Cumulative Rating: 45 Amp
- Fuse Holder Rating: 20 Amp maximum
- Switch LED Amperage Draw: 18 mAmp each
- Switch Rating: 20 Amps@12 Volts DC, 15 Amps@24 Volts DC
