Description
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose wash downs, momentary immersions

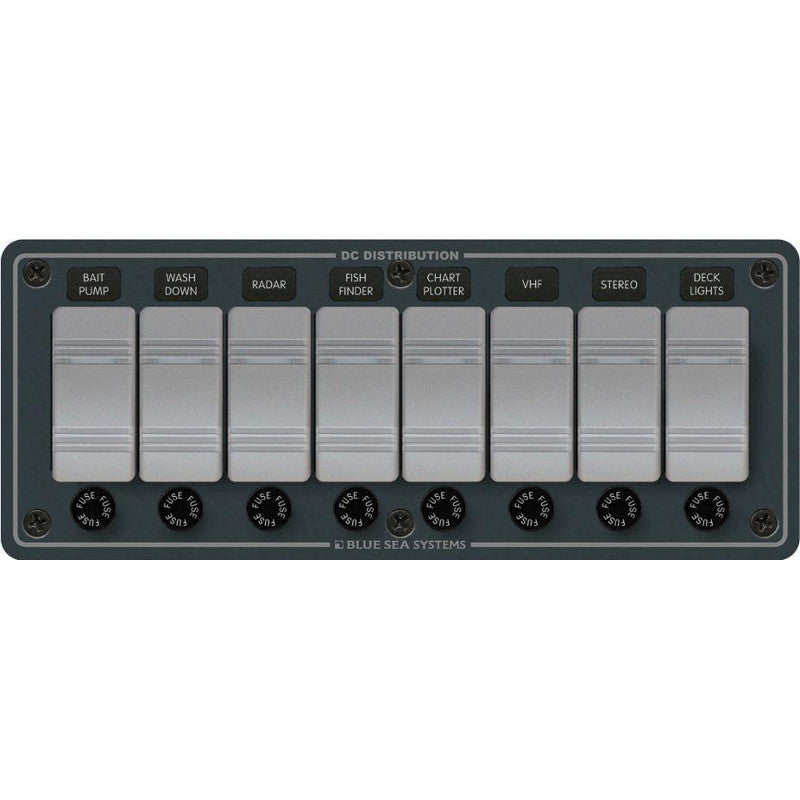

- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Watertight mounting gasket included
- Countersunk mounting holes throughout
- Heavy 1/8" aluminum material
- Two-part polyurethane slate gray finish
- Industry standard height and width
- Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
- Completely wired and ready to install
- Includes set of common DC labels
Fuse Holder Rating: 20 Amperes maximum (15 Ampere fuses included)
Maximum Voltage Rating: 24 Volts DC
Weight Lb (Kg): 1.40 (0.64)
Voltage: 12 or 24 Volts DC
Panel Cumulative Rating: 45 Amperes
Switch Rating: 20 Amperes@12 Volts DC, 15 Amperes@24 Volts DC
Width: 9.37" (238.00mm)
Height: 3.75" (95.25mm)
