Dexter Axle 49544 2" Square Galvanized Trailer Axle, 2000 lb.
Roll over image to zoom in Click on image to zoom
Dexter Axle 49544 2" Square Galvanized Trailer Axle, 2000 lb.

Dexter Axle 49544 2" Square Galvanized Trailer Axle, 2000 lb.

DEXTER AXLESKU: 570282
MPN: 49544
In Stock - Ships out in 1 Business Day
Bearings: 1-1/16" | Capacity: 2000 lb | Description: 71" Hub Face, 56-61" Spring Center
Price:
$157.24

Description

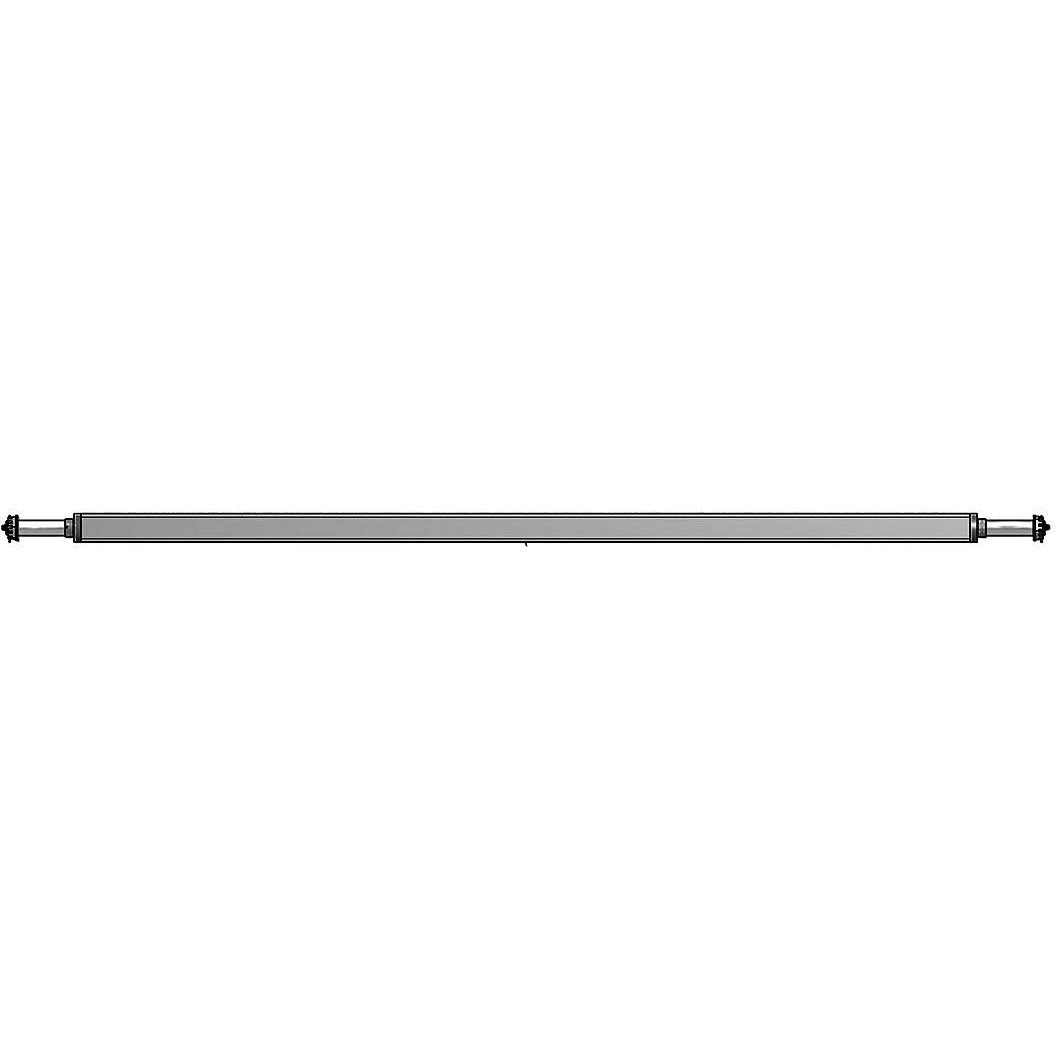

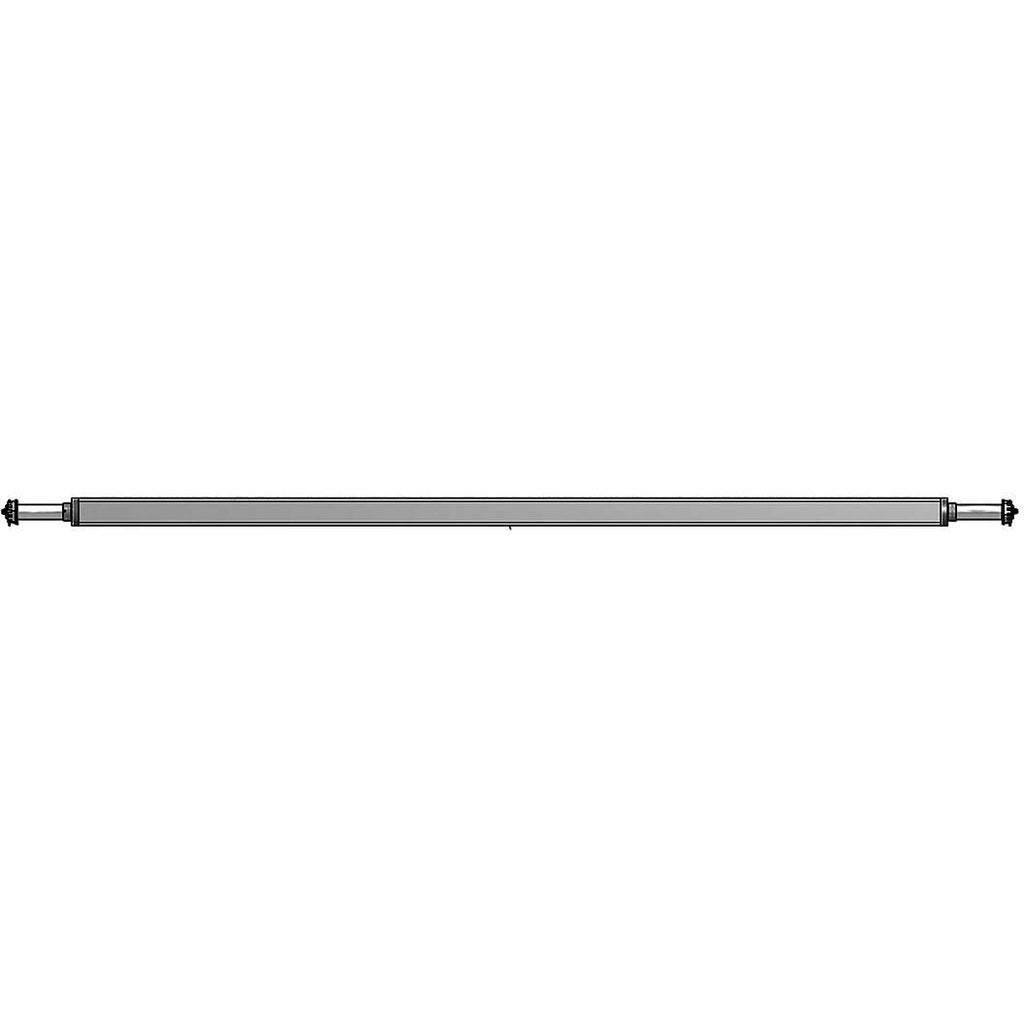

Dexter Axle 49544 2" Square Galvanized Trailer Axle, 2000 lb. is a 2" x 2" square tube Galvanized finish 1.0 Degree Camber per side welded at spindles. No spring holes, you must drill 9/16" holes or use adjustable spring mounts. Spindle has stainless steel wear sleeve. Axle comes with washers, castle nuts and cotter pins.

Product Specifications:

  • Capacity: 2,000 lbs.
  • Hub Face Measurement: 71"
  • Overall Length: 75.5"
  • Beam Size: 2" x 2" square
  • Spring Center Range: 56" - 61"
  • Spindle Size: 1 1/16" straight
Hardware Information:
  • Inner/Outer Bearing: 44649 (1 1/16" inner diameter) (sold separately)
  • Race: 44610 (sold separately)
  • Grease Seal Inner Diameter: 1.25"
