Description

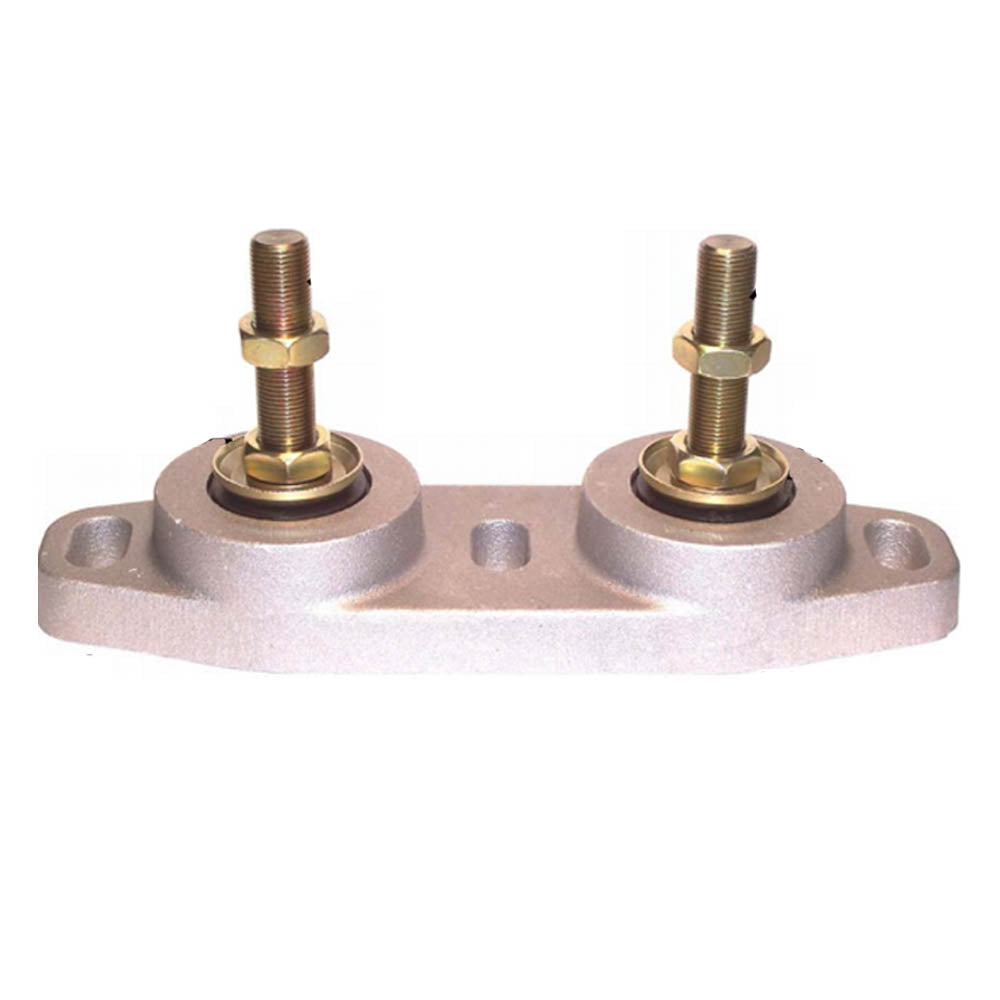

DF-242 & DF-245 Dual-Flex Marine and Industrial Engine Mounts give marine users a true flexible engine mount that withstands temperature extremes, exposure to salt, oil & grease while providing soft cushioning under normal loads and increased resistance as loads increase with minimal deflection.
- No metal-to-metal contact at any point over the weight range potential eliminating any danger of excessive impact
- Aluminum 356-T6 casting
- All steel parts are zinc dichromate plated
- Weight limits
- 3: 2,200 to 2,600 lbs.
- DF-245: 3,200 to 3,500 lbs.
- Slotted casting for horizontal adjustment
- Dual zinc dichromate plated studs on 5-1/2" centers with 3/4"-16 threads
- 5" overall height
- 2-5/8" minimum clearance
- 12" overall width, 3-3/8" depth
- Three mounting holes on 5-1/4" centers for 5/8" bolts or lag screws
