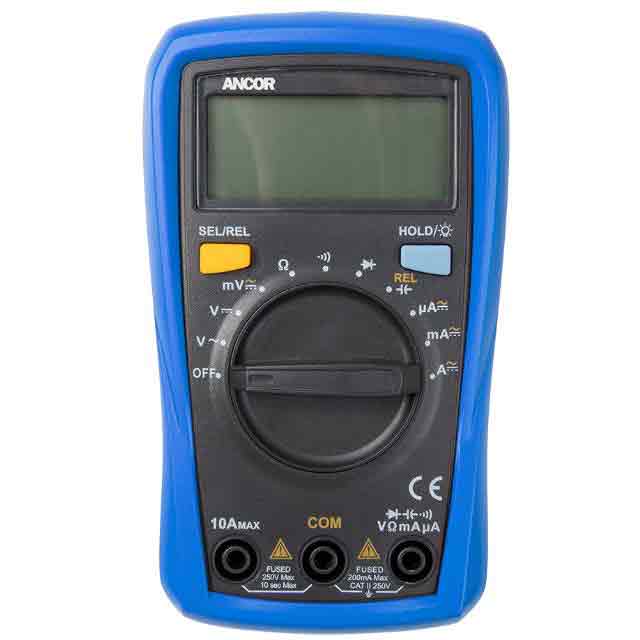

8 Function Digital Multimeter
- Auto ranging capability allows the meter to automatically determine the resolution based on the application
- Clear LCD display
- Lightweight, ergonomic design
- Comfortable protective cover, with test lead hanging groove
- Loud buzzer sound
- Batteries: two AAA Batteries (not included)
| Specifications | Range | Accuracy |
| DC Voltage | 200.0mV, 2000mV/2.000V, 20.00V, 200.0V, 250V |
200.0mV, 20.00V, 200.0V, 250V (0.7% + 3) 2000mV/2.000V (0.5% + 2) |
| AC Voltage | 200.0mV, 2000mV/2.000V, 20.00V, 200.0V, 250V |
200.0mV, 20.00V (1.0% + 2) 2000mV/2.000V (0.7% + 3) 200.0V, 250V (1.2% + 3) |
| DC Current (A) | 200.0µA, 2000µA, 20.00mA, 200.0mA, 2.000A, 10.00A |
200.0µA, 2000µA, 20.00mA, 200.0mA (1.0% + 2) 2.000A, 10.00A (1.2% + 5) |
| AC Current (A) | 200.0µA, 2000µA, 20.00mA, 200.0mA, 2.000A, 10.00A |
200.0µA, 2000µA, 20.00mA, 200.0mA (1.2% + 3) 2.000A, 10.00A (1.5% + 5) |
| Resistance | 200.0 2000/2.000k, 20.00k, 200.0k, 20.00M, 200.0M |
200 (1.0% + 2) 2000/2.000k, 20.00k, 200.0k (0.8% + 2) 20.00M (1.2% + 3) 200.0M (5.0% + 10) |
| Capacitance (F) | 2.000nF, 20.00nF, 200.0nF, 2.000µF, 20.00µF, 200.0µF, 2.000mF |
2.000nF (REL Mode: 5.0% + 5) 20.00nF, 200.0nF, 2.000µF, 20.00µF, 200.0µF (4.0% + 8), 2.000mF (10%) |
| Overload Protection | 250V rms | |
| CAT Rating | CAT II 250V |
