Description

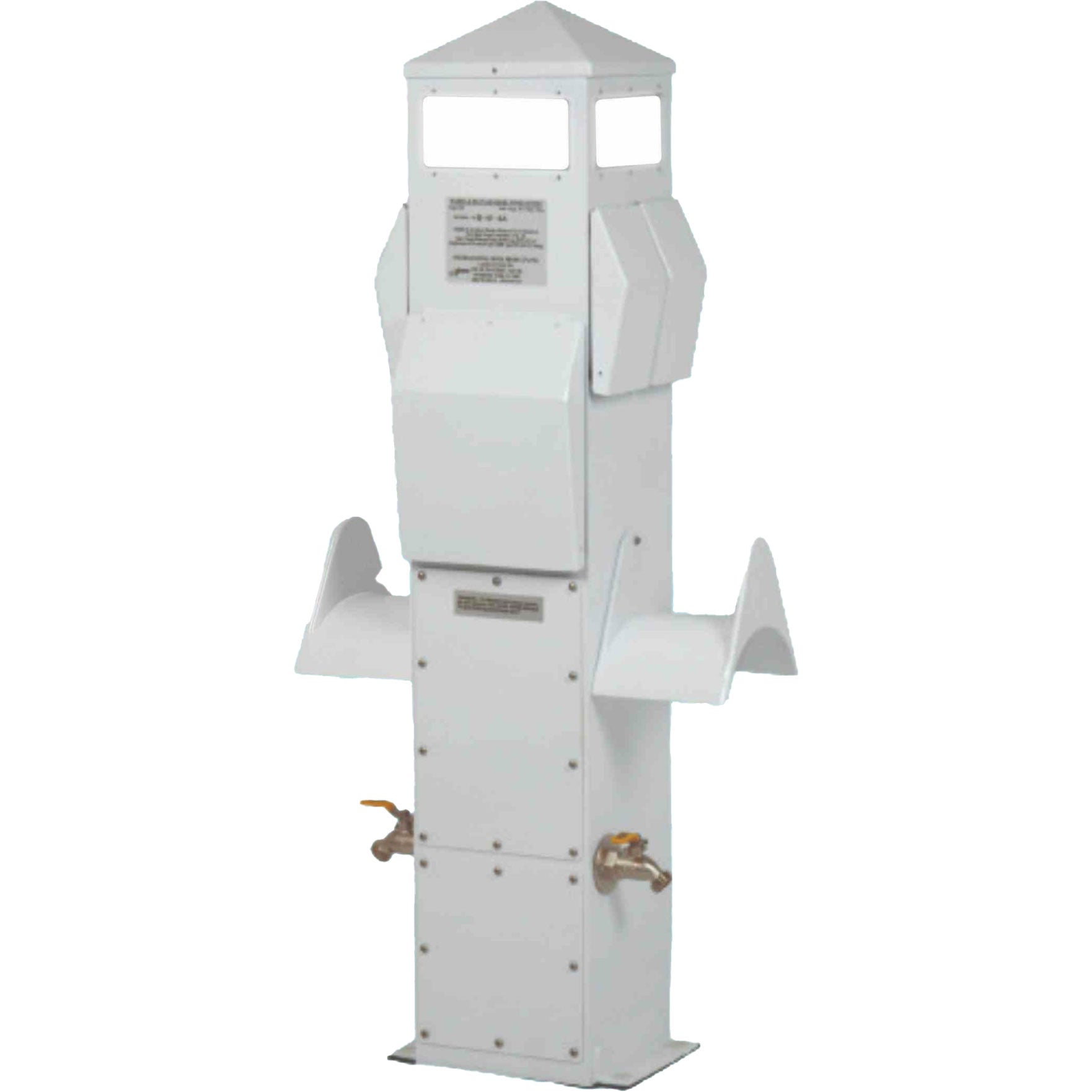

Dock Mount Electrical Power Pedestal with LED Light 41″ 2 50amp and 2 30 amp
RECEPTACLES PROTECTED BY INDIVIDUAL SQ-D CIRCUIT BREAKERS

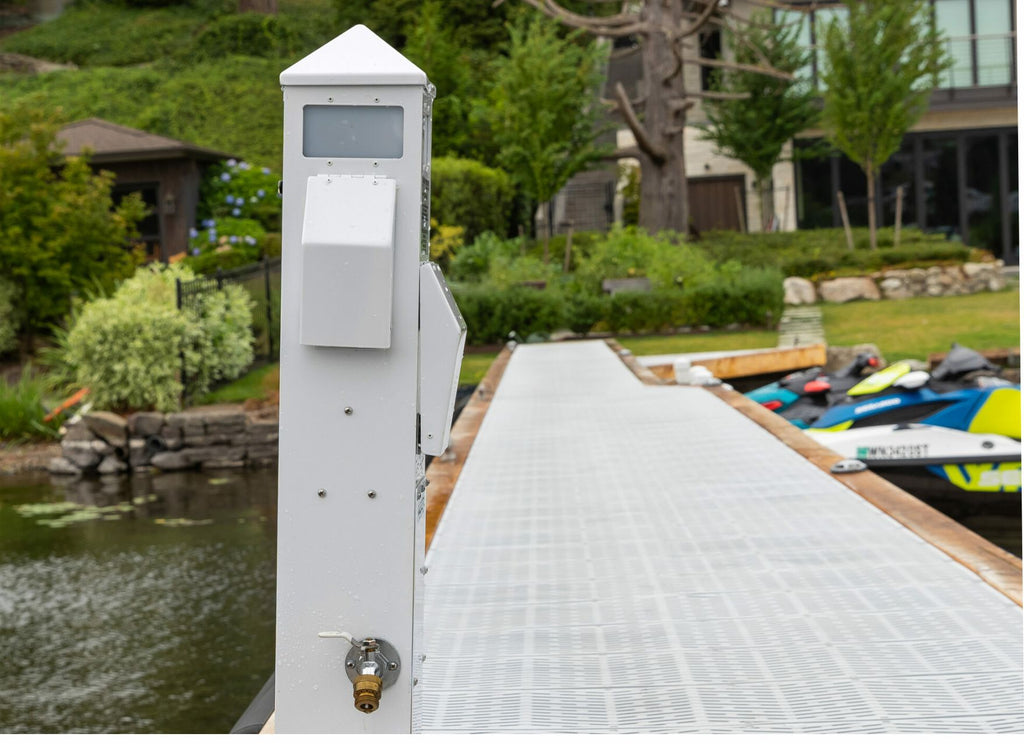

The 41” pedestal (SPB-41) is designed to be mounted vertically on the dock. The wider profile accommodates 100 Amp single and three phase for larger boats, standard outlets and all our accessories and meters. A great choice for marinas the SPB-41 ‘A’ series comes with outlets mounted at a 45 degree down angle with aluminum powder coated covers to match the pedestal.
Spec Sheet with Mounting DiagramDimensions: 8” x 8” x 41”
Includes: (2) 50 amp, (2) 30 amp, (2) Faucets, (2) Hose Holders with LED light with direct feed.
- Electric meters with digital readout optional on most models
- Cable TV and Phone outlets optional on most models
- Choose Fluorescent or LED lighting option
- Lighting option includes dusk-to-dawn photocell
- Single or dual ¼ turn ball cock style hose bibs available on most models
- Optional Shore Cord/Water Hose hanger keeps dock clutter free
- Connect multiple pedestals in series with optional loop distribution block
- Feed wires up through bottom of pedestal and connect using full access panel
- Seamless extruded aluminum case powder coated inside and out
- White powder coating is standard with many color options available
- 15-year unconditional warranty on structural integrity of the casing
- 2-year unconditional warranty on construction and fabrication of casings
