Description

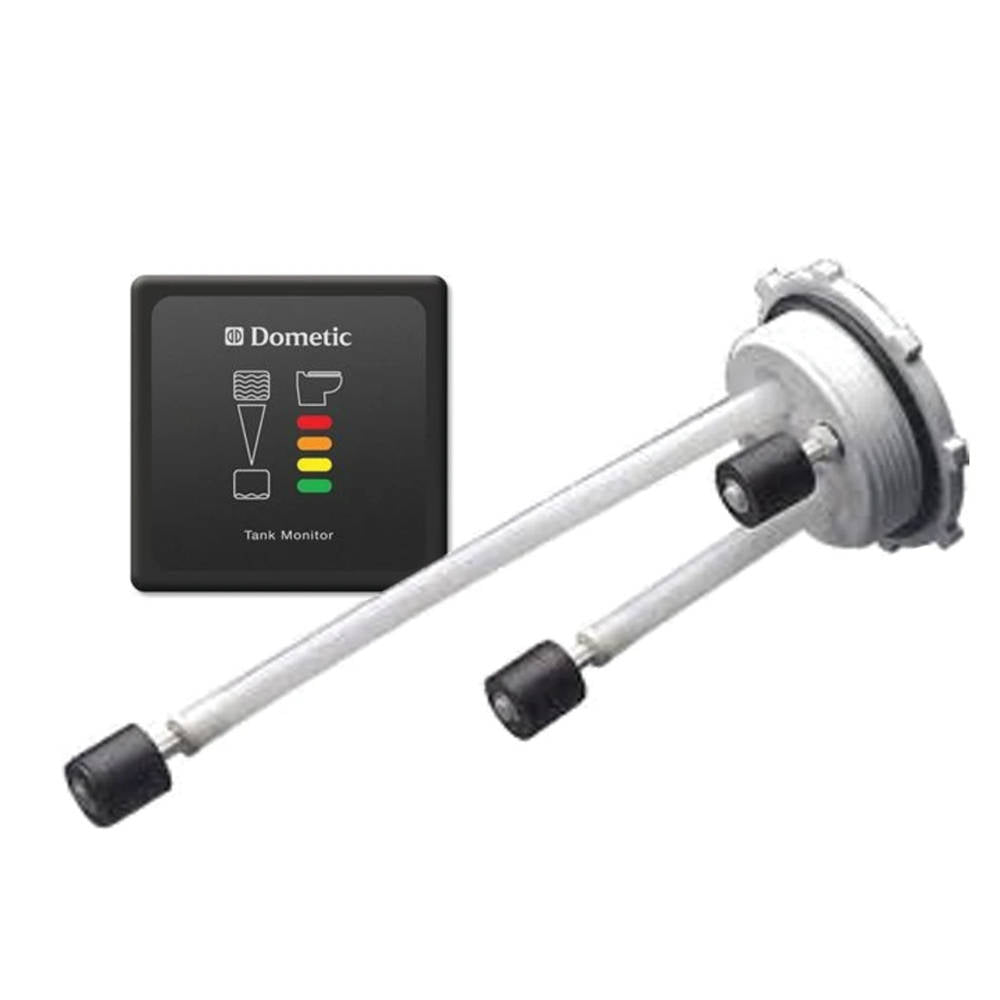

Dometic/Sealand DTM04 Holding Tank Monitor for tanks up to 22" without Vent port, 360604002, 12v or 24v DC operation.
Dometic's DTM04 Tank Monitor provides accurate, continuous tracking of tank capacities with easy-to-read 4 LED level lights that indicate four levels of tank contents (empty, low, mid and full). The DTM04 system includes a panel and probe to monitor the level in a single holding tank. The level-sensing probe installs in Dometic or other brand rigid tank (May require Holding Tank Flange Kit, #307230272) and is adjustable to desired level indication heights. Dometic's DTM04 Monitor panels can connect with a DTD Tank Discharge Control to offer convenient options for remote holding tank discharge.
- Continuously monitors tank level - micro-float switches in probe indicate empty, low, mid- and full tank levels
- Easy to read - only a single LED is illuminated at any one time
- No false readings. No electrical components come in contact with water or waste
- Easy to install. Two probe assembly options to fit tanks up to 22" (55.9cm) and 45" (114.3cm) deep
- Optional relay can be used to shut down toilet when waste tank is full; see Accessory Products, below
- Panel dimensions - 3-1/4" x 3-1/4" x 3/8"; extends 2" behind the mounting surface
- 12V DC or 24V DC operation

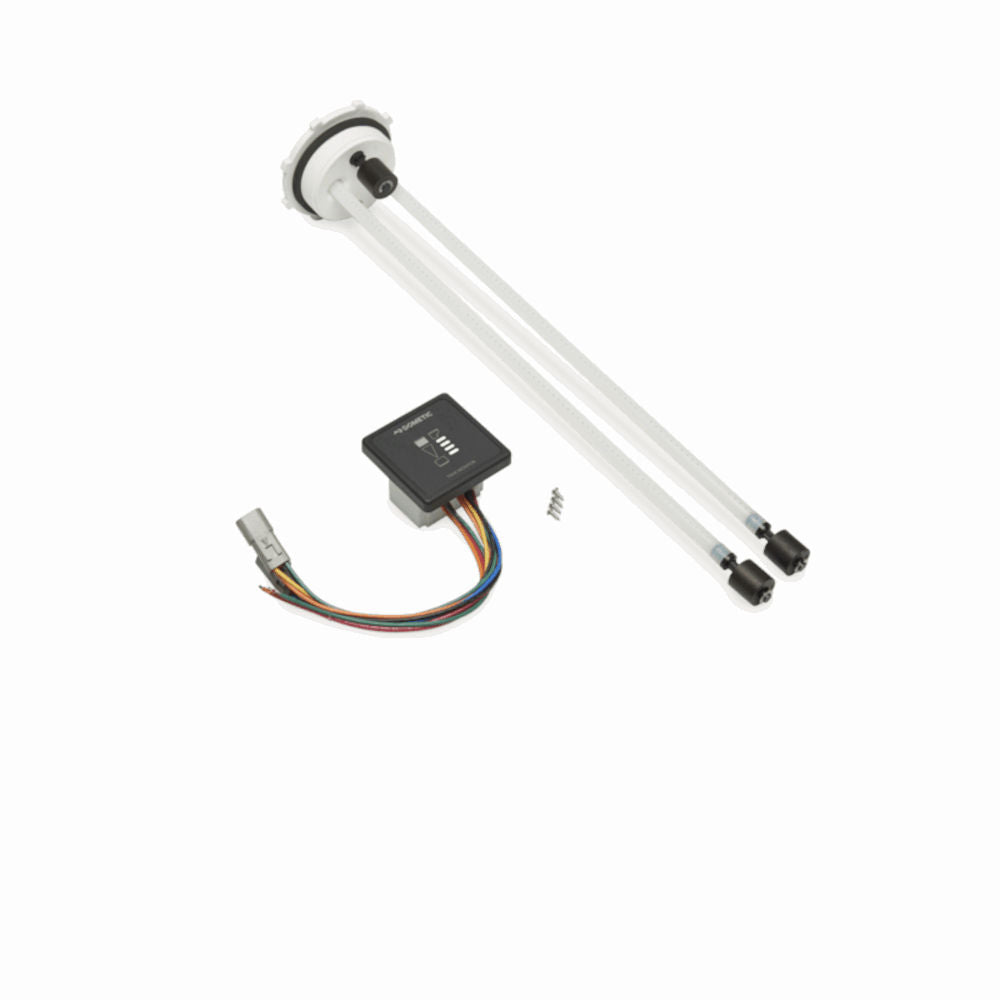

What is included:

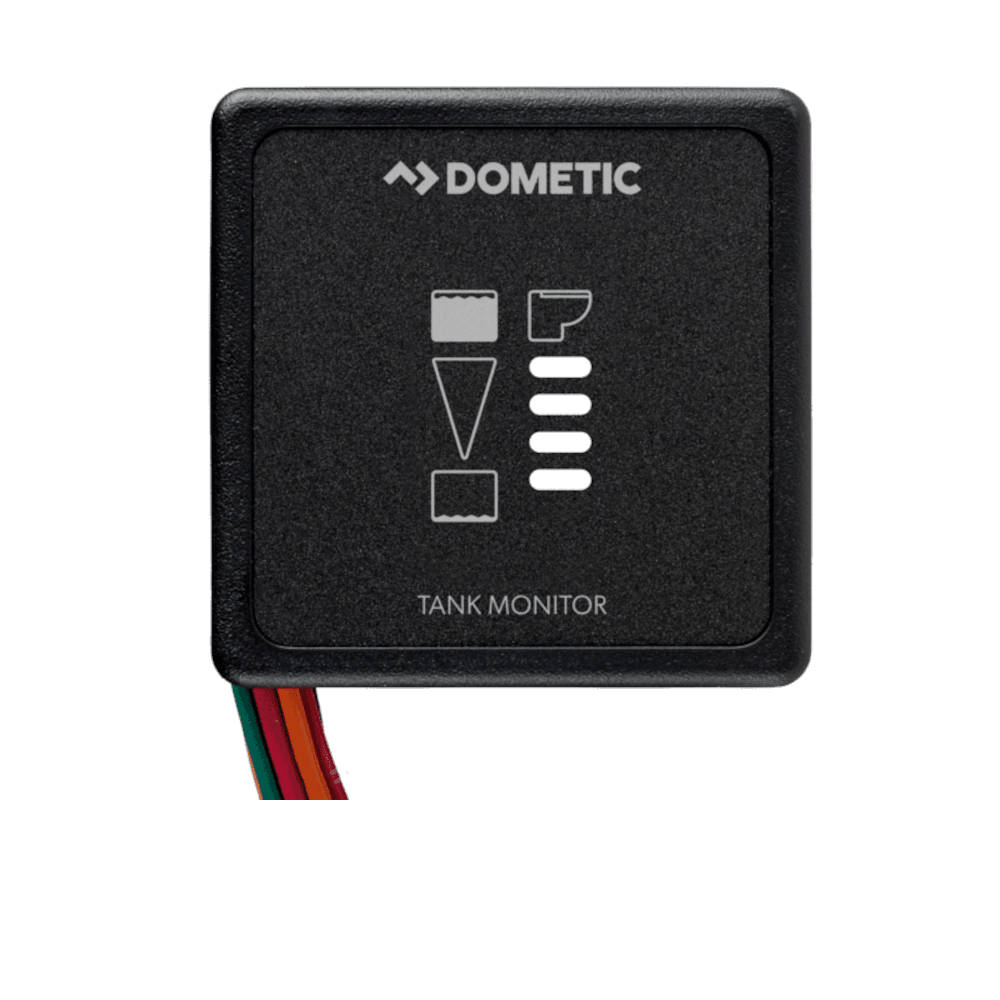

- Indicator panel
- 4-level Probe Cap Assembly with adjustable length tank probes for tanks to 22" deep
- Probe cap gasket
- Stainless steel mounting hardware
Note: Some Probe Caps require a vent port to connect a hose to an outboard vent, so a separate hole in the tank for a vent is not required. Use SeaLand's (Dometic) optional Universal Flange Kit (#307230272) to install a Probe Cap Assembly on an existing rigid tank.
