Description

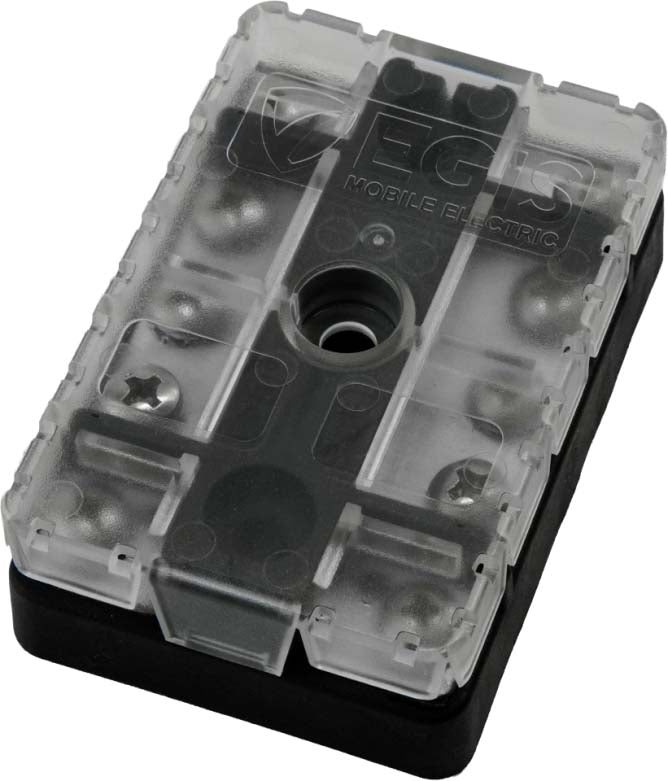

Dual 5 Circuit Busbars allows for two main circuits to be distributed from a single busbar.
Compact Footprint allows for installation in areas where space is limited.
Tin Plated Copper Busbar delivers superior electrical performance with minimal voltage drop.
Stainless-Steel Self Locking Hardware ensures robust connections & long term connection reliability.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
Clear Protective Cover allows for easy installations and inspections with break-away tabs.
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS CURRENT (AMPS) : 100
MAX VOLTAGE (VDC): 80
BASE MATERIAL: Nylon 6 30% Glass-Filled
BUS BAR MATERIAL: Tin-Plated Copper
COVER MATERIAL: Clear Polycarbonate
MOUNTING HOLES: 4x #10 (M5) & 2X #14 (M6)
