Description

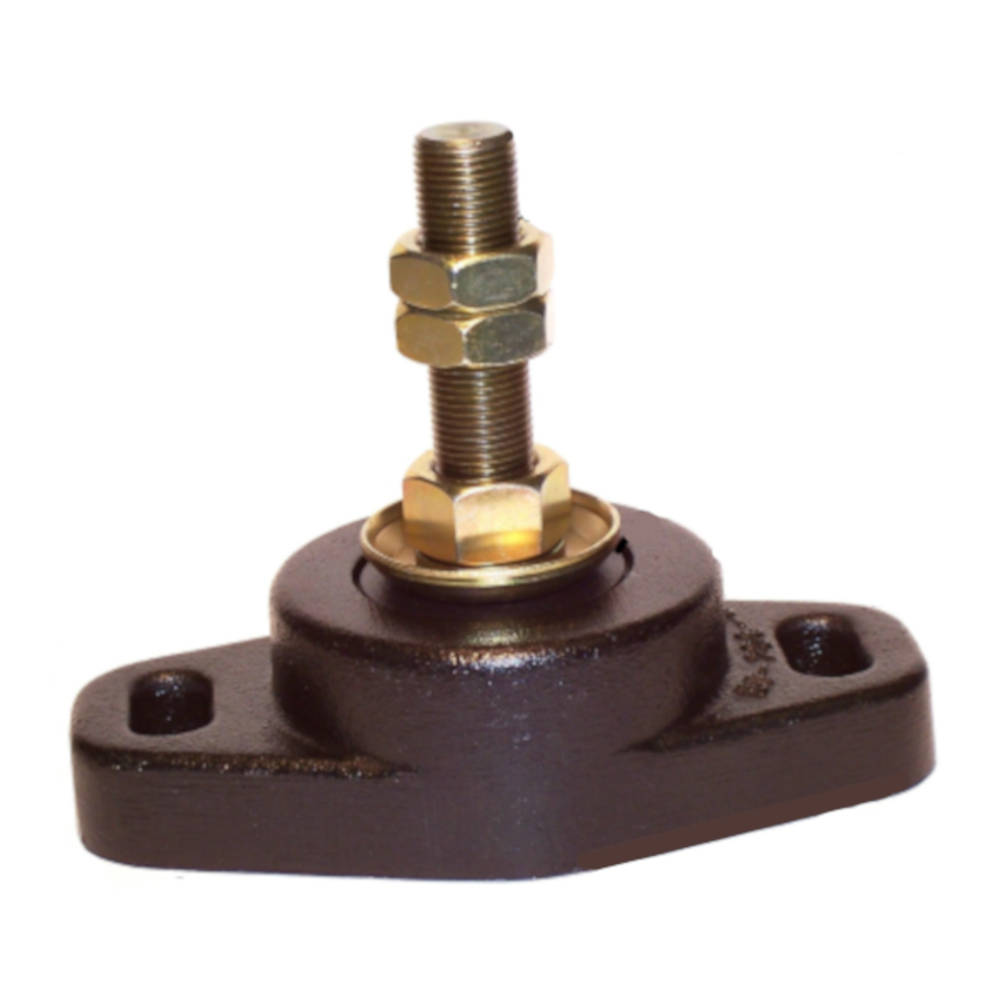

The DF-237-M3 Dual-Flex Marine and Industrial Engine Mount is built to withstand temperature extremes and exposure to saltwater conditions, oil & grease.
- Soft cushioning effect under normal loads and as loads increase the resistance of the mount increases rapidly with minimal deflection
- No metal-to-metal contact at any point over the weight range potential eliminating any danger of excessive impact
- All steel parts are zinc dichromate plated
- Stud furnished with two hex nuts
- Engines: Ford : DSD-681N/T (Gas engines) (80-120HP), Iveco : 8061SM05/06/8061SRM 05 & 06 & 27 (500HP), John Deere : 6.8 Liter (190-270HP)

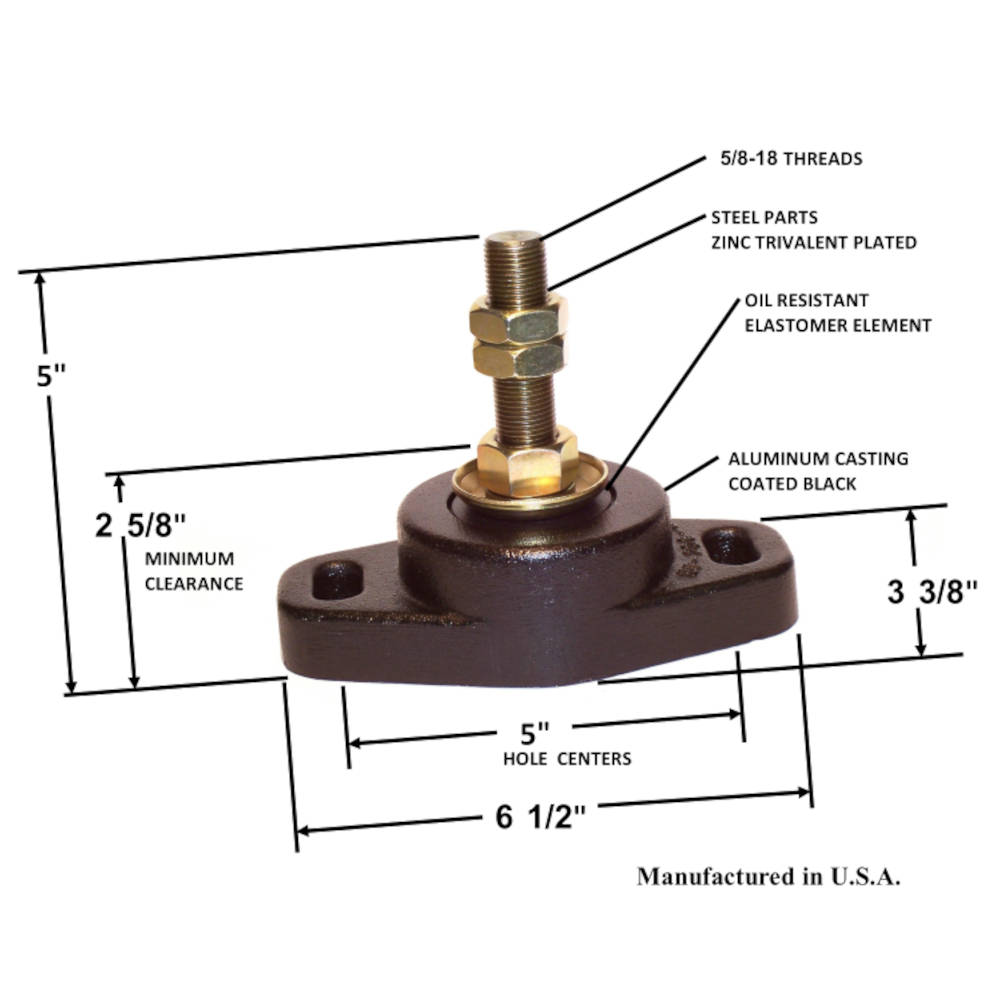

- Stud Size: 5/8" - 18"
- Length: 6-1/2"
- Width: 3-3/8"
- Weight lbs.: Up to 1,800 w/ 4-point mountings
- Fits Mounting Bolt Size: 1/2"
- Mounting Hole & Slot Center to Center: 5"
- HP Range: Up to 500
