Description

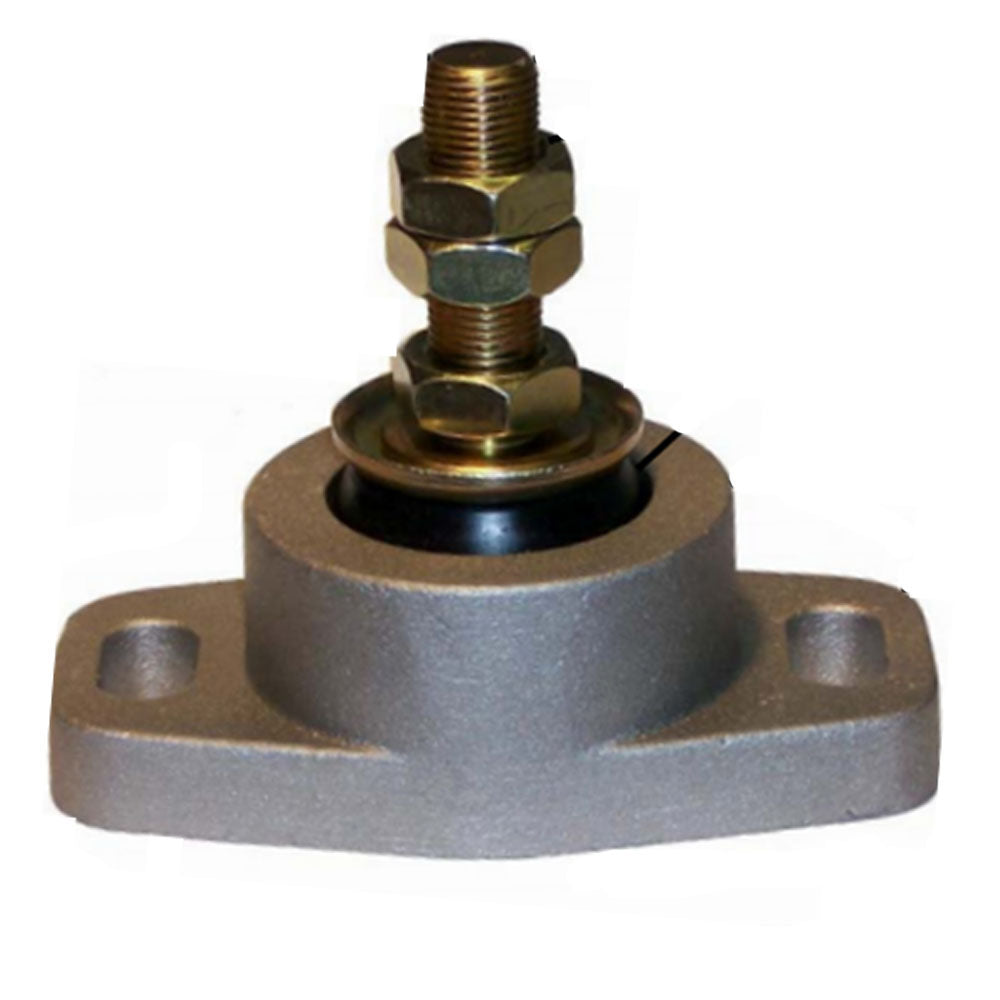

DF-3306-3 Series Dual-Flex Marine and Industrial Engine Mount for 1000 - 1400 lbs. engines gives mariners a truly flexible engine mount that withstands temperature extremes, exposure to salt, oil & grease. DF-3306-3 provides soft cushioning under normal loads and increased resistance as loads increase with minimal deflection.
- No metal-to-metal contact at any point over the weight range potential eliminating any danger of excessive impact
- Aluminum 356-T6 casting
- All steel parts are zinc dichromate plated
- Weight range 1,000 to 1,400 lbs.
- Slotted casting for horizontal adjustment
- Dual zinc dichromate plated studs on 4-1/2" centers with 3/4"-16 threads
- 4-7/8" overall height
- 2-7/8" minimum clearance
- 5-3/4" overall width, 3-3/16" depth
- Mounting holes on 4-1/2" centers for 1/2" bolts or lag screws
