Description

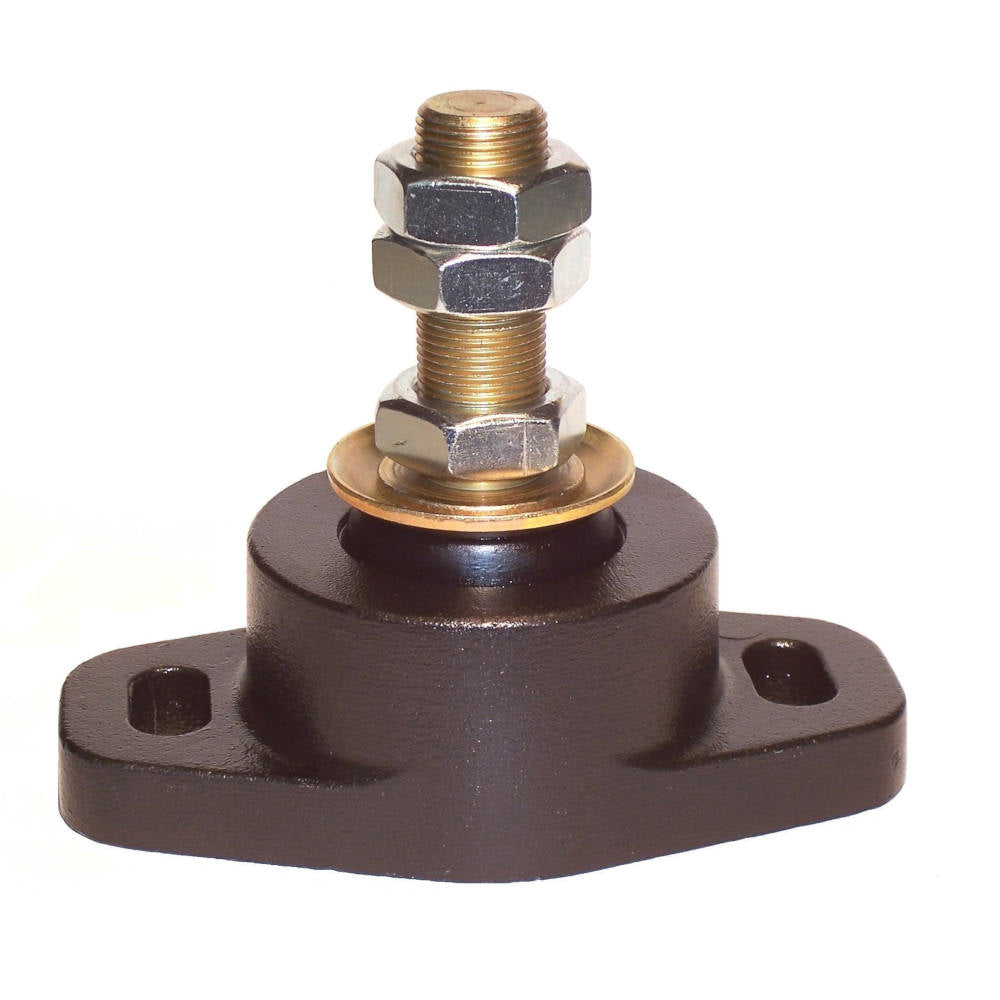

DF-4408-4 Dual-Flex Marine Engine Mount
Introducing the DF-4408-4 Dual-Flex Marine Engine Mount—an industrial-strength mount designed for engines weighing between 2,500 to 2,800 pounds. This mount is built to withstand extreme temperatures and exposure to salt, oil, and grease.
Key Features
- Flexible Performance: Provides soft cushioning under normal loads and increased resistance with minimal deflection under heavier loads.
- Durability: No metal-to-metal contact to eliminate the risk of excessive impact.
- High-Quality Materials:
- Aluminum 356-T6 casting for enhanced strength.
- All steel parts are zinc dichromate plated for corrosion resistance.
- Adjustable Design:
- Slotted casting allows for horizontal adjustments.
- Zinc dichromate plated stud on 5" centers with 1"-14 threads.

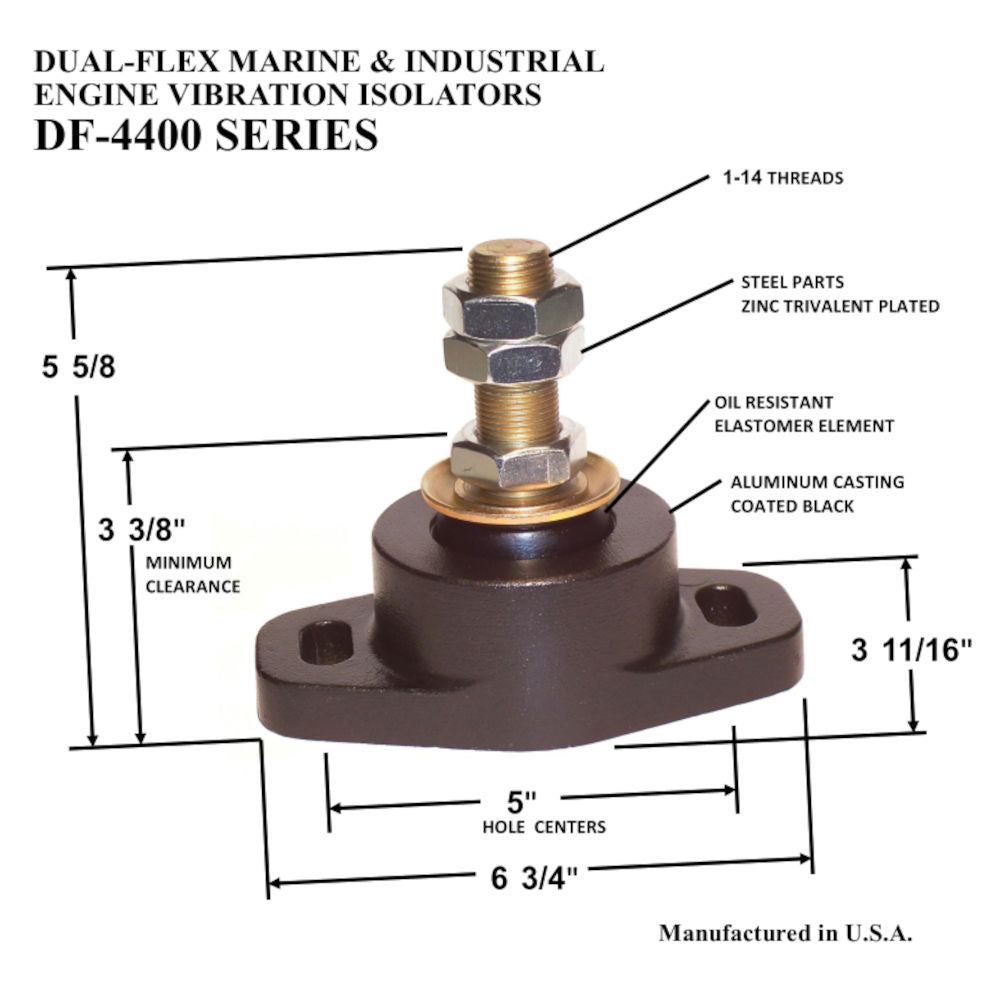

- Dimensions:
- Weight range support: 2,500 - 2,800 lbs.
- Overall height: 5-5/8"
- Minimum clearance: 3-3/8"
- Overall width: 6-3/4"
- Depth: 3-11/16"
- Mounting Specifications:
- Mounting holes on 5" centers for 1/2" bolts or lag screws.
The DF-4408-4 is the perfect choice for ensuring your marine engine is securely mounted and operates smoothly under various conditions.
Engines: Caterpillar Diesel: 3208 (>340HP); Cummins Diesel: V-903-M (>340HP), NTA855, QSM 11 (215-635 HP); Detroit Diesel: 471TI/6-71, 6-71TI/6V71, 6V71TA (305-360HP); Duetz : V-6 & V-8 Engines (250-550HP); Ford : Lehman & Merlin Diesel (300-475 HP); Iveco: 8281SRM70 (500-700HP); John Deere 9.0L (325-500HP), 12.5L (240-450HP); Volvo TMD120A, TAMD120A, TAMD122 (260-450HP
