Description

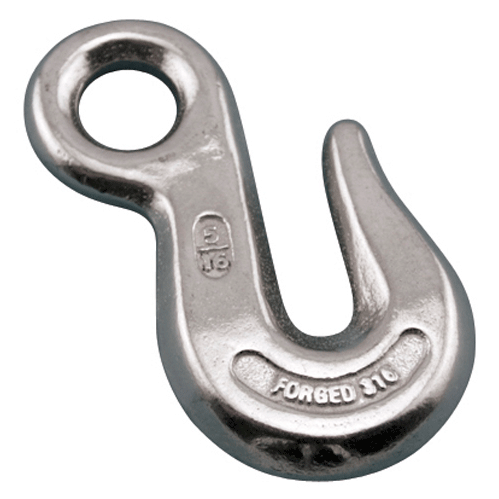

Eye Grab Hook
Grade: 316 Stainless Steel
The Eye Grab Hook is made from 316 stainless steel for maximum corrosion resistance and ranges in sizes from 1/4″ to 1/2″. These stainless steel Eye Grab Hooks are ideal for marine and industrial applications. Please note that working load limits are based on gradual pull, not shock loads.

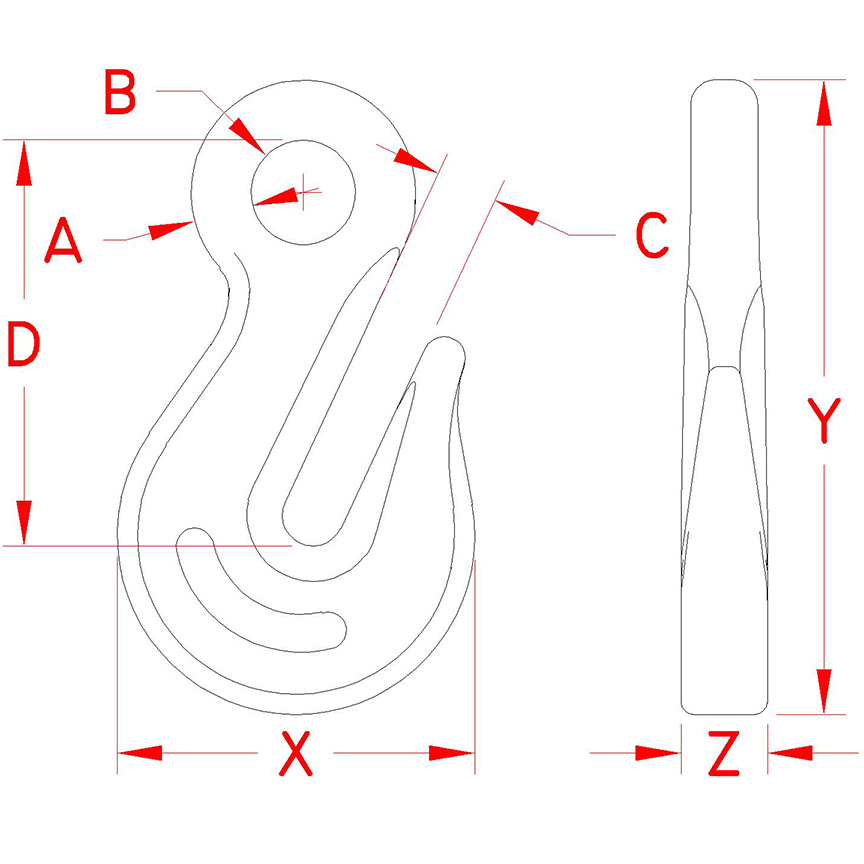

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| ITEM | A (size) |
B | C | D | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|
| S0453-0007 | 1/4″ | 0.50″ | 0.35″ | 2.00″ | 1.80″ | 3.12″ | 0.50″ | 1,500 | 0.35 |
| S0453-0008 | 5/16″ | 0.56″ | 0.43″ | 2.25″ | 2.12″ | 3.80″ | 0.64″ | 2,000 | 0.64 |
| S0453-0010 | 3/8″ | 0.65″ | 0.50″ | 2.50″ | 2.48″ | 4.15″ | 0.73″ | 2,500 | 0.88 |
| S0453-0013 | 1/2″ | 0.88″ | 0.66″ | 3.35″ | 3.27″ | 5.39″ | 0.96″ | 3,600 | 2.04 |
