Description

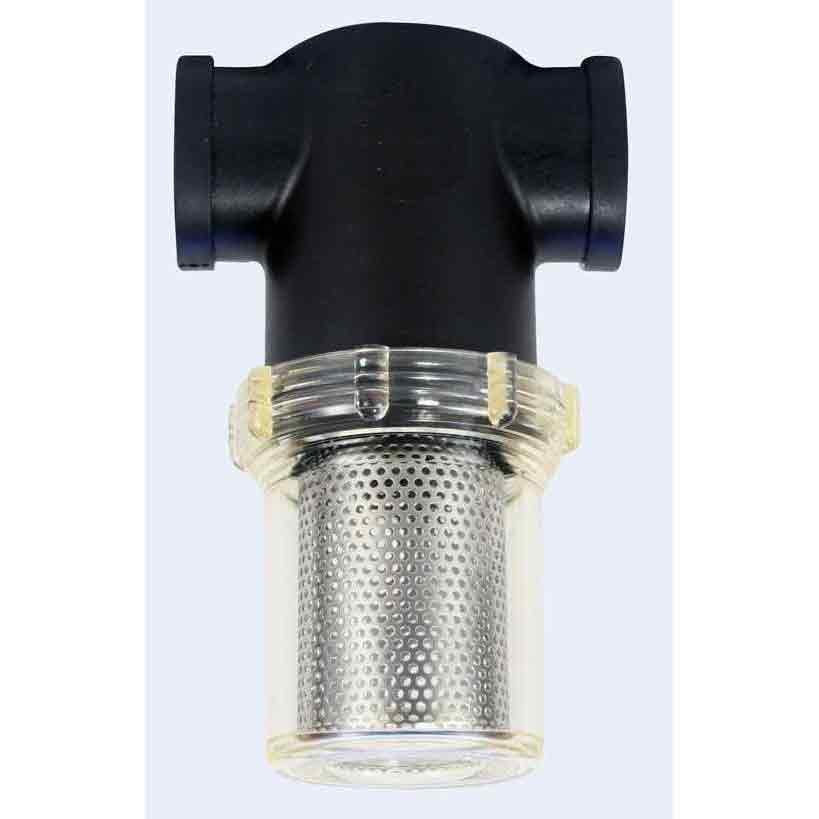

The Marelon T-150 compact raw water strainer is our compact strainer model. It features great throughput and the legendary Marelon resiliency in a compact package. If you're short on space or just want a smaller strainer without compromising quality, this is for you!
The T-150 has two 1-1/2” female NPSM (parallel threads) ports to which you can attach a straight or 90°hose barb tailpipe as needed. Marelon reducers are available to go from 1-1/2” hose to ¾” hose if needed. See adapters size list below. Maximum 150psi @ 70°F and 100psi @125°F. Not designed for pressure spikes exceeding maximum psi. Up to 12psi vacuum.
The included mounting bracket requires two (2) ¼” fasteners (not included) to firmly mount to a bulk head or stringer and allows the “T” head to be rotated as needed. A flat washer under the fastener heads is recommended.
A seacock is required on the intake thru-hull, and it is advisable to have an inline valve on the back side (outlet) as well so the unit can be completely isolated for basket removal and cleaning without having backflow spillage into your bilge. The “T” head should be above the waterline.
