Description

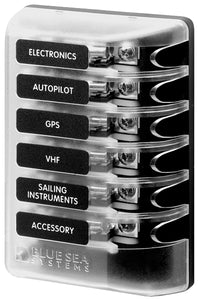

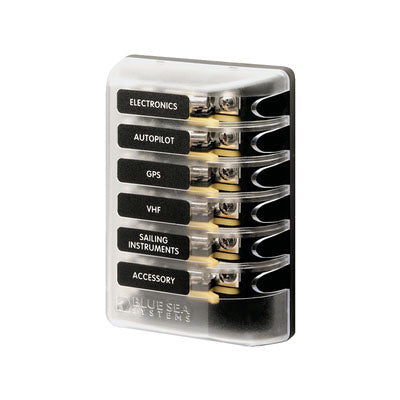

- Clear insulating cover with label recesses for accepting large format labels
- Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
- Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
- Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses
Cover Material: Polycarbonate
AGC/MDL Fuses: 1/8 to 30 Amperes
Maximum Amperage Per Circuit: 30 Amperes
Screw Terminal: #8-32 with Captive Star Lockwasher
Maximum Amperage per Block: 100 Amperes
Weight Lb (Kg): 0.48 (0.22)
Maximum Voltage Rating: 32 Volts DCBase Material: Reinforced Polycarbonate
Additional Information
