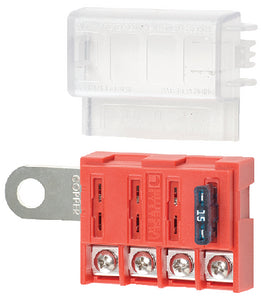

Description
- Easy to install 4 ATO®/ATC® fused circuits
- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Four Nylon insulated ring terminals included
- Insulating cover included
- Accepts Small Format Circuit Labels
- Includes 1 fuse
-
Specifications Circuits 4 Maximum Amperage 100A per block
30A per circuitMaximum Voltage 32V DC Mounting Clearance for 3/8" [M10] stud Screw Terminal Torque 18 in-lb (2.03 Nm) Screw Terminal Type #8-32 Screws with captive star lock washer Weight 0.25lb (0.11 kg)
