Gunnebo Johnson Co.SKU: 568298-1
MPN: 7204051 | Catalog No: CRO7204051
Out of stock - Typically Available in 3 - 6 Weeks

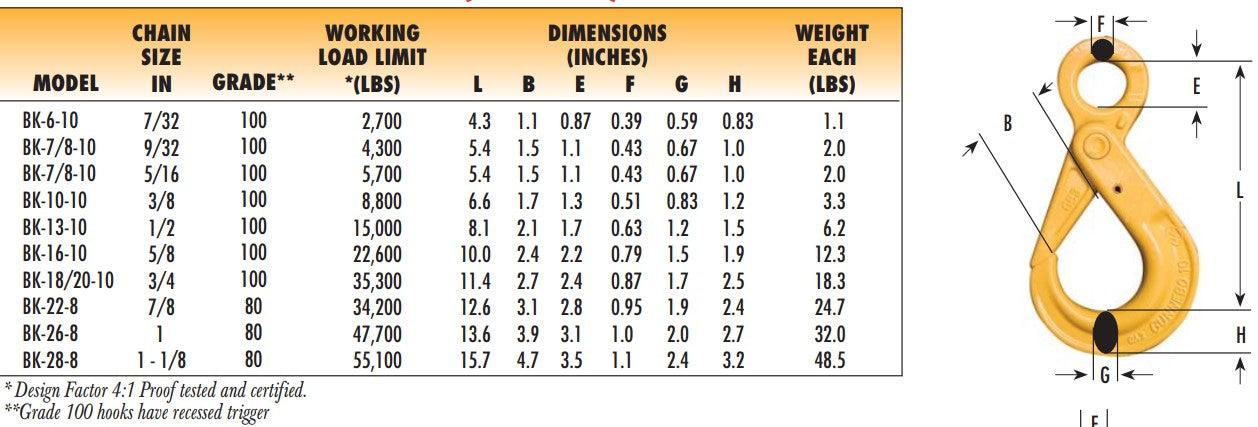

Model: BK-18/20-10 | Gunnebo Part #: Z101089 | Chain Diameter (in.): 3/4" | WLL (lbs.): 35,300 | Inside Eye Diameter (in.): 2.4" | Hook/Throat Opening (in.): 2.7" | Length of Hook & Eye (in.): 11.4" | Approx. Weight (lbs.): 18.3
Size: 1
Price:
$645.00

Description

  • Made from Grade 100 alloy steel
  • 4:1 design factor
  • Popular for use with chain slings
  • Heat number identification allows full product traceability
  • Meets ASTM A-952-96 standards for Grade 100 chain slings
  • Latch closes automatically under load. Hook will not open under load.
  • The release trigger will only operate when hook is unloaded.
