Description

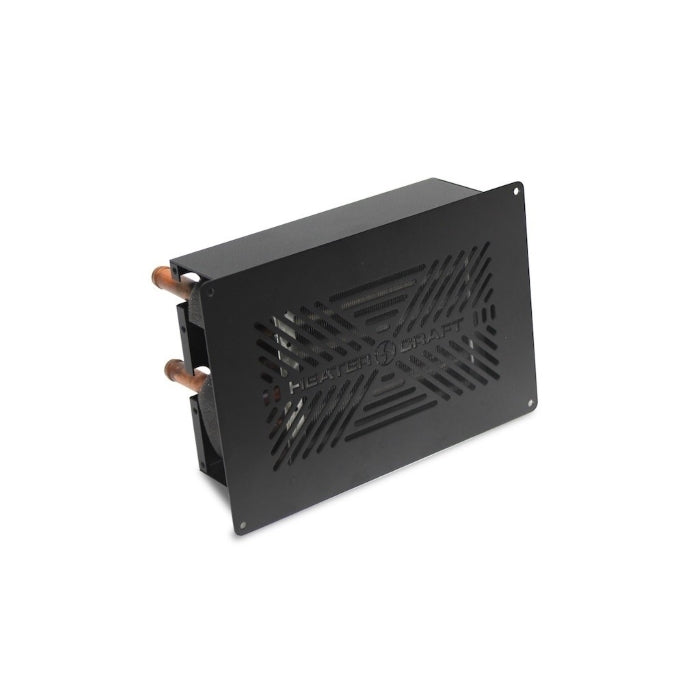

- The 500 Sport includes everything needed for a professional installation. This system is great for fishing to sailing and all I/O or inboard powered boats in between. The 28,000 BTU/hr flush mount, grilled heater fits easily in stairwells, cabin interiors or cockpit areas. The system is a 12V, direct current, three speed or optional 24V three-speed fan. The Heater housing is constructed of heavy-duty marine grade aluminum and powder coated to prevent corrosion.
Features:
Amperage: Low 4.9, Med 6.6, High 9.6
Max. Est. BTU/h: 28,000
Fits all boats with I/O or In-Board engines
Grill Size: 7.45" H x 11.3" W
Air Flow: Low 172 cfm, Med 228 cfm, High 263 cfm.
Hose barb: 5/8"
Houses core H202
4 Year/48 Month Warranty
Includes:
(1) Flush mount heater unit with wire harness
(1) High-low switch with indicator assembly
(2) 6' lengths of sixteen gauge wire
Minor Hardware
Detailed Installation Instructions
Dimensions
Grill Size: 7.45 H x 11.3 W
Unit Size/Cut Out: 9 3/8 H x 6 1/2 W x 8.6 D
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Heater Craft warrants your Hydronic Heater System and Shower Wash Down System to be free from defects in material and craftsmanship under normal use and service by the original consumer purchaser for a period of four 4 years from the date of purchase. Return: All returns must be recevied within 30 days of receipt of the order. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
