Description

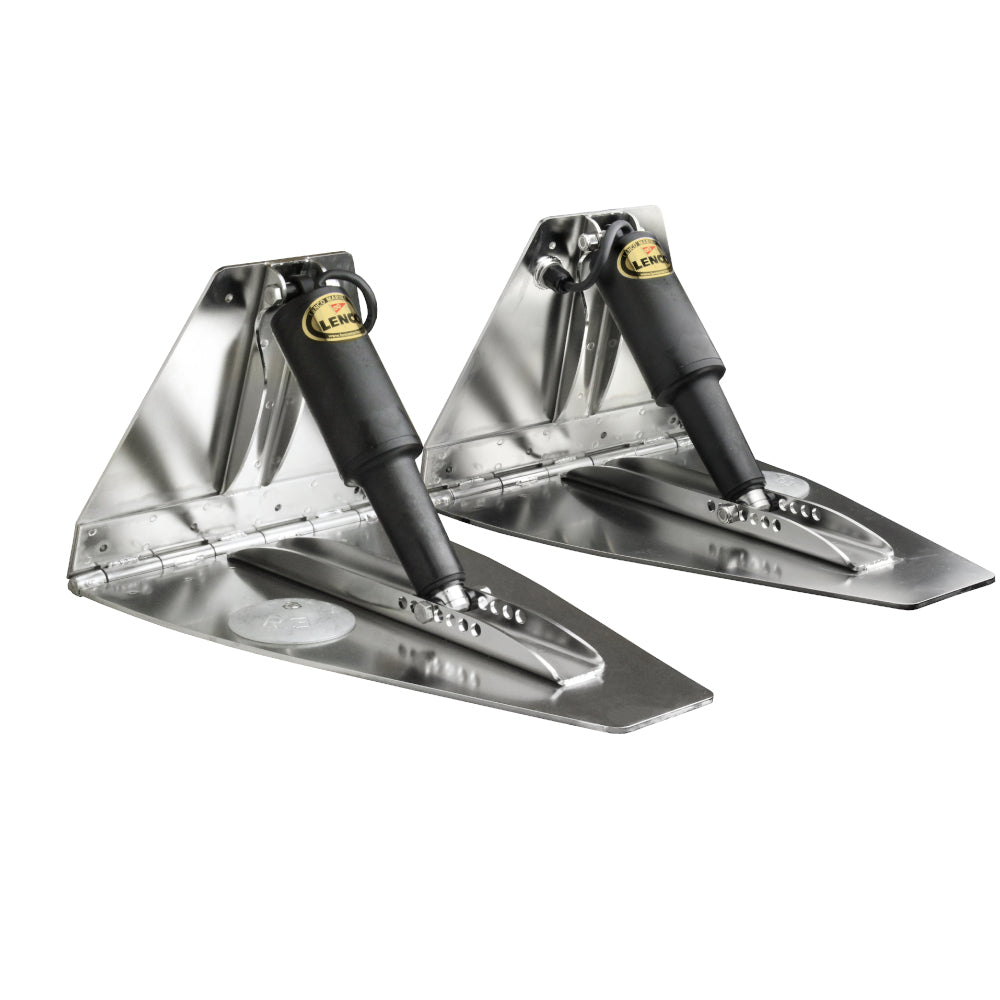

Lenco builds the powerful, High Performance Trim Tab Set 18" x 12" with one 12 volt actuator for each of the 18" L x 12" W stainless steel trim blades. These sets are designed for boats with multiple engines but limited transom space. The unique contoured blade design allows extra space for engines to turn while reducing cavitation to the props.
The 18" x 12" set is best for boats 20' to 40' in length. Lenco constructs these blades using electro-Polished 7 gauge (4.6 mm) laser cut 304 stainless steel with heavy duty 3/8" (9.5 mm) diameter pin hinges. The trim tabs have full transom back plates with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets and 3/8" (9.5 mm) stainless steel mounting bolts. Each blade includes a 3.75" (9.5 cm) sacrificial anode.
- Length x Width: 18" x 12"
- Suggested Boat Length: 20' - 40'
- Min. Transom Height: 10.5" (26.7 cm)
- (2) 7-gauge stainless steel Electro-Polished blades
- (2) 15056-001 XD Extreme Duty actuators with 6' (1.8 m) leads & Deutsch connectors
- Lenco owner's/installation manual
- Note: Boat-mounting hardware to be supplied by the customer
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Trim Tab kits, Switches, and Actuators purchased after April 1st, 2019 have a 5 year warranty. Products purchased prior to April 1st, 2019 are under our original warranty period of 3 years. Please see our Warranty policy for limitations and restrictions. Trim Tab Systems: 5 years from the original date of purchase. (Limited) Ski/Wake/Tow Systems: 3 years from the original date of purchase. Retro Fit Kits: 5 years from the original date of purchase. Electric Hatch-Lift: 2 years from the original date of purchase. Electrical Switches: 5 years from the original date of purchase. Return: All returns must be recevied within 30 days of receipt of items. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
