Description

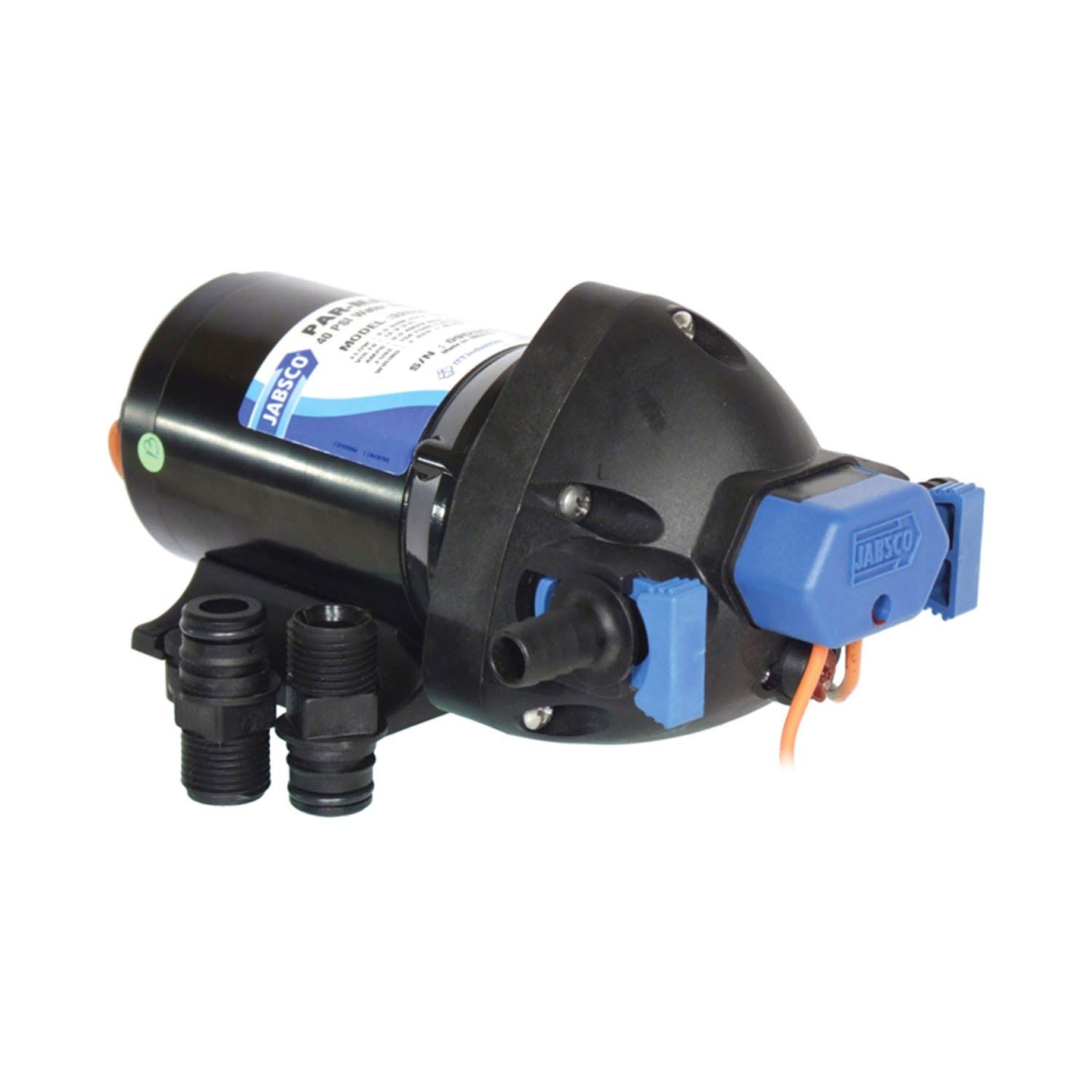

Jabsco, PAR-Max 3.5 Water System Pumps, 3.5 gpm, 32600 Series. This 3.5 gpm water system pump provides the owner of small to medium vessels with a cost conscious and size minimized, higher pressure pump. With a sealed pump head and motor, this new model provides the same ease of installation as all Jabsco water pressure pumps.
- Compact 3-chamber design for greater pumping efficiency
- Pumpgard Intake Strainer included (suitable for use in salt water)
- Corrosion resistant
- Soft rubber mounts
- Self priming up to 10'
Motor meets USCG electrical standards (Title 33, Chapter 1, Part 183; Subpart 1) for IGNITION PROTECTION on gasoline powered vessels.
Three chamber, multi-outlet water pressure pump serves 3 or more 1/2" outlets at any one time. Snap-fit ports simplify both installation and removal for routine service. 3.5 gpm open flow output. Self-priming up to 10'. Sealed diaphragm smooth and quiet operation. Thermal overload protection automatically stops motor should it overheat due to overload, with auto restart feature. Diaphragm design allows extended dry running. Pressure switch cut-in 15 psi, cut-out 25 psi, low pressure, or cut-in 20 psi, cut-out 40 psi, high pressure. Connections for 1/2" ID hose or 1/2" Qest threads.Jabsco(PDF)
