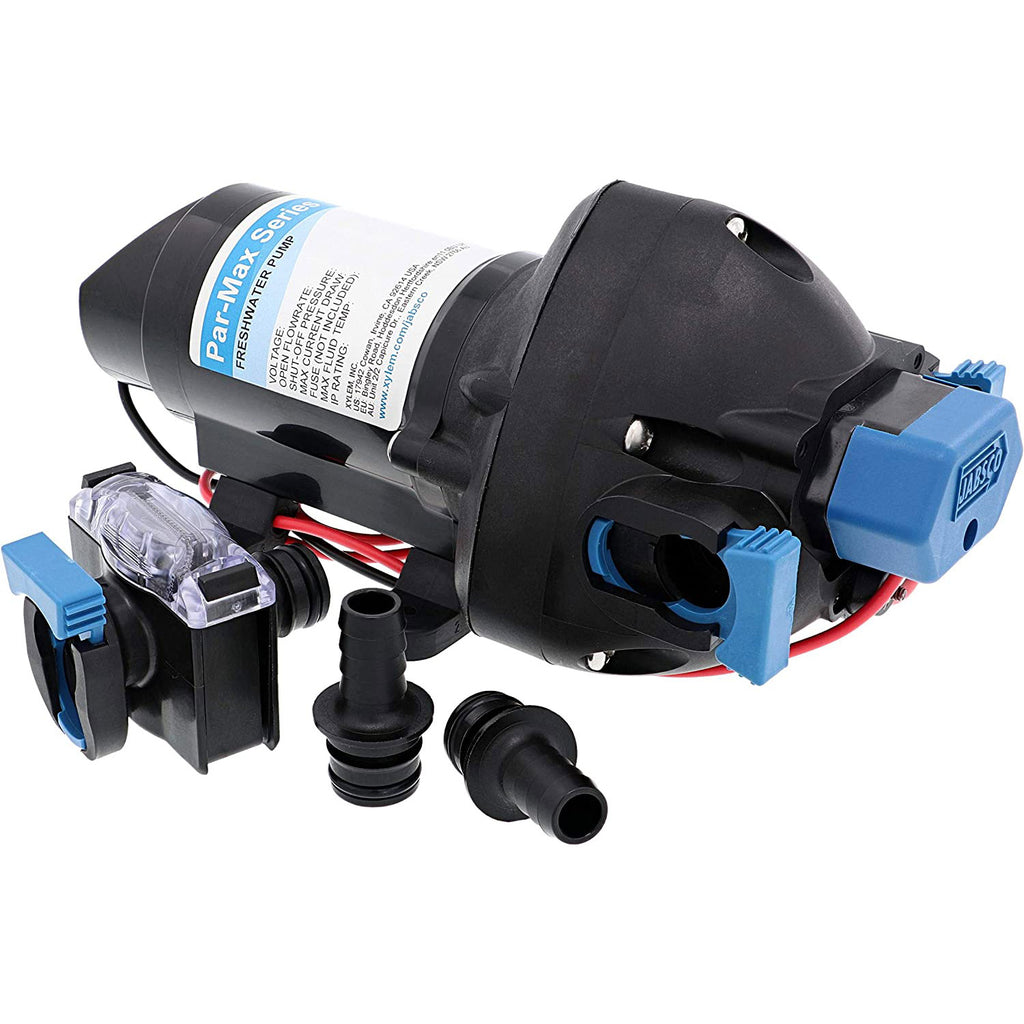

Jabsco Par Max 3 Freshwater Delivery Pump, 3 GPM, 24V DC, 40 PSI
Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service in applications.
These models provide good performance in an economical footprint. These configurations are 3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.
- Co-molded diaphragm technology for long life and durability
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Equipped with integrated bypass module to reduce cycling and provide smoother flow
- Connections: for 13mm (½”) bore hose
- Dimensions: 230mm long, 152mm wide, 110mm high
- Fuse Size: 10(amp)
- Maximum Current: 4.4(amps)
- Output: 11 litres/minute (2.4 gallons/minute) open flow
- PRESSURE SWITCH - cuts in at 1.4 bar (20psi) - cuts out at 2.8 bar (40psi)
- Efficient, high-flow, self-priming pump serving 2 or more outlets
- Multi-diaphragm design self primes to 1.8m vertical lift, can run dry without damage
- Supplied with snap-in ports for hose 1/2" (13mm) and Strainer
- Quiet running
- Motor protected by automatic thermal overload cut-out
- Includes bypass feature to provide smooth, quiet flow.
- Other snap-in ports for hose connections are available.
- Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm
