Description

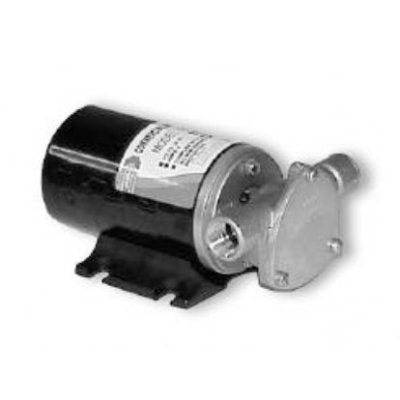

Jabsco, Diesel Fuel Capable, 18680 Series. Complete and compact and diesel fuel capable.
Product Specs and Installation Instructions and Diagrams
- Flow rate: 6.0 gpm (23 Liters/min)
- Self-priming from dry up to 3' (1m)
- Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)
- Pump head may be mounted at 90 Deg. increments on the motor to allow mounting as needed
- Ideal for transferring diesel fuel
- Self-priming to about three feet and can pump against a discharge head up to twenty feet
- Body: Bronze
- Rotor: Plastic - Liquid Crystal Polymer
- Vanes: Plastic - Polyphenylene Sulfide
- Seal: Nitrile Lip Seal
- Shaft: Stainless steel
- Port Type: 1/2" NPT Female or 1" (25mm) Hose barb
- Voltage: 12 or 24 volt
- Motor: Intermittant duty permanent magnet type
- Duty Cycle: 30 minutes at 10' (3m) at 86 Deg. F (30 Deg. C)
- 3-3/8" H x 4-3/4" W x 6-7/8" L, weighs: 5-1/2 lb (2.5kg)
Product Specs and Installation Instructions and Diagrams
