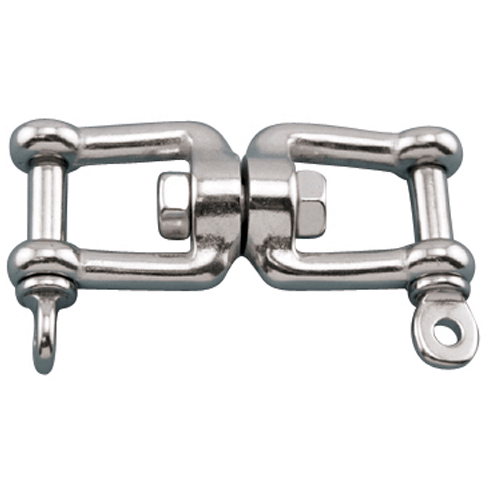

Jaw and Jaw Swivel 316 Stainless Steel
The Jaw and Jaw Swivel is precision cast and made from grade 316 stainless steel for maximum corrosion resistance and durability. These swivels are ideal for various marine and industrial rigging applications. No snag shackle pin is available.

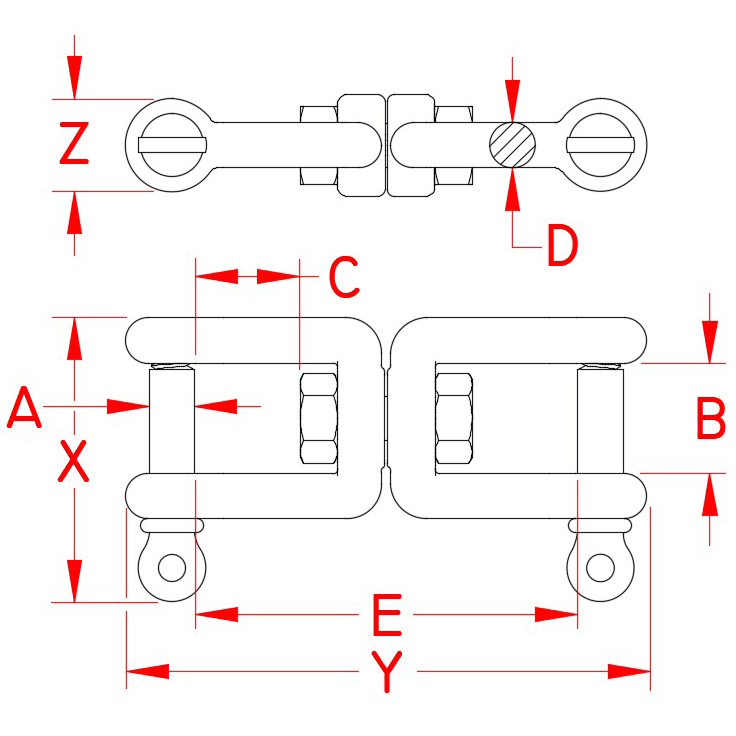

| TEM | A (size) |
B | C | D | E | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| S0156-0006 | 1/4″ | 0.50″ | 0.45″ | 0.23″ | 1.83″ | 1.36″ | 2.50″ | 0.60″ | 600 | 0.13 |
| S0156-0008 | 5/16″ | 0.65″ | 0.60″ | 0.31″ | 2.50″ | 1.82″ | 3.50″ | 0.75″ | 1,100 | 0.33 |
| S0156-0010 | 3/8″ | 0.80″ | 0.82″ | 0.38″ | 3.10″ | 2.23″ | 4.30″ | 0.85″ | 1,540 | 0.62 |
| S0156-0013 | 1/2″ | 1.05″ | 0.96″ | 0.48″ | 4.23″ | 2.81″ | 5.88″ | 0.97″ | 2,640 | 1.29 |
| S0156-0016 | 5/8″ | 1.35″ | 1.38″ | 0.58″ | 5.25″ | 3.41″ | 7.31″ | 1.47″ | 4,750 | 2.51 |
| S0156-0020 | 3/4″ | 1.50″ | 1.50″ | 0.72″ | 6.19″ | 4.00″ | 8.29″ | 1.57″ | 7,100 | 4.03 |
