Description
- Drop-forged carbon steel
- Galvanized to ASTM A-153 specification
- 5 to 1 design factor
- Meets design requirements of Federal Specification FF-T-791, Type 1, Form 1, Class 7
- Jaws on sizes 1/4" through 5/8" have hex head bolt and nut
- Jaws on sizes 3/4" though 1-1/2" have cotter key and bolt
| Part No. |
Mfr. No. |

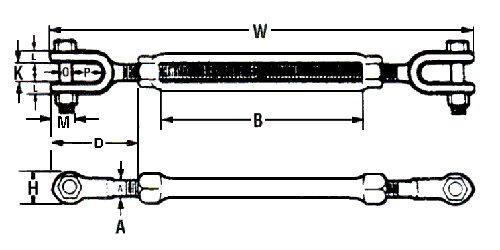

Dimensions | |||||||||||||
| D | H | K | L | M | Q | P | |||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | ||
| 38633 | 6250501 | 1-19/32 | 40 | 5/8 | 16 | 13/32 | 10 | 3/16 | 5 | 15/32 | 12 | 1/4 | 6 | 5/8 | 16 |
| 38634 | 6250502 | 1-15/16 | 49 | 11/16 | 17 | 1/2 | 13 | 3/16 | 5 | 1/2 | 13 | 1/4 | 6 | 3/4 | 19 |
| 38635 | 6250503 | 2-1/32 | 52 | 7/8 | 22 | 1/2 | 13 | 1/4 | 6 | 9/16 | 14 | 5/16 | 8 | 13/16 | 21 |
| 38636 | 6250505 | 2-5/8 | 67 | 1-3/16 | 30 | 5/8 | 16 | 5/16 | 8 | 3/4 | 19 | 3/8 | 10 | 1-1/16 | 27 |
| 38637 | 6250506 | 2-5/8 | 67 | 1-3/16 | 30 | 5/8 | 16 | 5/16 | 8 | 3/4 | 19 | 3/8 | 10 | 1-1/16 | 27 |
| 38638 | 6250507 | 2-5/8 | 67 | 1-3/16 | 30 | 5/8 | 16 | 5/16 | 8 | 3/4 | 19 | 3/8 | 10 | 1-1/16 | 27 |
| 38640 | 6250510 | 3-3/8 | 86 | 1-3/8 | 35 | 3/4 | 19 | 7/16 | 11 | 15/16 | 24 | 1/2 | 13 | 1-3/8 | 35 |
| 38641 | 6250511 | 3-3/8 | 86 | 1-3/8 | 35 | 3/4 | 19 | 7/16 | 11 | 15/16 | 24 | 1/2 | 13 | 1-3/8 | 35 |
| 38645 | 6250515 | 3-3/4 | 95 | 1-13/16 | 46 | 15/16 | 24 | 15/32 | 12 | 1-3/16 | 30 | 5/8 | 16 | 1-1/2 | 38 |
