Description

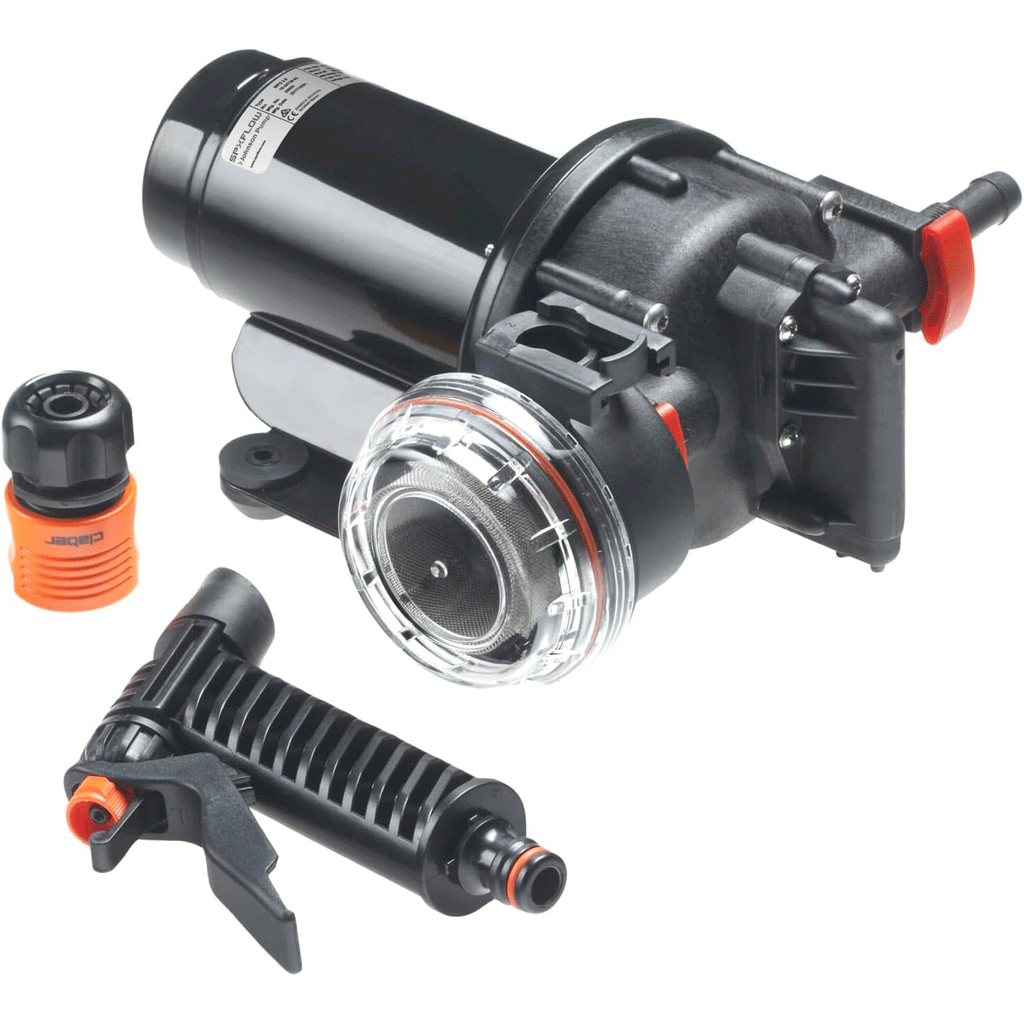

Johnson Pump 10-13407-08 Aqua Jet WD 5.2 Deck Wash Pump, 20 LPM, 5 bar, S/N, 24V
The quiet and low-pulsation Aqua Jet five-chamber diaphragm system from Johnson Pump is the ideal solution as a deck washing and cleaning device for boats, vehicles and industrial applications
With the higher pressure of up to 5 bar, cleaning is faster and easier than ever before
- Deck wash pump with Santoprene / Nitrile elastomers
- Self-priming up to a height of 3m
- Flow rate up to 20 liters / minute (5.2 GPM)
- Dry running without damage
- Motor with built-in overheating protection switch
- Pressure switch switches the pump off at approx. 5 bar (70 PSI)
- Included in the scope of delivery: Suction filter 40 MESH, spray nozzle, 19mm (3/4") hose connections
- Power consumption 8A; 10A fuse (not included)
- Dimensions: Height 11.0cm / width 13.0cm (without connections) / length 24cm
Pump operation: During operation of the pump, the pressure increases until it reaches the predefined cut-off pressure. When the predefined pressure level is reached, the built-in pressure switch switches the pump off. The valves installed in the pump ensure that the pressure is maintained after the pump is switched off. When the spray nozzle is actuated, the pressure drops. If the pressure drops below the switch-on pressure, the integrated pressure switch automatically switches the pump back on.
