Description

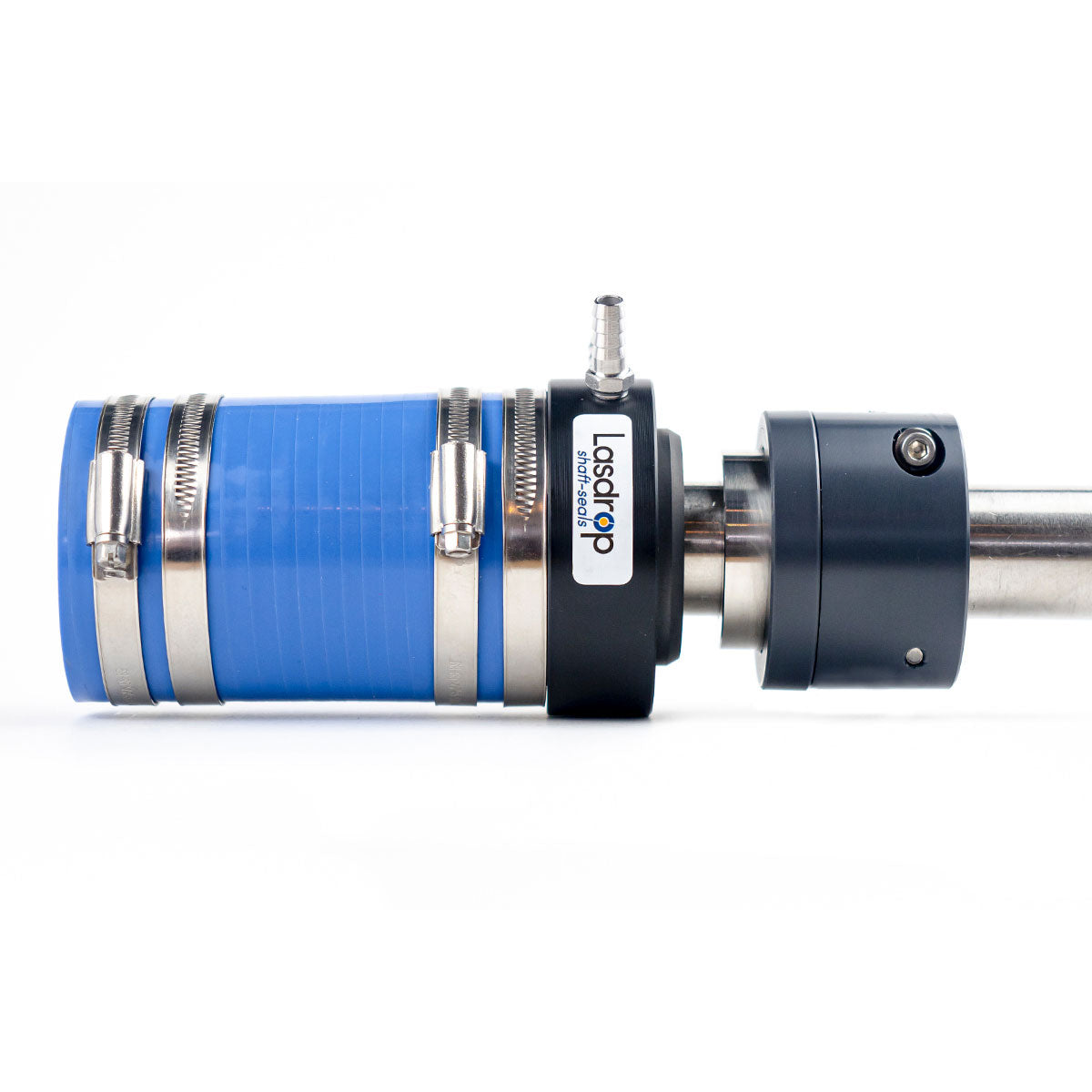

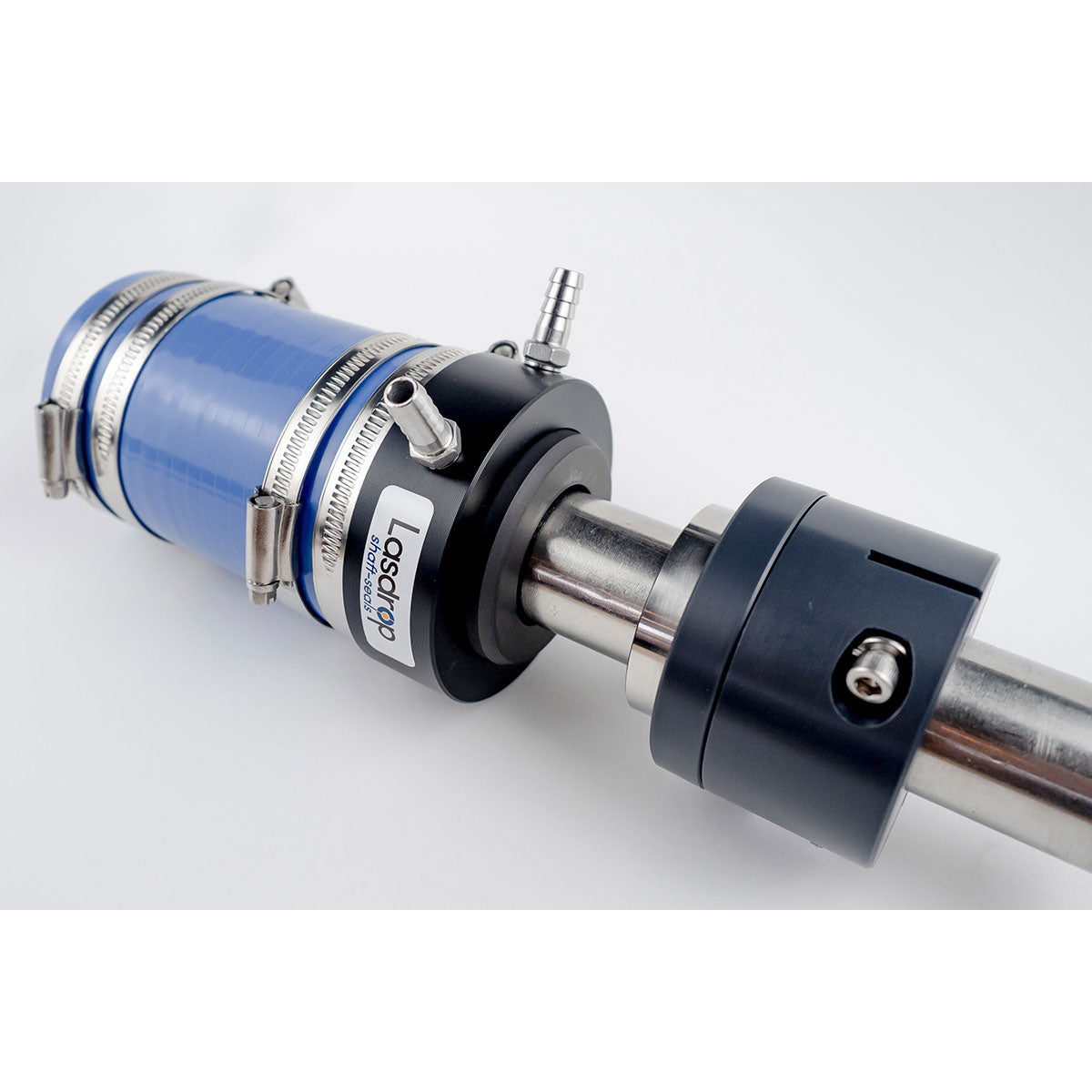

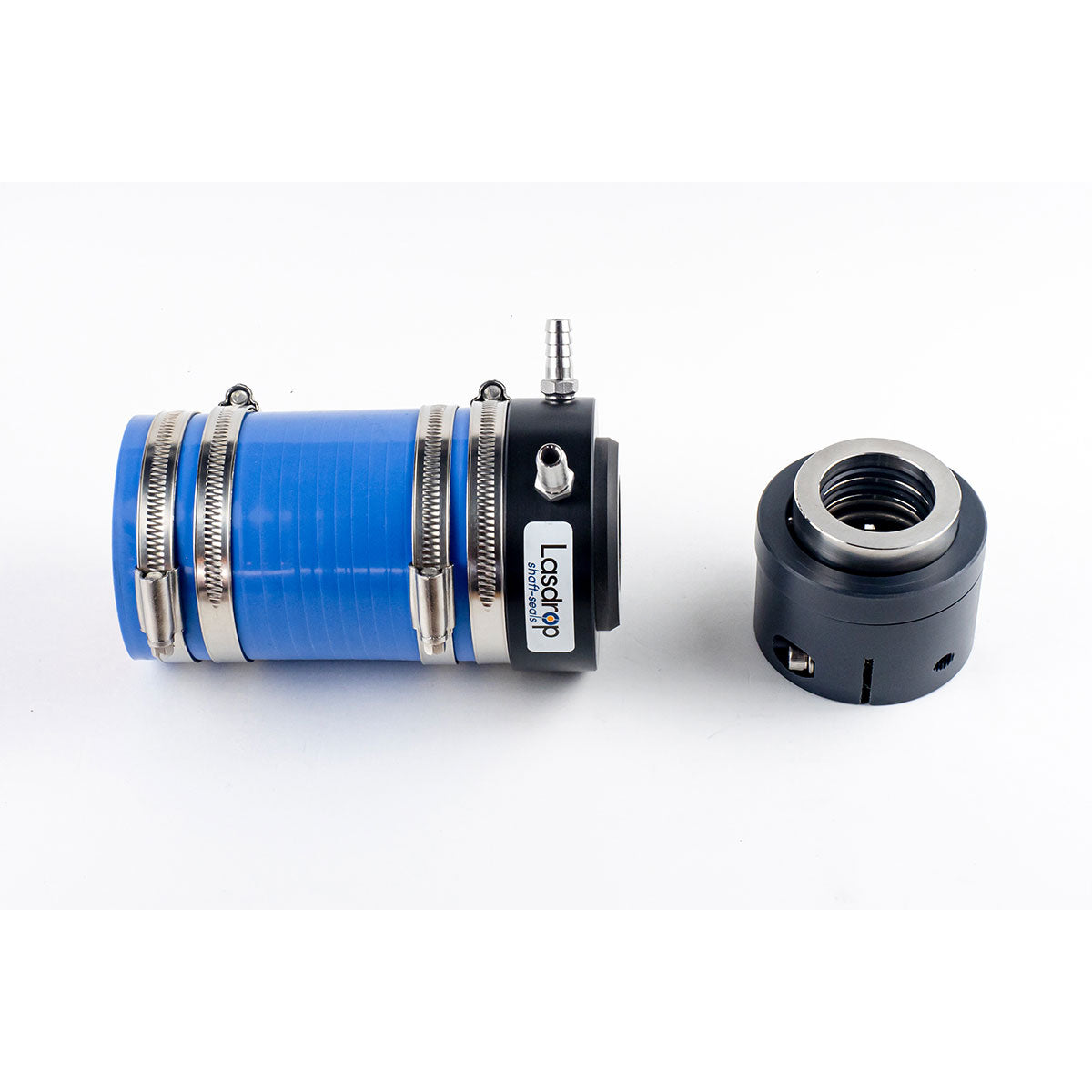

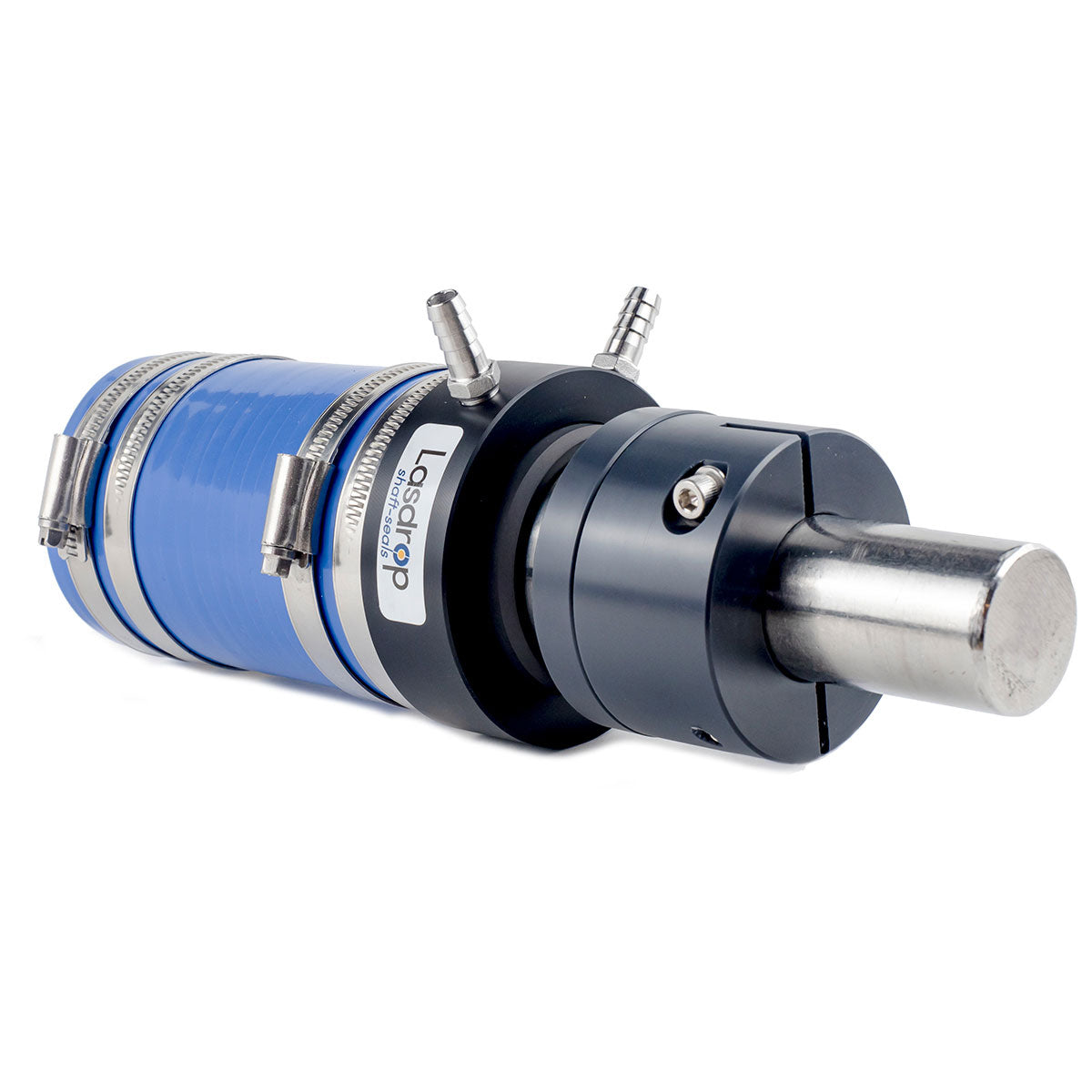

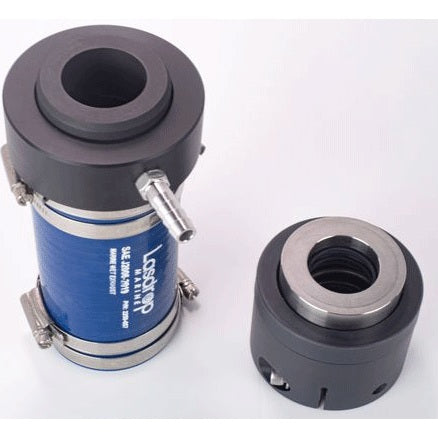

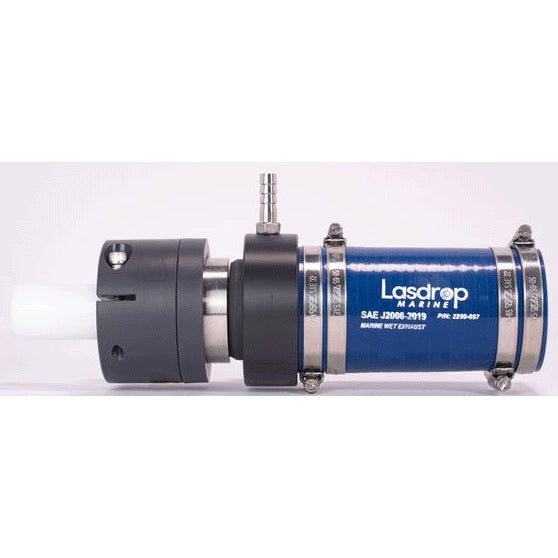

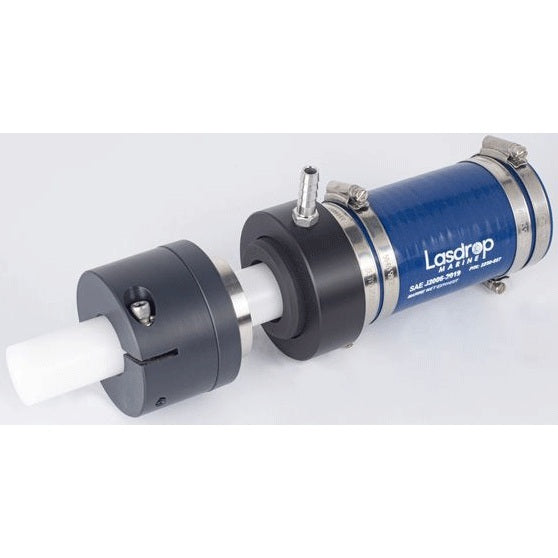

The Lasdrop Gen II Dripless Shaft Seal Metric offers exclusive features that make it the premier dripless shaft seal on the market.
- Size = Shaft Size
- Diameter = Stern Tube Diameter (A)
- Three year manufacturer warranty

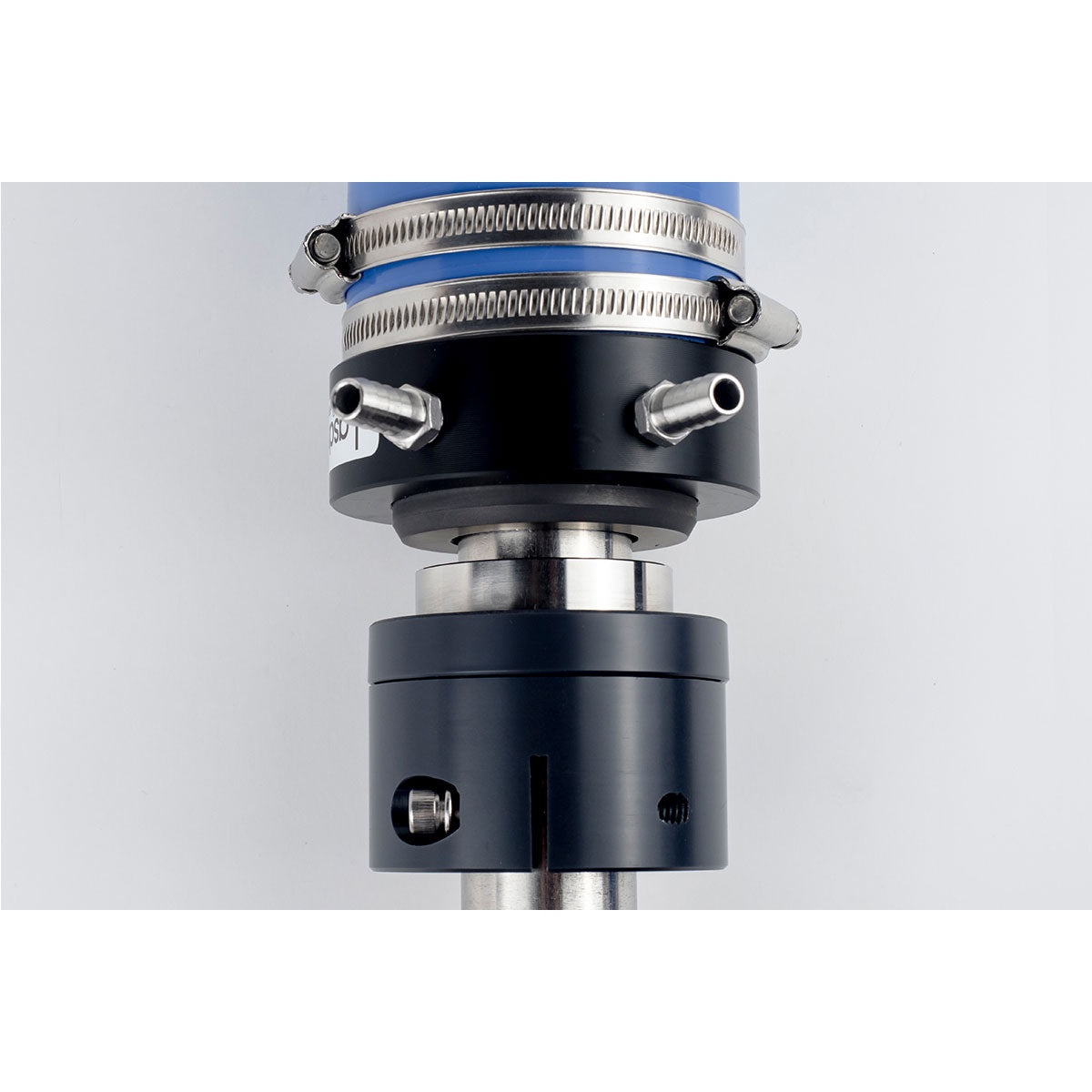

- Has dual injection ports* (for 1-1/8"+) and contains all necessary hardware
- No bellows to replace!

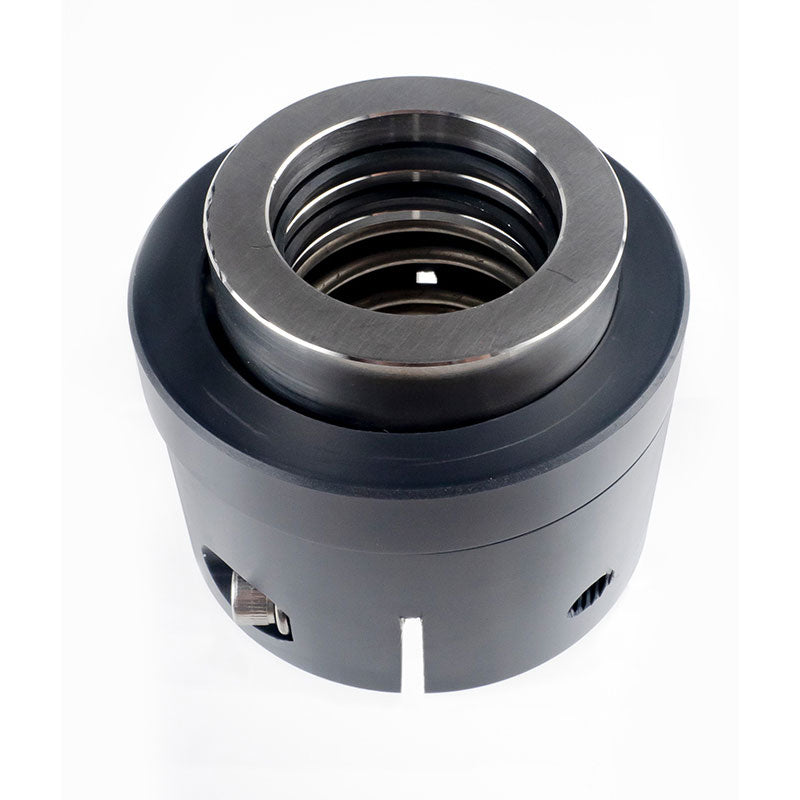

- Friction ring assembly uses carbon graphite sealing surface
- Cutlass bearing ensures proper alignment to the shaft
- Clamp and pressure assembly secures assembly around the shaft, preventing galling or damage to the shaft
- Seal ring floats on ball-bearing drive, maintaining complete contact with carbon seal surface
- Seal ring features a rubber/fiber ring that rotates with the shaft
- Made in the USA
- Optional water supply hose kit available
*For TWIN ENGINE INSTALLATION There will be 2 injection ports with all necessary hose and hardware provided in each kit.
*For SINGLE ENGINE INSTALLATIONThere also will be 2 injection ports but we will provide a plug in the kit to change over to single water injection. Seals under 1-1/8" will be fitted with a single port unless otherwise specified by the customer.
Custom sizes also available. Please call for quote.
The Lasdrop Gen II offers exclusive features that make it the premier shaft seal on the market. The culmination of more than a quarter century of experience in shaft seal design, the Lasdrop Gen II offers a unique ball-bearing drive system that allows the seal ring to "float" and remain in constant contact with the carbon graphite seal surface. The result is a seal that's impenetrable to water.
The Lasdrop Gen II uses a 316-marine grade stainless steel spring to provide pressure to the seal surfaces. Together, the spring and seal ring rotate along with the shaft, and remain secured in the Clamp/Pressure housing. Because there's virtually no metal-to-metal contact, you eliminate the risk of electrolysis.
The Lasdrop Gen II is available for shaft sizes 1-1/8" - 5," (30mm -127mm) accommodating stern tube sizes of up to 8" OD.
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Warrants product for a period of three 3 years from the date of original purchase, NSI products will be free from defects in materials and workmanship. If any product is used commercially, for such purposes as rental or other income-producing activities, than this warranty is limited to one 1 year from the date of original purchase. Return: Restocking charge will apply at a minimum of 25% for all product returned. All returns must be recevied within 30 days of receipt of items. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
