Description

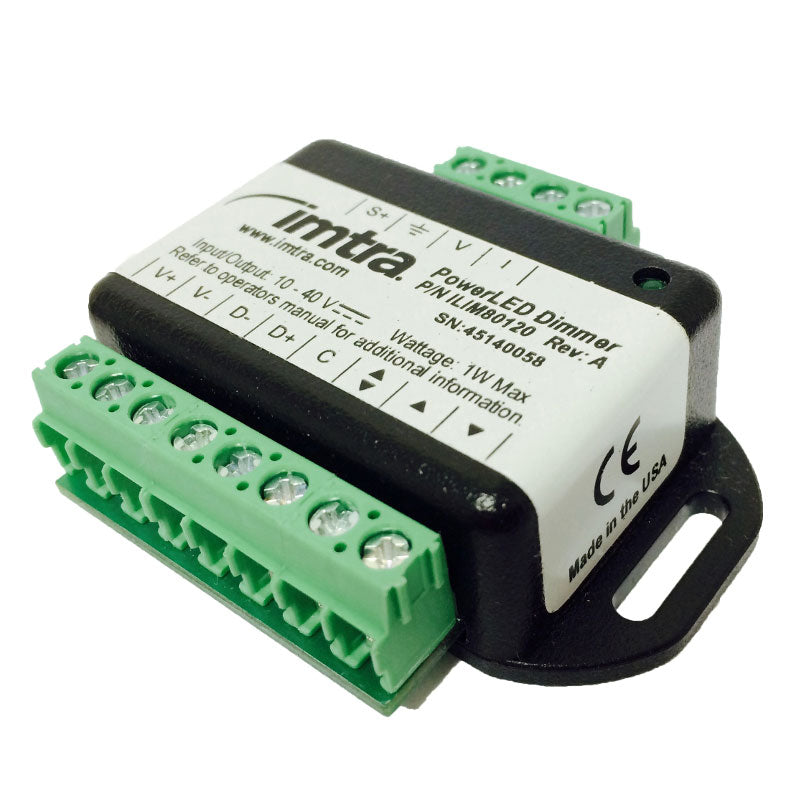

Universal LED Dimmer Module (analog/digital) accepts 4 & 5 wire input for Imtra's Power LED Down Lights on your boat. Universal Dimmer ILIM80120 controls up to 30 Units using 10-30 vdc.
- Digital PWM output compatible with all Imtra PowerLEDs (including Captiva)
- Analog output: 0-10V Sink, 0-10V Sink/Source, 4-20mA, and 10KO-100KO Potentiometer
- Space-saving compact design:
- 0.80" (20mm) H
- 2.66" (68mm) W
- 2.08" (53mm) Depth
- Easy to identify input/output wire terminals
- Works with Single or Double Throw Momentary Switches
- Dip switches for customized functions
- Housing Finish/MaterialBlack flame retardant ABS (UL94V-0)
- Certifications & Compliance: CE
- Class: Class III
- Dimmer Compatibility: 4/5-wire Imtra PowerLEDs (& Captiva)
- Dimmer Control Interface: Single or Double Throw NO Momentary Push-buttons (Multiple,
- wired in parallel)
- Dimensions: 0.80" (20mm) H x 2.66" (68mm) W x 2.08" (53mm) Depth
- Power Consumption: 1W Max
- Base Dimensions: 2.66" (68mm) x 2.08" (53mm)
- Ingress Protection: IP40
- Load Rating: 30 PowerLED fixtures (different wattages)
- Mounting Method: Screw-mount
