Description
Lenco's first series designed specifically for performance. Kit 15039-101 is a 12 volt trim tab set with 16" x 12" electro-polished tabs equipped with a thicker reinforced hinges for added quality and protection. Lenco Kit 15039-101 works best on boat 13' (4m) to 40' (12.2m) long. The blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4” (6.4 mm) diameter hinge pin.
- L" X W": 16" x 12"
- Boat Length: 20' - 36'
- Hinge Height: 2" (5.1 cm)

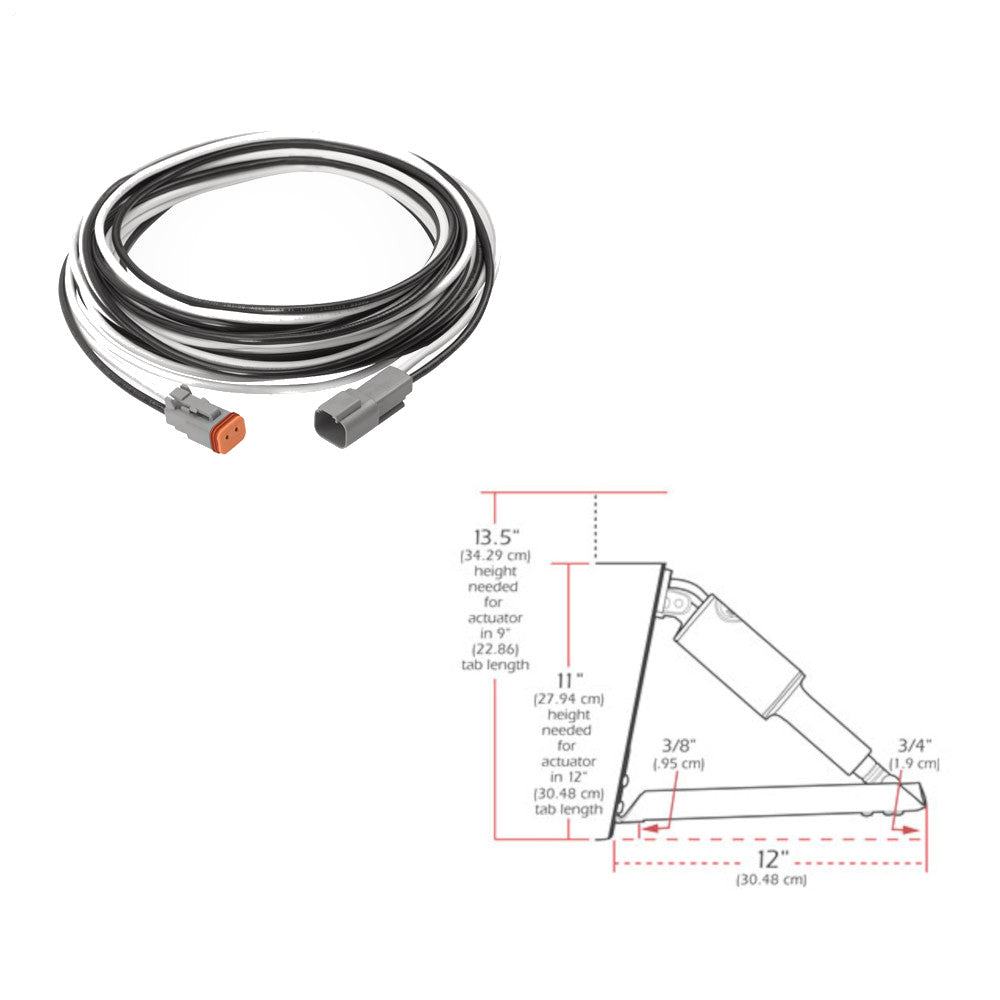

- Min.Transom Height: 11" (27.9 cm)

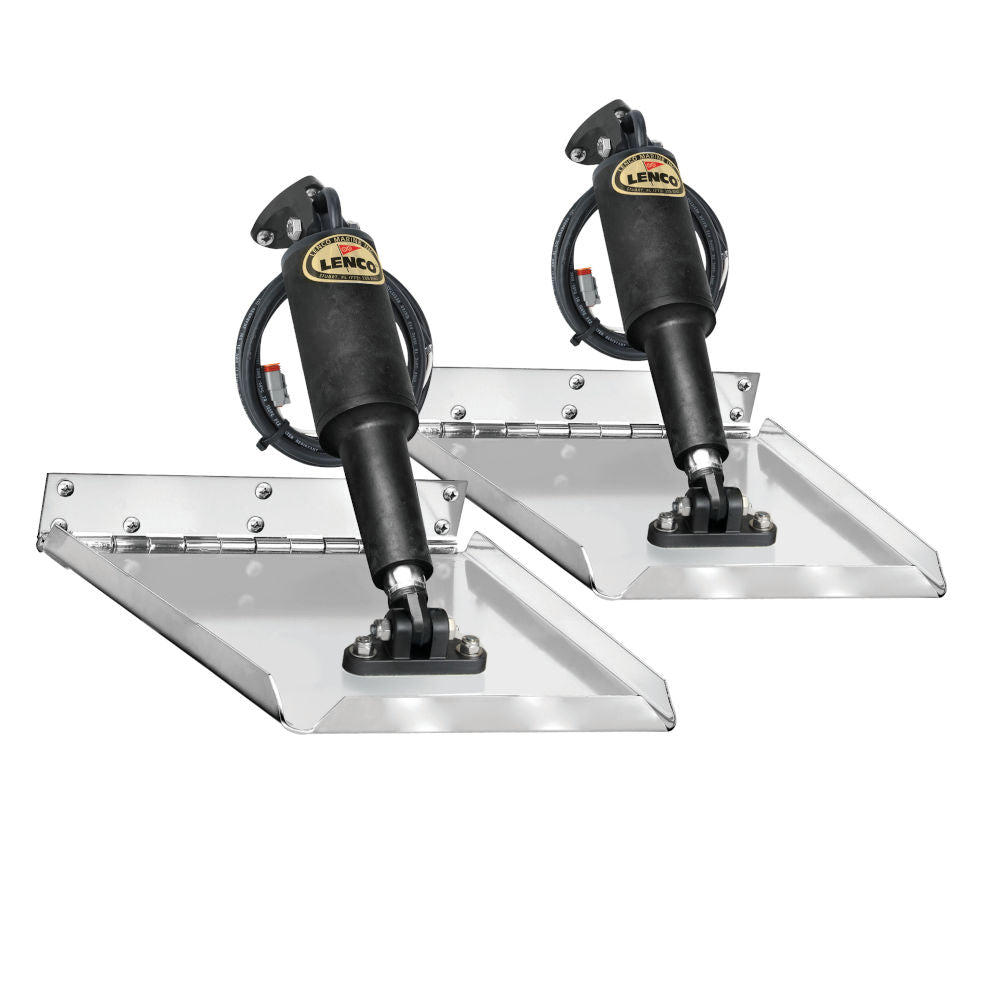

- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner's/installation manual
- Stainless steel mounting hardware
