Description

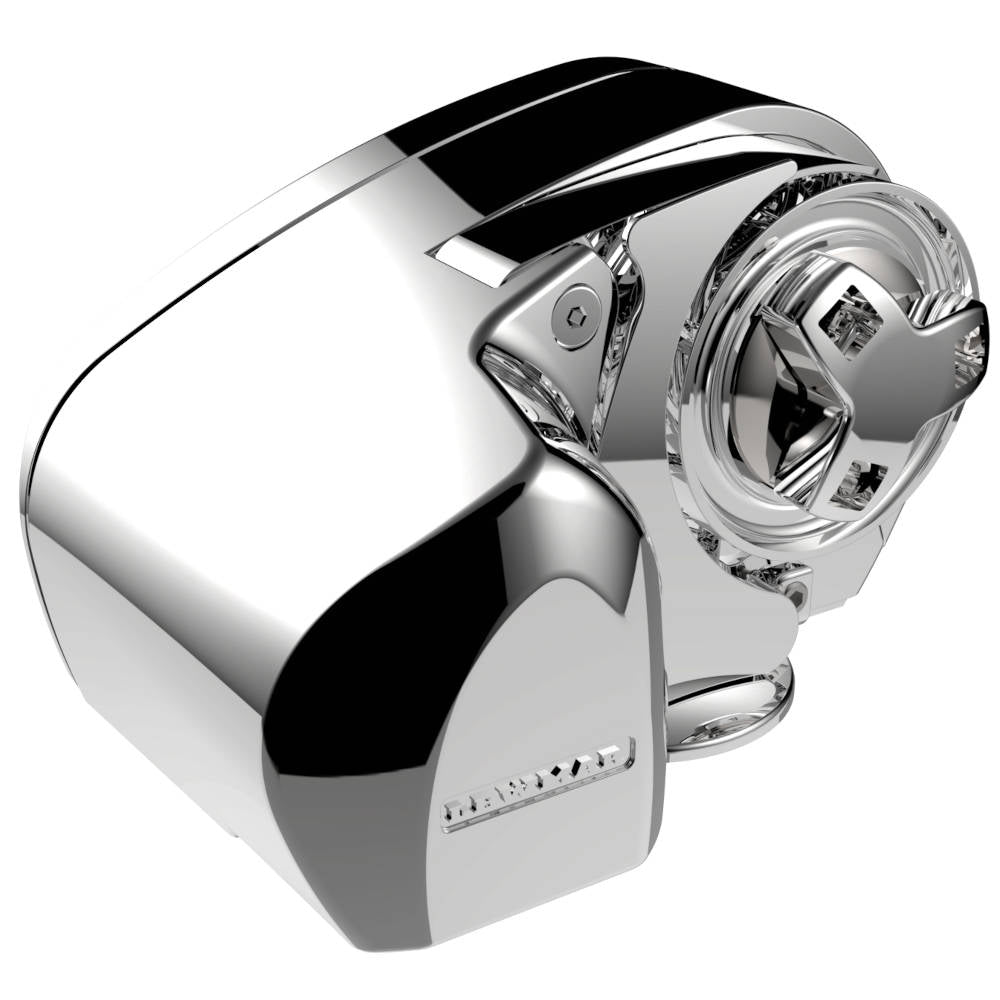

Lewmar Pro-Series Electric Anchor Windlass, Rope / Chain are simply the professionals' choice. Chosen by more boat builders than any other manufacturer, Lewmar's Pro-Series Windlass is efficient and reliable. The ProSeries of stainless steel windlasses are compact, gypsy only, rope & chain horizontal windlasses designed for reliable performance and easy installation. Incorporating a highly efficient spur gearbox, the ProSeries windlasses utilize smaller, but more powerful, permanent magnet motors with lower amp draw and smaller diameter wires than those required by series wound motors driving worm gearboxes. Overall, this makes for a lighter, less costly, and easier one-piece installation requiring no dis-assembly or motor alignment.
Windlass, Base Gasket Seal, Fast Mounting Studs, Installation Wrench, Toggle Switch, Circuit BreakerPro-Series Windlass Specification
- Pro-Series Windlass is efficient, reliable, and has fast line speeds
- Designed for easy installation
- For boats that are 20 to 45 feet
- 100% 316 Stainless Steel housing
- All in one installation tool included
- Unique fast mounting studs are included
- Built in Manual Recovery
Windlass, Base Gasket Seal, Fast Mounting Studs, Installation Wrench, Toggle Switch, Circuit BreakerPro-Series Windlass Specification
- Motor Power Option: 12V
- Typical Power Watts: 500 W
- Typical Max Pull: 320 kg, 700 lbs
- Maximum Line Speed: 32 m, 105 ft
- Working Load: 79 g, 175 lbs
- Normal Current Draw: 35A
- Typical Line Speed/min: 27 m, 88 ft
- Weight: 8.5 kg, 19 lbs
- Circuit Breaker: 50A
