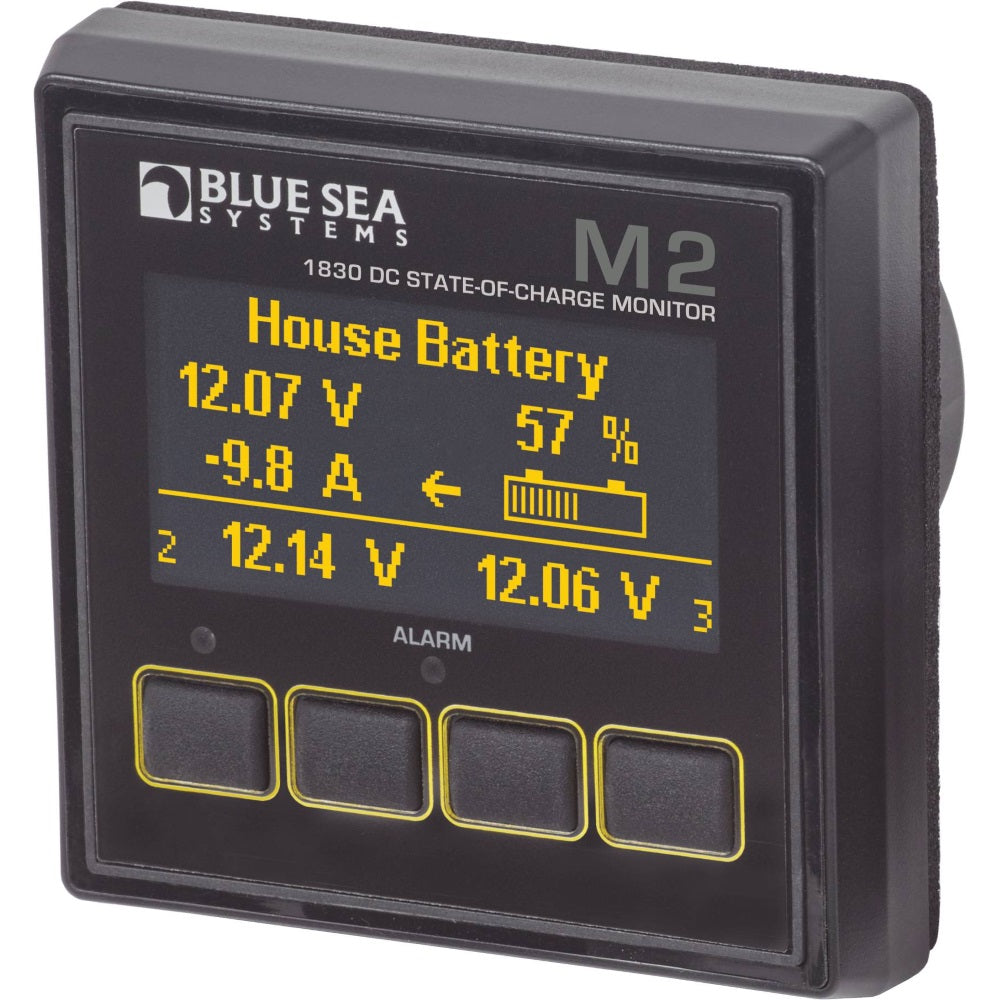

Description
- Accurately measures and monitors State-of-Charge of 1 bank
- Measures 3 voltages and 1 current
- Supports programmable shunt ratios
- External relay activation
| Specifications | |
|---|---|
| Meter | Current State-of-Charge Voltage |
| Function | 8 to 70V to 5000A |
| Maximum Voltage | 12V 24V 48V |
| Resolution | 0.01V DC |
| Input Voltage | 7-70V DC |
| Alarms | High Current High/Low Voltage Low Battery |
| Current Range | -500 to 500A |
| Display Size | 55mm x 28mm |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Voltage Accuracy | ± 1.0% |
| Weight | 4.00lb (1.81 kg) |
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers and P12 Remote Displays are warranted for a period of five years from the date of first purchase. Digital Meters and Vessel System Monitors are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Return: All returns must be received within 30 days of receipt of the order. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacturer Defects, Returns, and help with Warranties.
