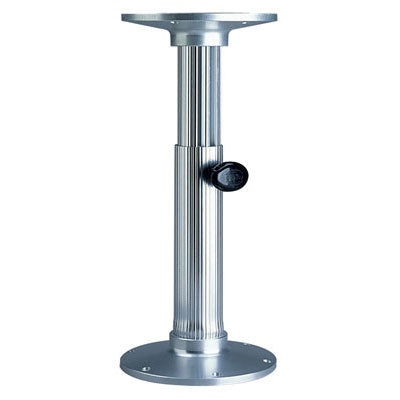

Manual Rise Adjustable Table Base - Smooth and Satin
This adjustable table base from Garelick easily converts dinettes to berths. The cast aluminum construction provides excellent marine corrosion resistance. A polished aluminum finish will spruce up any vessel. This table base pedestal is able to be adjusted from 15" up to 30".
Features:
- Converts dinettes to berths
- 9"(23cm) diameter cast aluminum base on each end for support
- 2.875" (7cm) smooth stanchion tube
- In lower position inside tube goes below deck 6" (15cm)
- Locks any height from 15" to 30"
- Polished Finish. Smooth. Tube protrudes 6" (15cm) below deck
Table Pedestal Mounting Instructions
- Locate a place for the mounting pedestal. Ensure there is an open 6" below the deck and no cables or reinforcement ribs are in the mounting area.
- Set the pedestal on the deck where it will be mounted. Unscrew the locking knob to allow the pedestal to slide. While holding down the inside tube assembly, slide the outside tube up in order to trace around the inside tube. While still holding the inside assembly, slide the outside tube assembly back down to the deck and mark the 6 mounting holes.
- Cut the center circle in deck. This hole is for the inner tube when the pedestal is in the lower position
- Drill the six mounting holes in the deck using the proper bit that is compatible with the selected fasteners. NOTE: Fasteners are not provided
- Place the pedestal on the deck and align the holes in the base with the holes in the deck. Check the pedestal for proper up and down travel
- Secure the pedestal to the boat deck. This area should be adequately reinforced. Use a backing plate if necessary to make a secure attachment. It is recommended that the fasteners go though both the deck and backing plate for best results.
Table Attachment Instructions
- Loosen, but do not remove, the locking knob in order to slide the inside tube out of the assembly.
- Mount the table to the top base using the appropriate fasteners
- Slide the inside tube back into the assembly. The lock block attached to the knob will need to be aligned with the track on the inside tube.
- Once inserted, secure the pedestal at the desired height using the tightening knob.
