Description

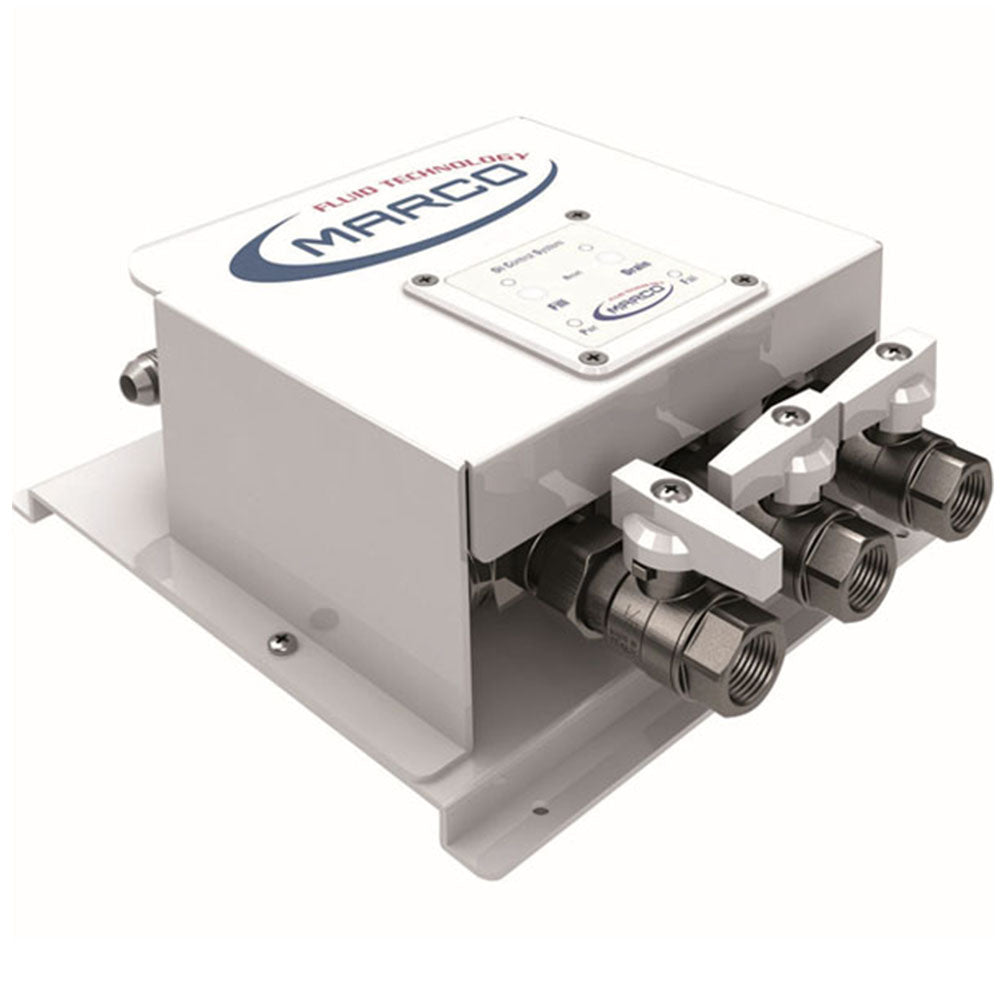

Marco OCS3/E 12/24V Electronic Oil Change System
p/n M16492415
Marco fixed mount oil change systems greatly simplify, speed up and prevent messes during routine oil changes. These compact units mount along bulkheads or catwalks to service fluids on engines, generators and transmissions.
Oil change system is controlled from one central location to both extract engine oils and lubricants then replenish by simply turning the appropriate valves. The pump adapts automatically to either 12V or 24V DC sources. Intelligent electronic control optimizes pump speed based on temperature and oil viscosity. Pump speed is optimized during the priming stage to initiate suction, then self calibrates depending on fluid viscosity.
The system automatically shuts off when the supply source runs empty. The unit also powers down after 30 minutes to prevent burnout.
Features
Automatic Detection 12 or 24 VDC
Electronic Pump Control
Fitting Size: 1/2 inch NPT
Adjust for Viscosity and Temperature
Auto speed up for priming
Automatic Shut Off if Empty or Fault
Compact Robust unit is all metal: cover and base are powder coated aluminum. Manifold, valves and pump head are brass.
Super compact footprint compared to market competitors.
Specifications
Flow Rate: 2.6 gpm
Volts: 12/24V
Dimensions: 8.5 x 11 x 4.5
Fitting Size: 1/2"
p/n M16492415
Marco fixed mount oil change systems greatly simplify, speed up and prevent messes during routine oil changes. These compact units mount along bulkheads or catwalks to service fluids on engines, generators and transmissions.
Oil change system is controlled from one central location to both extract engine oils and lubricants then replenish by simply turning the appropriate valves. The pump adapts automatically to either 12V or 24V DC sources. Intelligent electronic control optimizes pump speed based on temperature and oil viscosity. Pump speed is optimized during the priming stage to initiate suction, then self calibrates depending on fluid viscosity.
The system automatically shuts off when the supply source runs empty. The unit also powers down after 30 minutes to prevent burnout.
