Description
Provides a boat with 50A 125/250V power from two 30A/125V locking receptacles. Separate mechanical relays that will not permit power to energize second plug, offering protection from the exposed blades. Female with sealing collar. 5 year warranty.

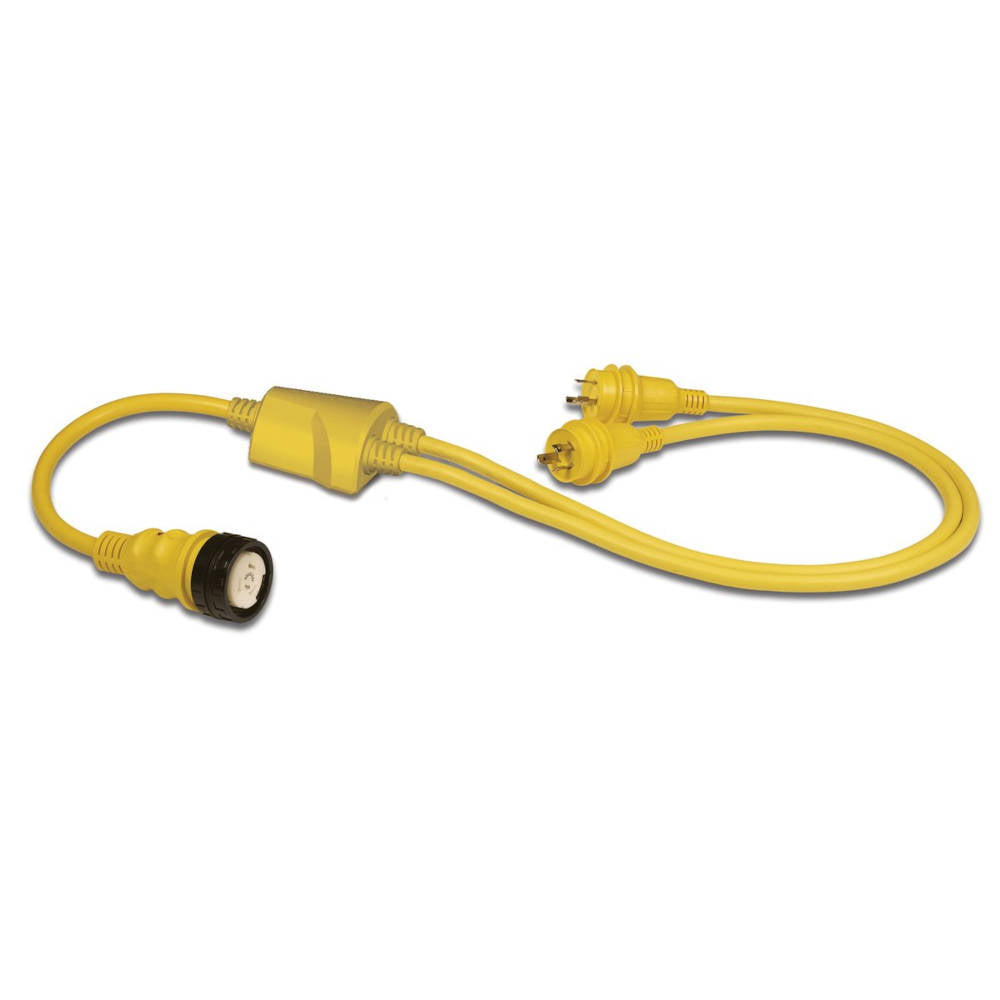

The Reverse "Y" Adapter (RY504-2-30) has two male plugs with special power isolation circuitry for added safety. When one plug is connected to areceptacle, the circuitry isolates the second plug. The reverse "Y" provides 50A 125/250V power when only 30A 125V receptacles are available.Note: Reverse "Y" will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dockside receptacleslimit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250Vbetween them for proper operation.
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Seller warrants to the original purchaser that the Product covered by this Limited Warranty will remain free from defects in workmanship or material under normal commercial use and service for a period of one year from the date of shipment to the original Purchaser. Return: All returns must be recevied within 30 days of receipt of the order. Manufacturer defects reported within 30 days of receipt will be supplied a pre-paid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns and help with Warranties.
