Description

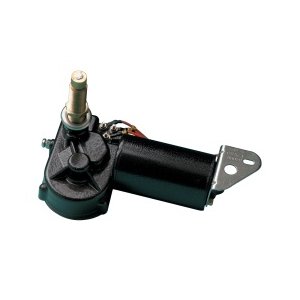

The Marinco MRV Series, 2-speed Wiper Motor easily powers a 22" deluxe arm / blade combination, or a 20" arm / blade combination at sweeps of 80 Deg. or less, or 110 Deg. or less, depending on model. (arms and blades sold separately).
- Length = Length of Shaft
- Factory pre-set sweep of 80 Deg. or 110 Deg. , adjustable to 45 Deg. , 60 Deg. , 80 Deg. , or 110 Deg.
- 5/8" (.625") diameter shaft (16mm)
- Corrosion-resistant casing
- Heavy-duty motor with right angle drive
- Two-speed motor, can be operated as one speed
- Solid brass knurled drive nut with brass and stainless steel drive shaft
- Adjustable right or left self parking, coast to park
- Includes 5 amp fuse and holder
- Stainless steel fasteners and mounting bracket
- Use with three-position switch (not included)
- Compact Size: 7-5/8" x 4" x 2"
- Stall torque: 109 in-lbs (125 kgf/cm: 12.3Nm)
- Stall Current: 11.5 - 13.0 amps
- No load current: 0.5 - 1.2 amps
