Description

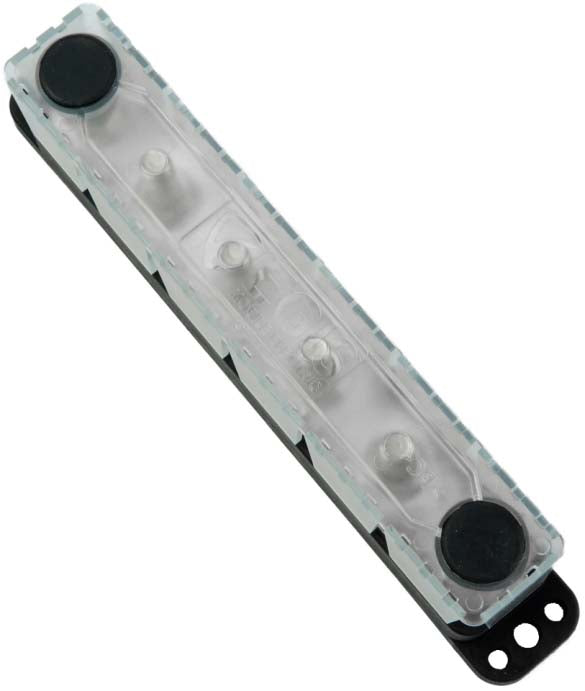

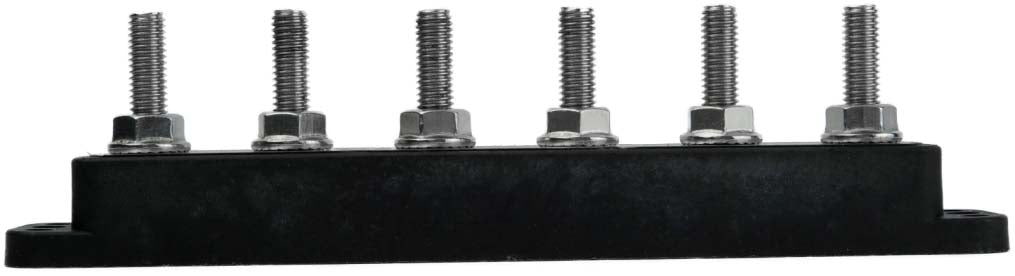

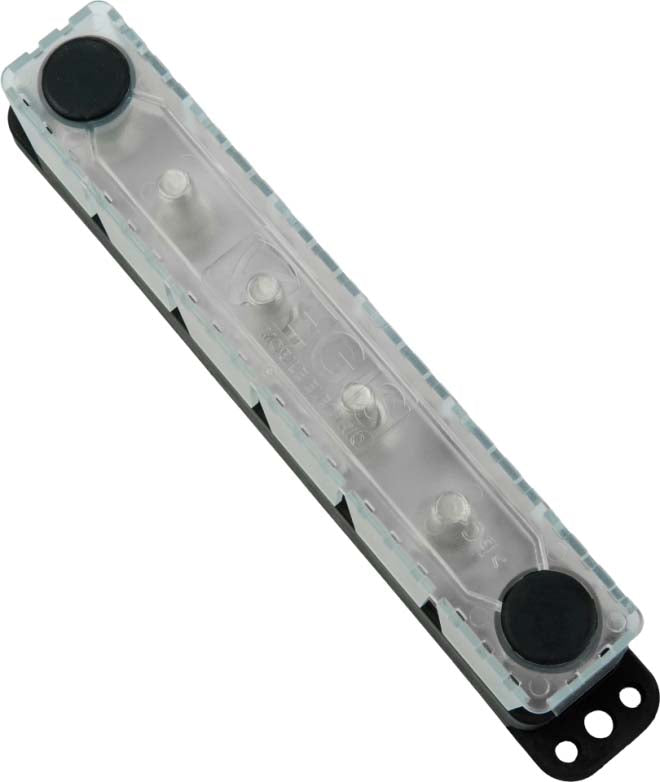

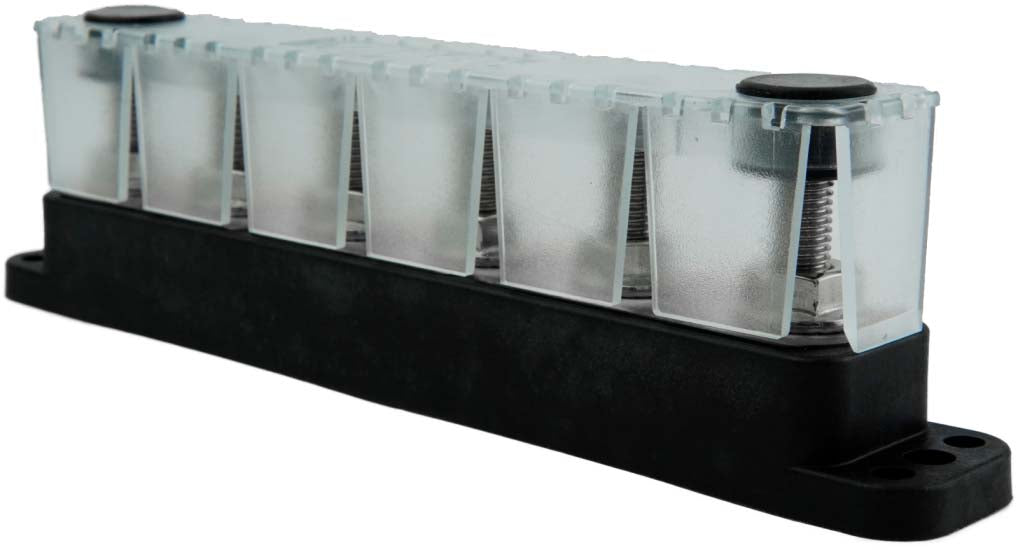

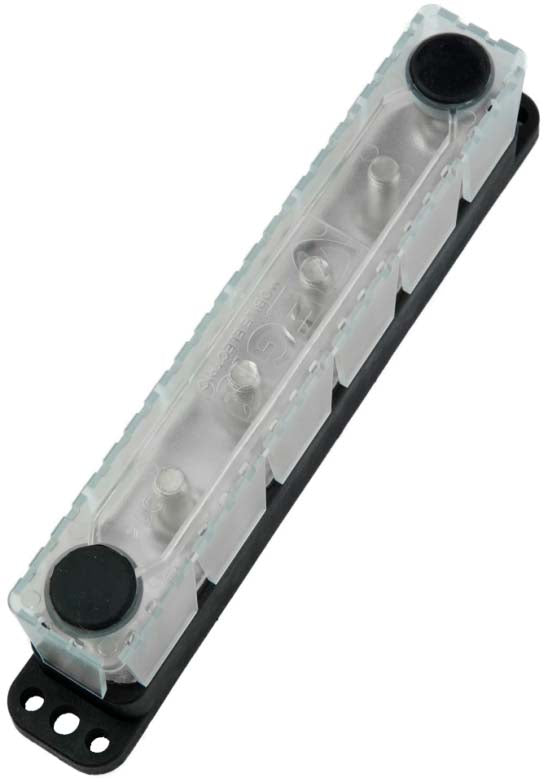

6-Stud Design allows for a wide range of outputs to be distributed from a single busbar.
Compact Footprint allows for installation in areas where space is limited.

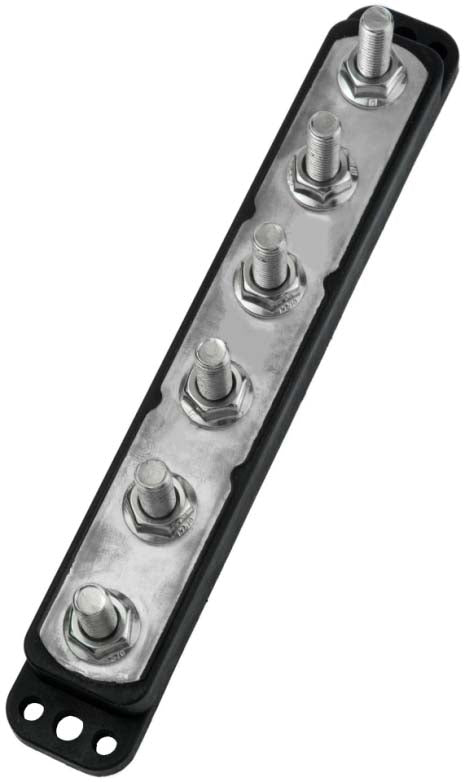

Tin Plated Copper Busbar delivers superior electrical performance with minimal voltage drop.
Stainless-Steel Self-Locking Hardware ensures robust connections & long term connection reliability.
Bullet Proof Construction from glass-filled nylon delivers highest longevity in demanding environments.
Secure Stud-Based Connections allows multiple devices to share a common power source.
4 Year Warranty: We stand behind our product's ability to meet your needs.
CONTINUOUS CURRENT (AMPS) : 250
MAX VOLTAGE (VDC): 80
BASE MATERIAL: Nylon 6 30% Glass-Filled
BUSBAR MATERIAL: Tin-Plated Copper
COVER MATERIAL: Clear Polycarbonate
MOUNTING HOLES: 4X #10 (M5) & 2X ¼” (M6)
