Description
Add-A-Battery 65amp Kit includes an ignition protected dual circuit Blue Seas m-Series battery switch and a 12/24v Automatic Charging Relay (ACR) rated for use with alternators up to 65 amperes. These components simplify switching and automate charging, so that all you have to do is turn the battery switch ON when you arrive and OFF when you leave.
Dual Circuit Plus Battery Switch simplifies switching
- Isolates engine and house circuits
- Combines batteries for emergency starting
- Make-before-break contact design allows switching without power interruption
- Ignition protected Ñ safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Tin-plated copper studs for maximum conductivity and corrosion resistance
ACR Automatic Charging Relay
- Automatically combines batteries during charging
- Isolates batteries during engine cranking and when not charging
- Shares the charge between two batteries more efficiently than a battery isolator
- Allows efficient dual battery charging without needing regulator adjustment or rewiring
Read our article on step-by-step instructions on how to use the Add-a-Battery

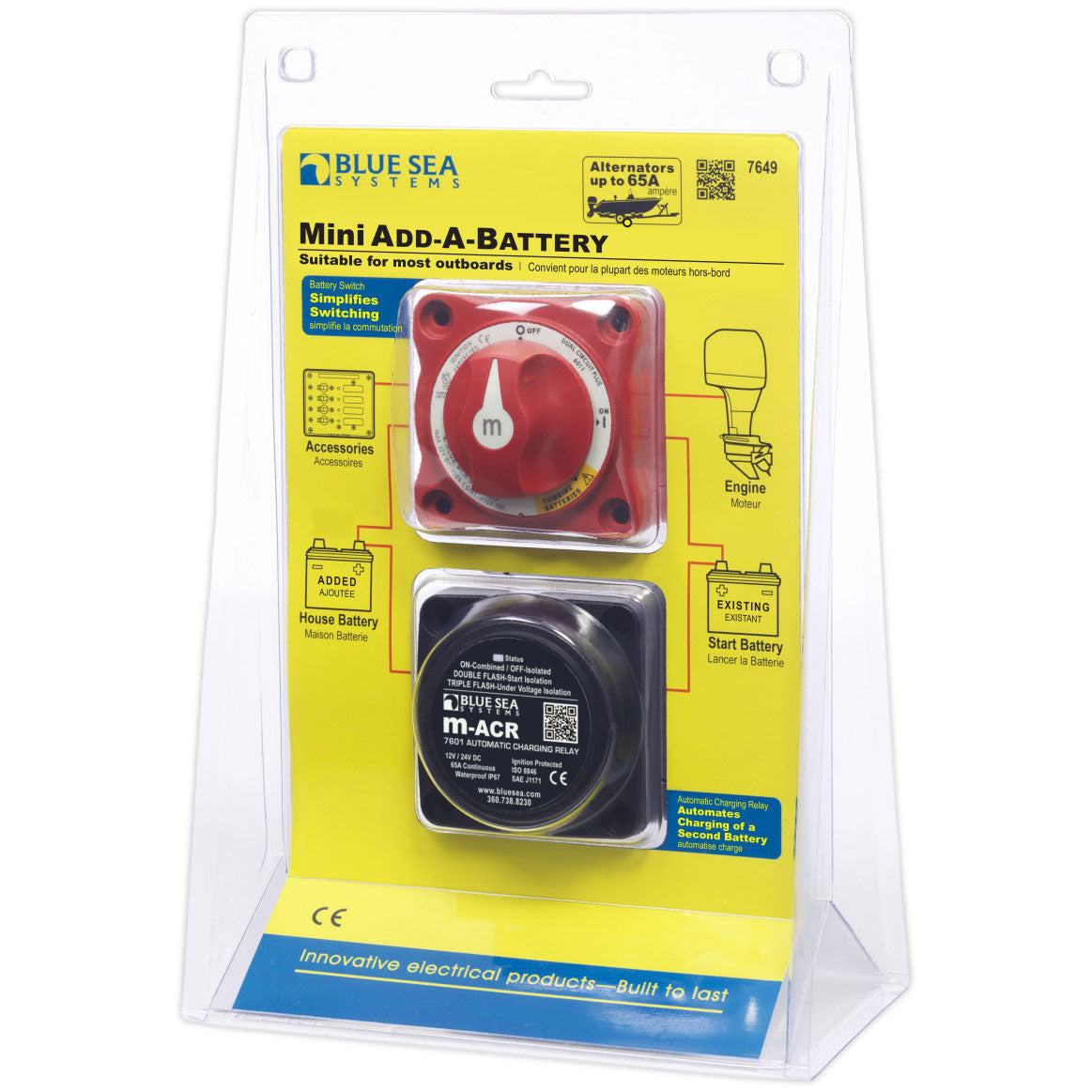

Mini Add-A-Battery - 65A. Don't get stranded - Add a Battery! Adding a second battery to the electrical system prevents the unintended discharge of the engine start battery. Blue Sea Systems smaller, more compact version of the popular Add-A-Battery kit to its product offering was primarily designed for outboard powered boats with alternator output of 65A or less. When installed, the Mini Add-A-Battery isolates the start battery from the house loads which prevents the discharge of the start battery. The Mini Add-A-Battery offers a simple way to control the charging and battery switching of two battery banks. The M-Series Dual Circuit Plus Battery Switch simplifies the switching while the M-ACR automates charging between two batteries. Included: 1 m-Series Automatic Charging Relay - 12/24V DC 65A and 1 m-Series Mini Dual Circuit Plus Battery Switch - Red.Blue sea 7649(PDF)
Additional Information
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov
Warranty: Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 Battery Chargers and P12 Remote Displays are warranted for a period of five years from the date of first purchase. Digital Meters and Vessel System Monitors are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labor required to replace any defective product. Returns: All returns must be received within 30 days of receipt of the order. Manufacturer defects reported within 30 days of receipt will be supplied a prepaid label for return shipping upon approval. Please contact us for Manufacture Defects, Returns, and help with Warranties.
