Description

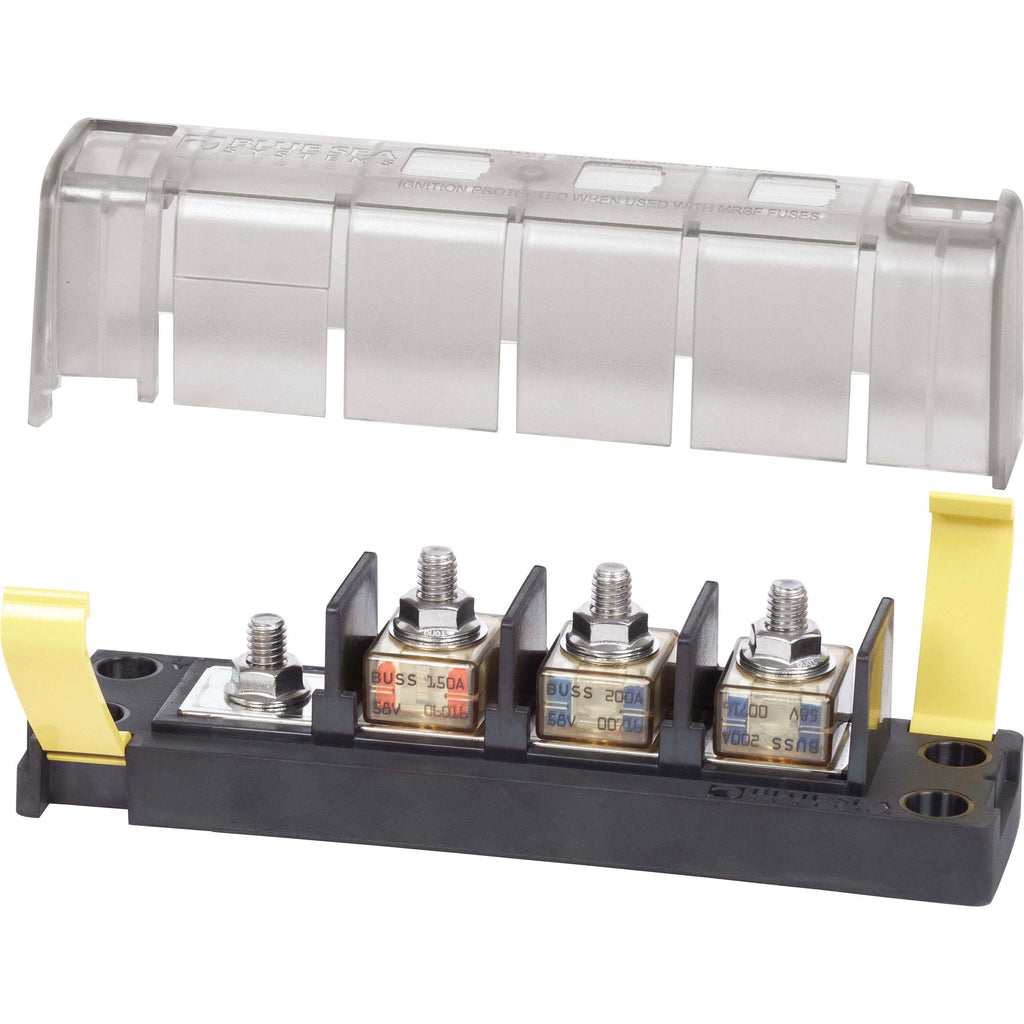

- Safely provides power to three loads from a single source
- Clip-on insulating cover satisfies ABYC/USCG insulation requirements
- Versatile wiring options allow all wires to come out a single side
- Label recesses accommodate Blue Sea Systems square format labels for easy circuit identification
- One-piece stainless flange nuts ensure safe, secure connections
- Fuses sold separately
| Specifications | |
|---|---|
| Ignition Protected | Yes |
| Maximum Amperage | 300A per block 240A per circuit |
| Maximum Voltage | 58V DC |
| Mounting | Surface Mount M5 (#10) |
| Maximum Torque | 100 in-lb (11.3 Nm) |
| Terminal Stud Size | M8 (5/16"-18) |
| Weight | 1.20lb (0.54 kg) |
