Description
• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
• Ignition Protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 58 Vdc Rating: Easily supports 12 to 48V nominal applications.
• High Interrupt Current: Safely protects circuits connected to large, paralleled battery banks with significant available power.
• 4 Year Warranty: We stand behind our product's ability to meet your needs.

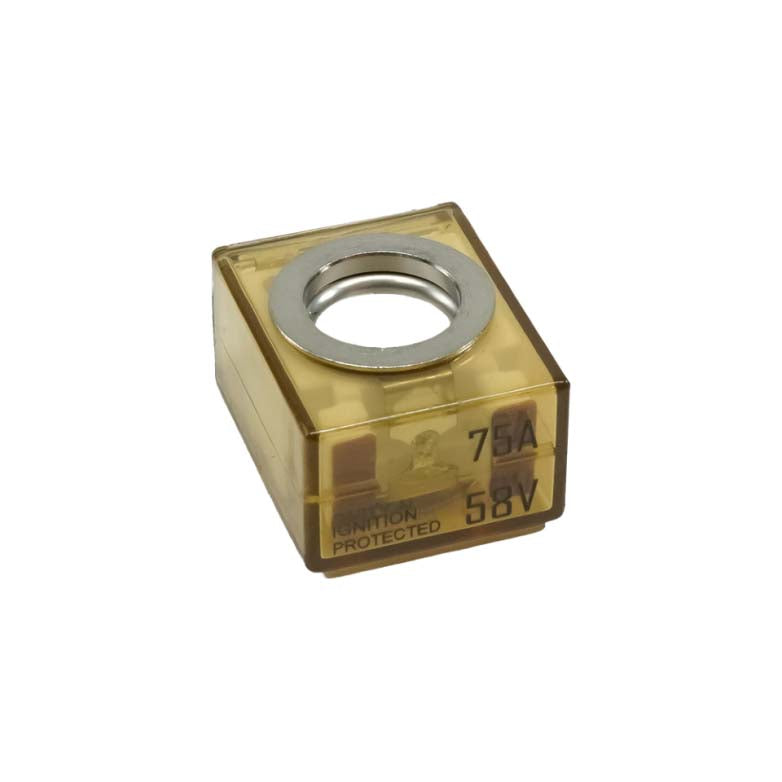

CONTINUOUS CURRENT (AMPS) : 75
MAX VOLTAGE (VDC) : 58
INTERRUPT RATING @ 14 VDC (AMPS) : 10,000
INTERRUPT RATING @ 48 VDC (AMPS) : 5,000
INTERRUPT RATING @ 58 VDC (AMPS) : 2,000
INGRESS PROTECTION : IP66
