Newport Ports - 512 Self Drain Ports, 7-3/4" x 14-5/8" Overall
Newport Ports - 512 Self Drain Ports, 7-3/4" x 14-5/8" Overall
Roll over image to zoom in Click on image to zoom
Newport Ports - 512 Self Drain Ports, 7-3/4" x 14-5/8" OverallNewport Ports - 512 Self Drain Ports, 7-3/4" x 14-5/8" Overall

Newport Ports - 512 Self Drain Ports, 7-3/4" x 14-5/8" Overall

Beckson MarineSKU: 543436-WHT-1in-SLFDRN
MPN: PO512WC-10 | Catalog No: BECPO512WC10
In Stock - Ships out in 1 Business Day
Description: Self Drain | Rim Color: White | Spigot Length: 1" | Lens OD: 5-11/16" x 13" | Screen OD: 5-3/16" x 12-7/16" | Outside Frame Dimension: 7-3/4" x 14-5/8" | Spigot Hole Cut Size: 5-1/2" x 12-1/2"
Color: White
Length: 1"
Type: Self Drain
Price:
$215.97

Description

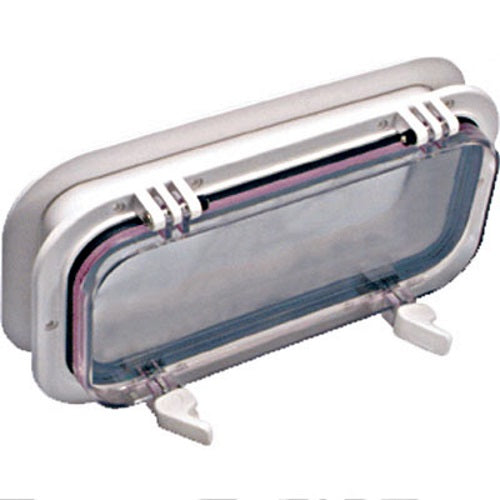

    Newport 512 Opening Ports are styled to match modern boats. Beckson Newport Ports feature fitted screens, exterior trim rings and superior water drainage design.

  • Corrosion resistant
  • Help eliminate condensation and leaks (no waterfall when you open the port


    • All Beckson Self Drain Ports
  • Promote drainage without the hassle of making angled cuts in the hull
  • Allow thru-bolting that is impossible with ports where an angled spigot extends below the bolt holes
  • Internal angle seats tightly against the gasket and lens eliminating the exterior water retention ledge present in most other ports (No water-fall effect upon opening the port after a rain!)

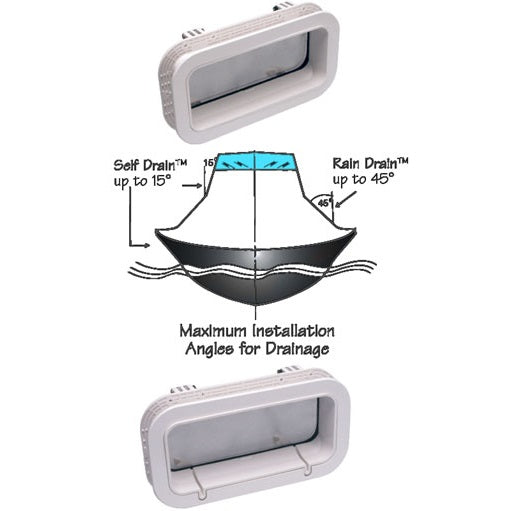

    Self Drain Opening Ports are ideal for mounting where installation is within 15° of vertical (with spigot length up to one inch).
