Description
Technical Specifications
- Port Connection (inch): 0.375
- Hose I.D. (inch): 0.3125
- Style: Crimp, Marine Tube
- Disclaimer: The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. Refer to Fluid Connectors Safety Guide.
- Port Size: 0.375 inch
- Hose Inside Diameter: 0.3125 inch
- Connection Thread Size: 9/16-24 inch
- Connection Type: Specialty
- Shape: Straight
- Length: 1.7 inch
- Materials of Construction: Brass
- Product Style: Crimp, Marine Tube
Item Information

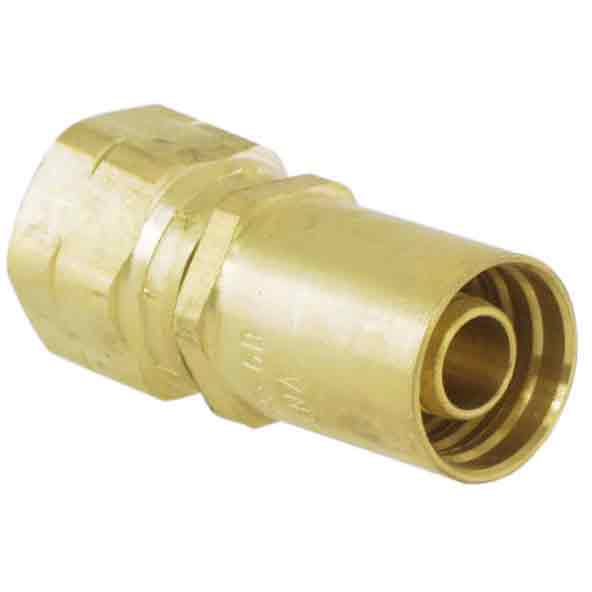

Parker MS series brass hose fittings, designed for use in hydraulic marine steering applications, are available in both permanent crimp and field attachable constructions for corrosion resistance in fresh water and salt water environments. They are qualified for use with Parker MSH (Marine Steering Hose) and available in both 5/16” (-5) and 3/8” (-6) sizes. When connected to the commonly used brass adapters, galvanic corrosion is also minimized with the brass MS series hose fittings.
Markets:
• Marine
Features/Benefits:
• Parkalign® dies
Applications:
• Hydraulic marine steering systems
- Outboard motors
