Description
Technical Specifications
- Heater: None

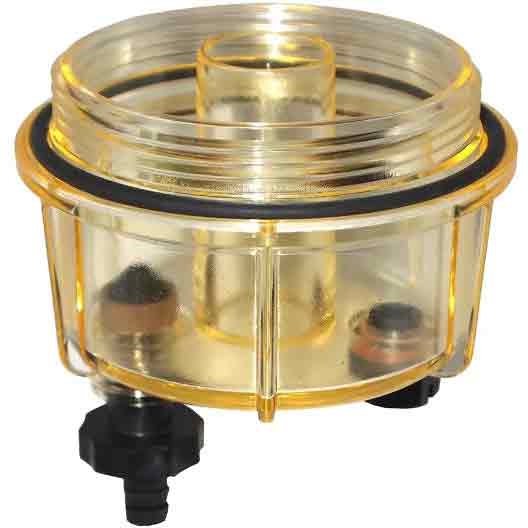

- Part Type: Clear Bowl
- Water Sensor Option: Plugged 1/2"-20 SAE Port
- Drain: Self-Venting Drain
- Kit Type: 320 Series Plastic Bowl with Center Sump
- Product Series: 320
- Materials of Construction: Plastic
Item Information
Racor replacement plastic and metal bowls come in several designs depending on the filter series. Some bowl types are also available with resistance heaters for cold starting. A bowl removal wrench is available for most Racor bowls.
Water in Fuel sensors are available in three versions and
colors. The version chosen depends on the equipment’s
Electronic Control Module (ECM) requirements; 83K ohms (blue
body) or 220K ohms (black body). For applications not
requiring this match, the nonresistor version (green body)
should be used. Water probes are passive sensors that work only in conjunction with active electronic detection amplifiers.
